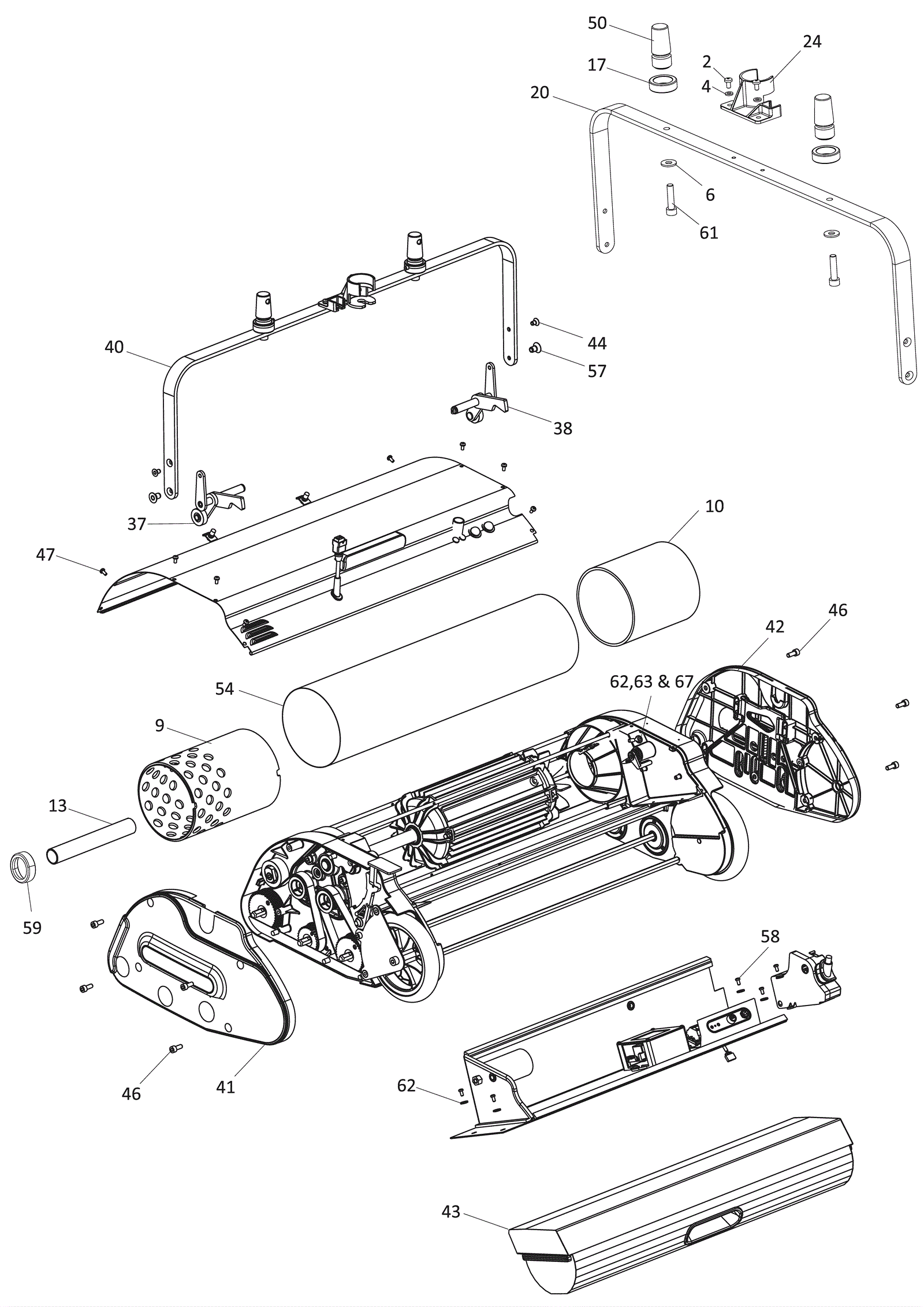

TRIO 25 Chassis Assembly-1

#PartDescriptionPriceReqNotesAvailability
2 251-1147 Screw $1.54 2 usually ships 11-16 days
4 251-2217 Washer $1.10 2 usually ships 11-16 days
6 251-2200 Washer $2.20 2 usually ships 11-16 days
9 251-1180 Front motor spacer $358.22 1 usually ships 11-16 days
10 251-1181 Rear motor spacer $174.52 1 usually ships 11-16 days
13 251-1182 Dust protection pipe $33.07 1 usually ships 11-16 days
17 251-2199 Handle spacer $5.50 2 usually ships 11-16 days
20 251-1183 Lower handle Call for price 1 usually ships 11-16 days
24 251-2197 Cable clamp $9.16 1 usually ships 11-16 days
37 251-2139 Left hand lever assembly $182.91 1 usually ships 11-16 days
38 251-2132 Right hand lever assembly $182.91 1 usually ships 11-16 days
40 251-1184 Lower handle assembly $707.25 1 usually ships 11-16 days
41 251-2123 Drive cover assembly $250.31 1 usually ships 11-16 days
42 251-2156 Idle cover assembly $238.34 1 usually ships 11-16 days
43 251-1185 Collection tank assembly $458.43 1 usually ships 11-16 days
44 999-1590 Screw M6-1 x 10mm socket head zinc $0.99 2 ships same day
46 999-1647 Screw M6-1 x 16mm socket head stainless steel $0.99 15 ships same day
47 999-1556 Screw M4-.7 x 8mm pan head phillips zinc plated $0.99 6 ships same day
50 251-2198 Bottom handle connector $48.50 2 usually ships 11-16 days
54 251-1186 Air guide $53.19 1 usually ships 11-16 days
57 999-1647 Screw M6-1 x 16mm socket head stainless steel $0.99 4 ships same day
58 251-2067 Screw $1.10 5 usually ships 11-16 days
59 251-2251 Protection cap $9.16 1 usually ships 11-16 days
61 251-2201 Screw $6.88 2 usually ships 11-16 days
62 251-2189 Washer $1.10 7 usually ships 11-16 days
63 999-9101 Screw M4-.7 x 10mm pan head stainless steel $0.99 1 ships same day
67 251-2254 Washer $0.99 1 usually ships 11-16 days
