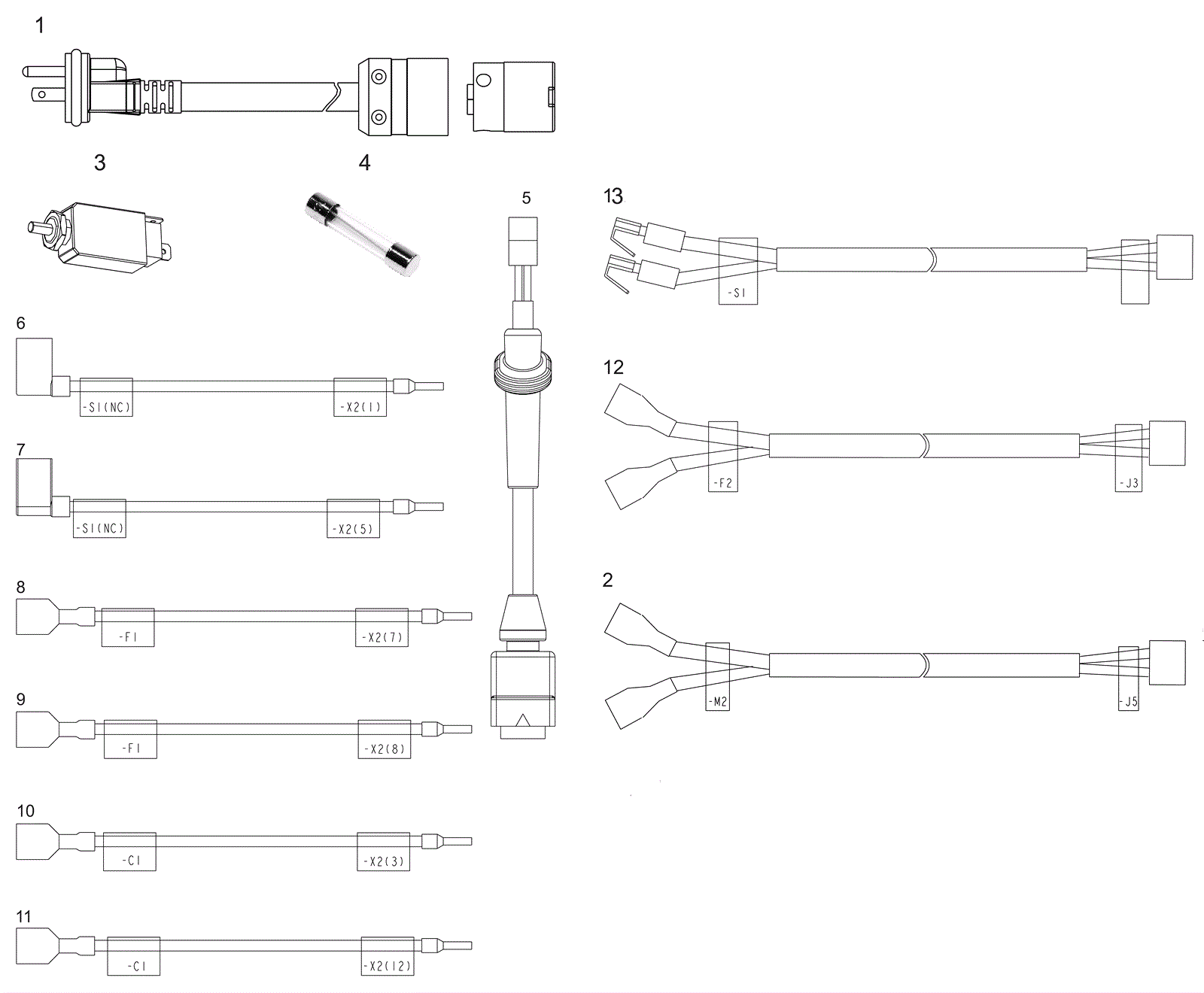

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
251-2223
|
Power cord assembly |
1 |
|
|
2 |
251-1134
|
Cable assembly (J5 to M2) |
1 |
|
|
3 |
251-2175
|
16amp circuit breaker |
1 |
|
|
4 |
251-2188
|
Fuse |
1 |
|
|
5 |
251-1135
|
Cable assembly |
1 |
|
|
6 |
251-1136
|
Cable assembly (S1-NC to X2-1) |
1 |
|
|
7 |
251-1137
|
Cable assembly (S1-NC to X2-5) |
1 |
|
|
8 |
251-1138
|
Cable assembly (X2-7 to F1) |
1 |
|
|
9 |
251-1139
|
Cable assembly (F1 to X2-8) |
1 |
|
|
10 |
251-1140
|
Cable assembly (C1 to X2-3) |
1 |
|
|
11 |
251-1141
|
Cable assembly (X2-12 to C1) |
1 |
|
|
12 |
251-2266
|
Ergo tank |
1 |
|
|
