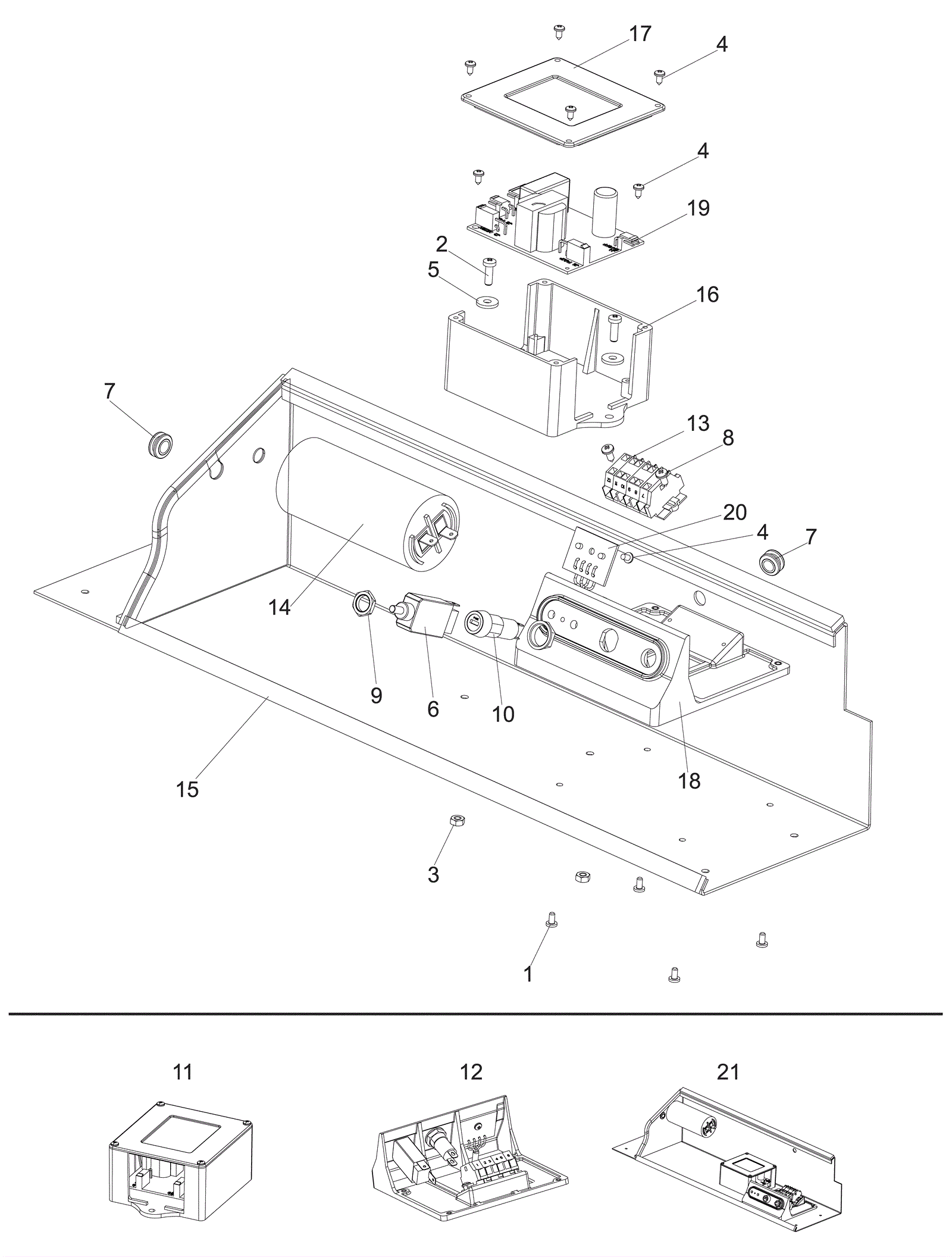

TRIO 20 Electrical Tray Assembly

#PartDescriptionPriceReqNotesAvailability
1 251-2128 Screw M3 x 6mm $1.10 4 usually ships 14-19 days
2 999-9101 Screw M4-.7 x 10mm pan head stainless steel $0.99 2 ships same day
3 251-2160 Nut $1.10 2 usually ships 14-19 days
4 251-2190 Screw $1.10 7 usually ships 14-19 days
5 251-2189 Washer $1.17 2 usually ships 14-19 days
6 251-2175 16amp circuit breaker $51.44 1 usually ships 14-19 days
7 251-2171 Grommet $2.20 2 usually ships 14-19 days
8 251-2133 Screw $1.10 2 ships same day
9 251-2174 Circuit breaker nut $2.31 1 usually ships 14-19 days
10 251-2176 Fuse holder $27.96 1 usually ships 14-19 days
11 251-2192 Control panel assembly $412.50 1 (Includes 2, 4-5, 16-17 and 19) usually ships 14-19 days
12 251-2264 Electrical mounting bracket $144.86 1 (Includes 1, 3-4, 6-10, 13-15 and 18) usually ships 14-19 days
13 251-2170 Terminal block $23.01 1 ships same day
14 251-2177 Capacitor $95.90 1 usually ships 14-19 days
15 251-2173 Electrical tray (OBSOLETE) $229.16 1 (only available with 21) usually ships 14-19 days
16 251-2169 Control panel housing $14.66 1 usually ships 14-19 days
17 251-2168 Control panel top housing $6.41 1 usually ships 14-19 days
18 251-2265 Electrical bracket $28.41 1 usually ships 14-19 days
19 251-2249 PCB control panel $248.00 1 usually ships 14-19 days
20 251-2272 PCB indicator $36.74 1 usually ships 14-19 days
21 251-2184 Electrical tray assembly $780.73 1 (Includes 1-20) usually ships 14-19 days
N/S 251-2191 Mounting bracket assembly (OBSOLETE) $144.84 1 (only available with 21) usually ships 14-19 days
