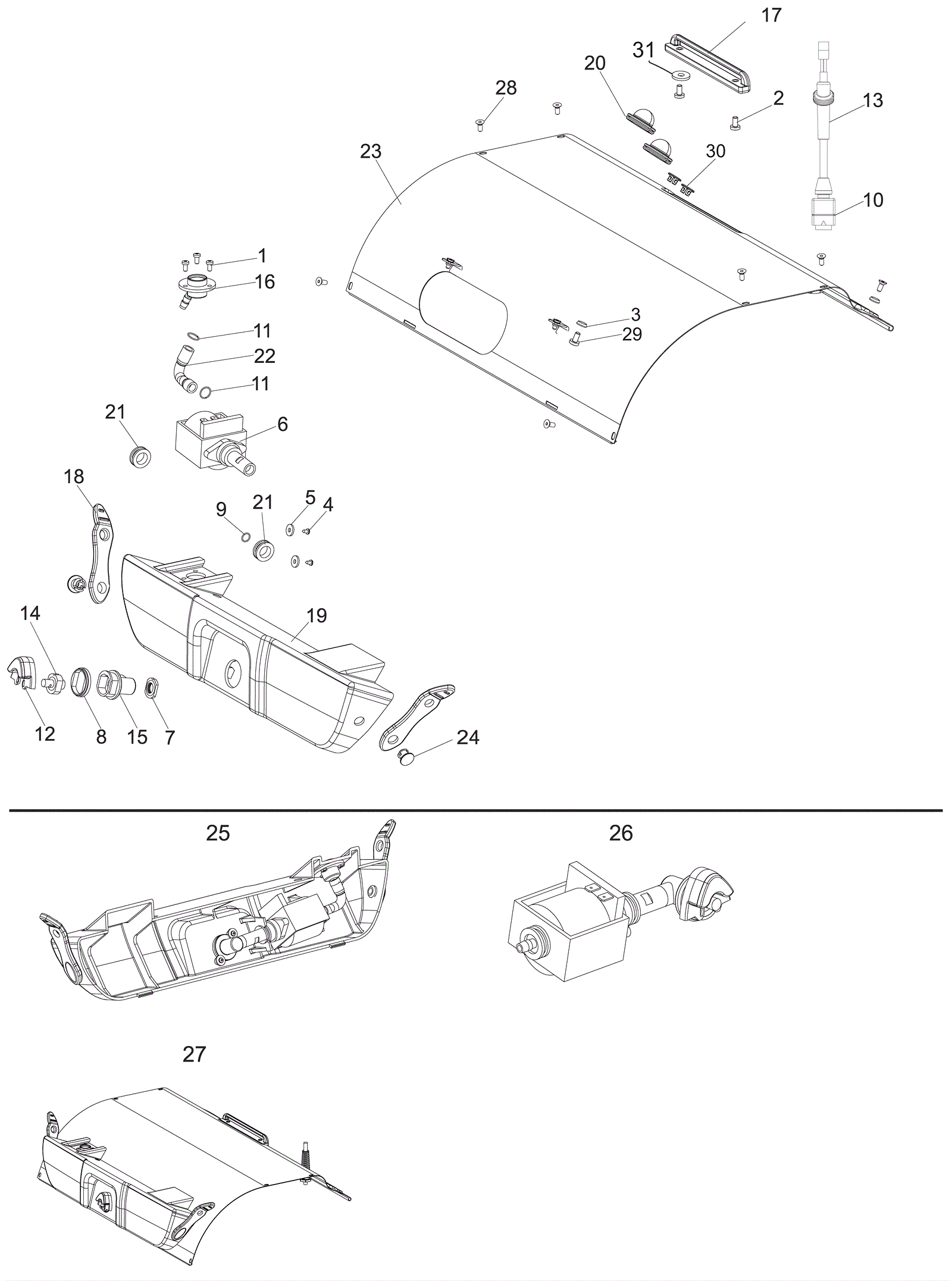

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
251-2133
|
Screw |
3 |
|
|
2 |
999-0901
|
Screw M5-.8 x 16mm pan head phillips stainless steel |
2 |
|
|
3 |
251-2068
|
Bridge washer |
2 |
|
|
4 |
251-2190
|
Screw |
2 |
|
|
5 |
251-2189
|
Washer |
2 |
|
|
6 |
251-2063
|
110V pump |
1 |
|
|
7 |
251-2060
|
Nozzle seal |
1 |
|
|
8 |
251-2053
|
Pump spacer |
1 |
|
|
9 |
251-2071
|
Pump o-ring |
1 |
|
|
10 |
251-2257
|
Nut |
1 |
|
|
11 |
251-2072
|
Hose clip |
2 |
|
|
12 |
251-2057
|
Rubber boot |
1 |
|
|
13 |
251-2073
|
Cable gland |
1 |
|
|
14a |
251-2055
|
Nozzle assembly |
1 |
(Trio 15) |
|
14b |
251-2056
|
Nozzle |
1 |
(Trio 20) |
|
15 |
251-2061
|
Nozzle adaptor |
1 |
|
|
16 |
251-2058
|
Female valve |
1 |
|
|
17 |
251-2258
|
Lock |
1 |
|
|
18 |
251-2052
|
Strap |
2 |
|
|
19 |
251-2051
|
Pump cover |
1 |
|
|
20 |
251-2259
|
Circuit breaker cap |
2 |
|
|
21 |
251-2062
|
Pump support ring |
2 |
|
|
22 |
251-2059
|
Pump hose |
1 |
|
|
23 |
251-2260
|
Cover |
1 |
|
|
24 |
251-2054
|
Strap lock |
2 |
|
|
25 |
251-2075
|
Pump cover assembly |
1 |
(Includes 1, 4-9, 11-12, 14, 16, 18-19, 21-22 and 24) |
|
26 |
251-2070
|
110V pump assembly |
1 |
(Includes 1, 4-6, 11, 16 and 21-22) |
|
27 |
251-2261
|
Cover assembly |
1 |
(Includes 1-31) |
|
28 |
999-1556
|
Screw M4-.7 x 8mm pan head phillips zinc plated |
8 |
|
|
29 |
999-1645
|
Screw M4-.7 x 12mm hex head stainless steel |
2 |
|
|
30 |
251-2262
|
LED lense |
2 |
|
|
31 |
251-2263
|
Washer |
2 |
|
|
