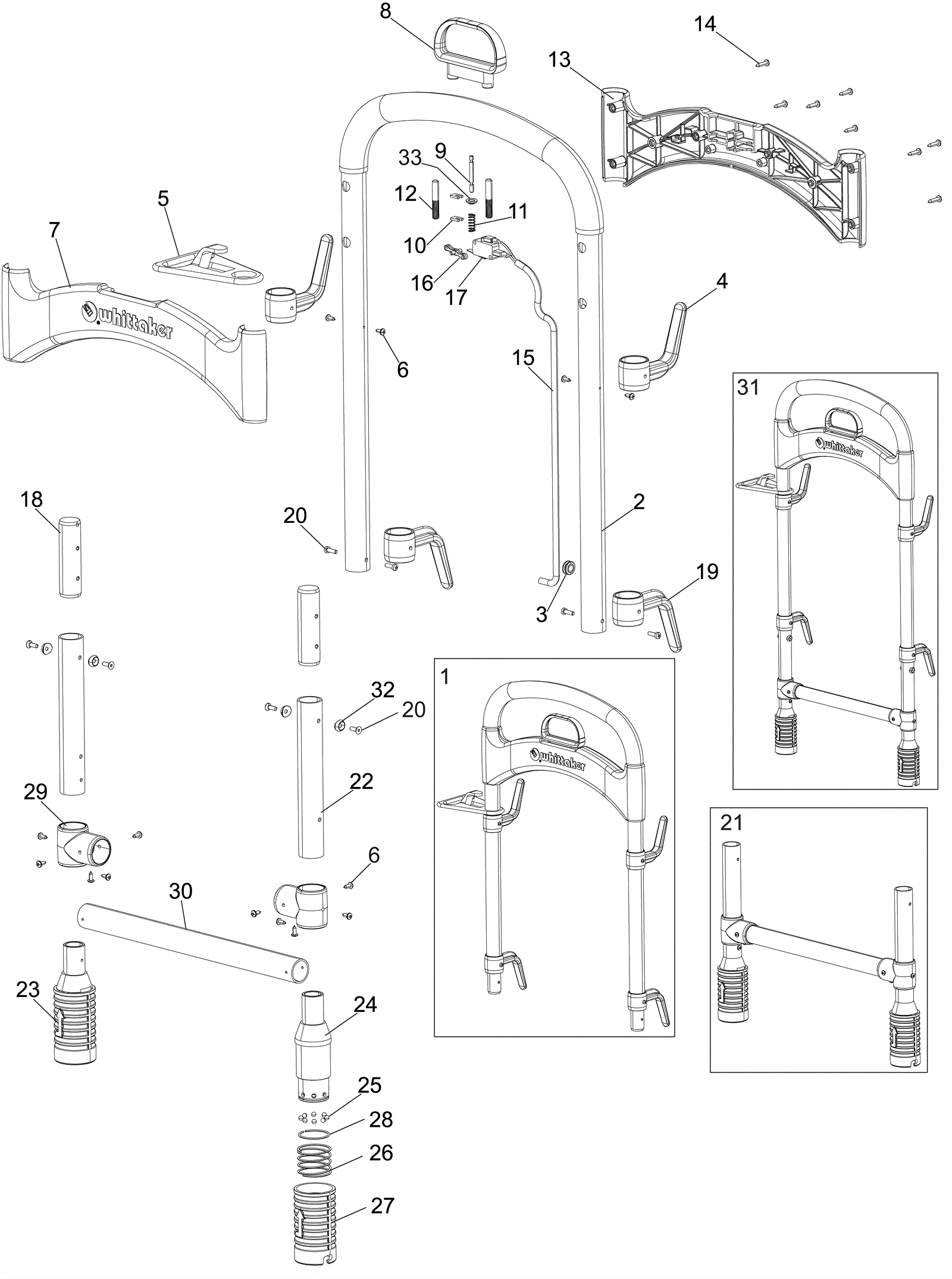

TRIO 20 Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1 251-2221 Top handle assembly $504.16 1 (Includes 2-17, 19-20 and 33) usually ships 14-19 days
2 251-2255 Pipe $504.26 1 usually ships 14-19 days
3 251-2171 Grommet $2.20 1 usually ships 14-19 days
4 251-2226 Cable holder $16.45 2 usually ships 14-19 days
5 251-2225 Cable retainer $5.50 1 usually ships 14-19 days
6 251-2133 Screw $1.10 14 ships same day
7 251-2224 Front switch housing $47.30 1 usually ships 14-19 days
8 251-2227 Pull handle $13.75 1 usually ships 14-19 days
9 251-2229 Handle pin $11.48 1 usually ships 14-19 days
10 251-2230 Cable clamp $1.10 2 usually ships 14-19 days
11 251-2232 Handle spring $2.30 1 usually ships 14-19 days
12 251-2231 Pin $5.50 2 usually ships 14-19 days
13 251-2228 Rear switch housing $47.30 1 usually ships 14-19 days
14 251-2186 Screw M3 x 16mm $1.10 8 usually ships 14-19 days
15 251-2235 Cable assembly $36.66 1 usually ships 14-19 days
16 251-2233 Pump actuator switch $2.29 1 usually ships 14-19 days
17 251-2234 Pump switch $22.91 1 usually ships 14-19 days
18 251-2237 Handle pipe $36.74 2 usually ships 14-19 days
19 251-2236 Bottom cable holder $17.24 2 usually ships 14-19 days
20 999-1898 Screw M4-.7 x 12mm pan head phillips stainless steel $0.99 8 ships same day
21 251-2222 Bottom handle assembly $458.37 1 (includes 6 and 22-30) usually ships 14-19 days
22 251-2240 Bottom handle pipe $14.71 2 usually ships 14-19 days
23 251-2243 Top handle connector assembly $229.22 2 usually ships 14-19 days
24 251-2244 Top handle connector $174.52 2 usually ships 14-19 days
25 251-2245 Coupling $5.50 16 usually ships 14-19 days
26 251-2247 Spring coupling $6.42 2 usually ships 14-19 days
27 251-2248 Coupling outer sleeve $11.02 2 usually ships 14-19 days
28 251-2246 Spring clip $1.65 2 usually ships 14-19 days
29 251-2241 Pipe holder $47.30 2 usually ships 14-19 days
30 251-2242 Pipe $45.93 1 usually ships 14-19 days
31 251-2220 Handle assembly $962.50 1 (includes 1-33) usually ships 14-19 days
32 251-2238 Split washer $0.99 4 usually ships 14-19 days
33 251-2256 Bush spring $2.20 1 usually ships 14-19 days
