TRIO 20

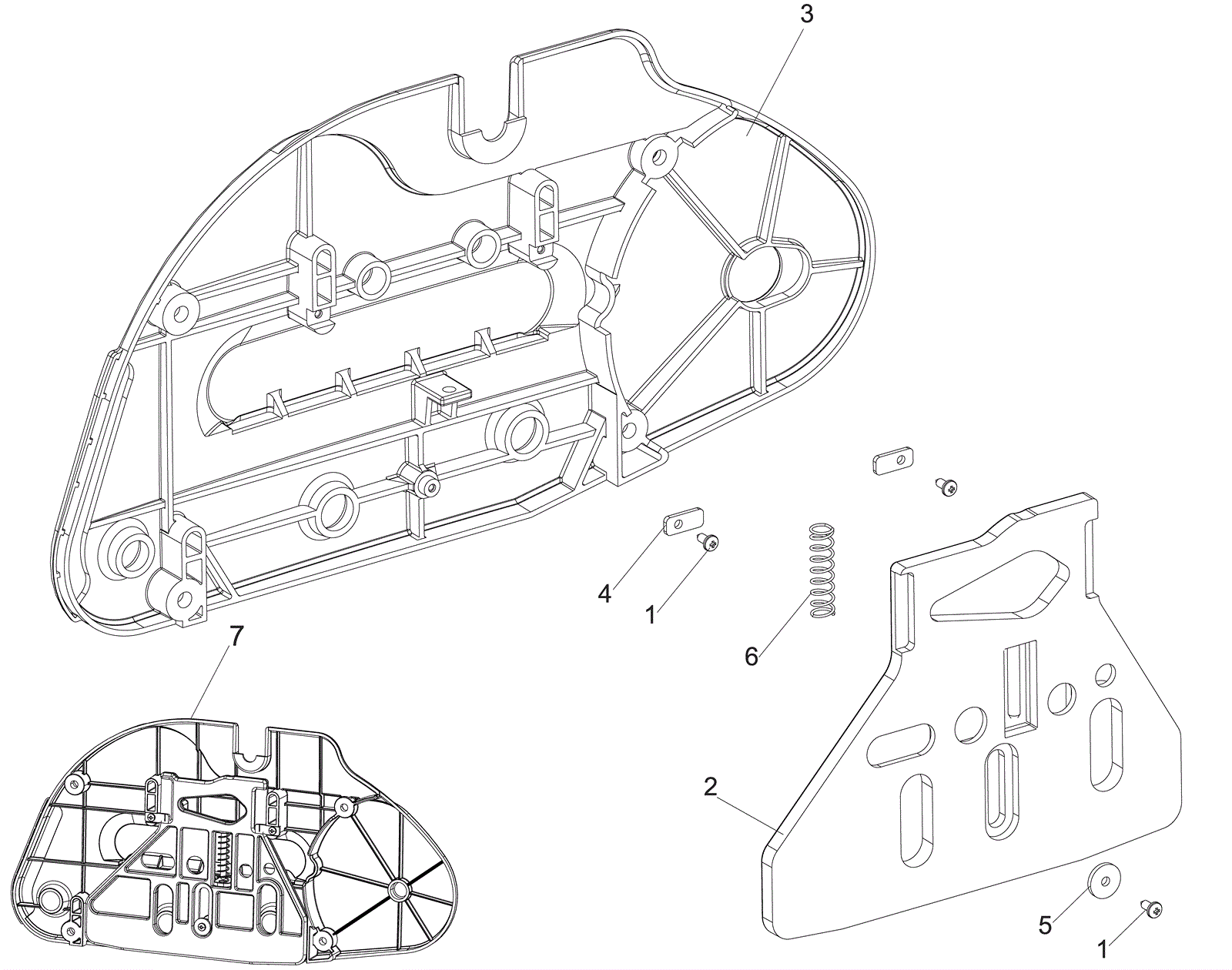

Idle Cover Assembly
Click to enlarge
#
Part
Description
Price
Req
Notes
Availability
1
251-2133
Screw
$1.00
3
usually ships 7-18 days
2
251-2152
Right hand lifting plate
$41.67
1
usually ships 7-18 days
3
251-2153
Idle cover
$130.18
1
usually ships 7-18 days
4
251-2117
Guide lift plate
$5.00
2
usually ships 7-18 days
5
251-2135
Washer
$1.50
1
usually ships 7-18 days
6
251-2118
Lift plate spring
$5.00
1
usually ships 7-18 days
7
251-2156
Idle cover assembly
$216.67
1
(Includes 1-6)
usually ships 7-18 days
