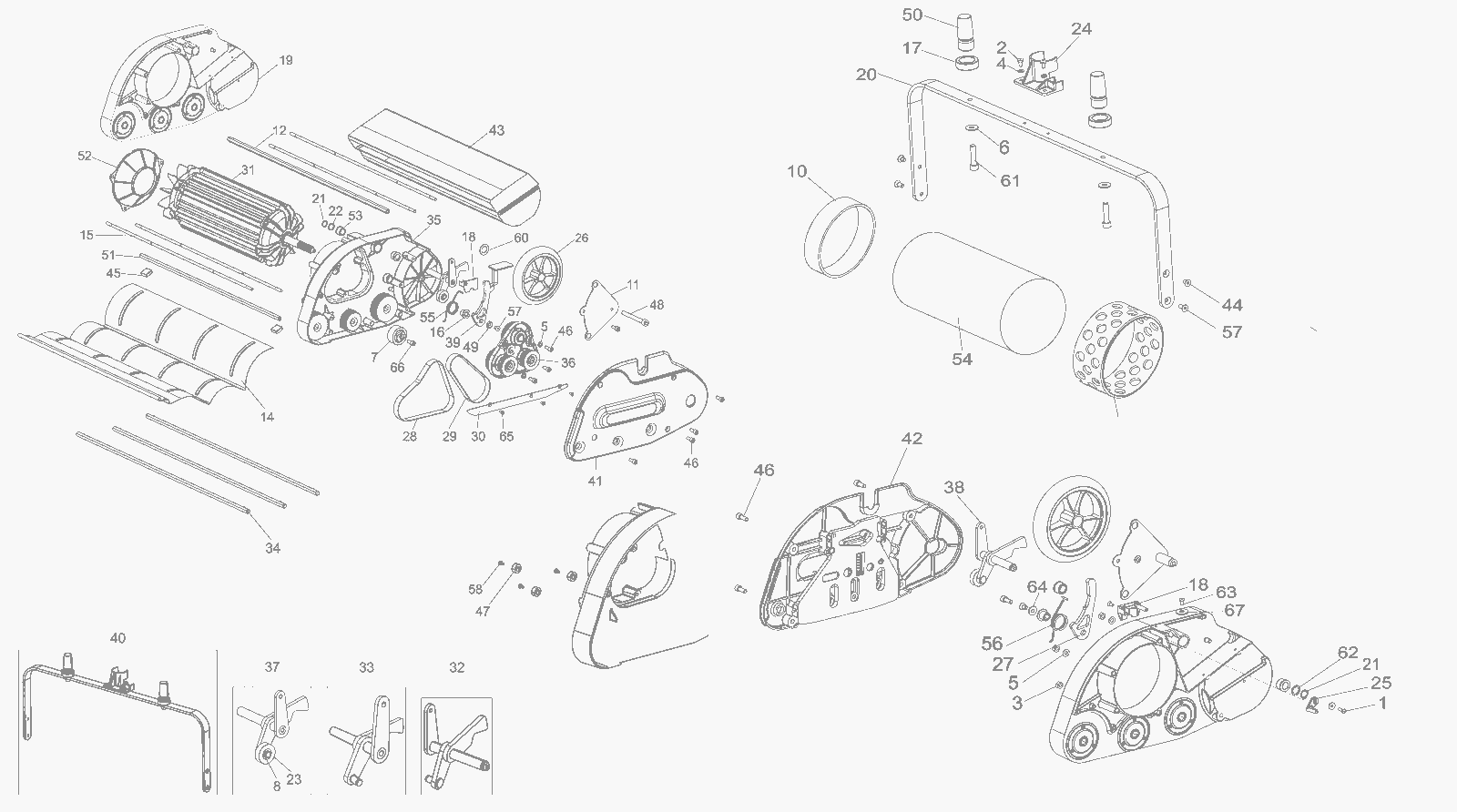

Chassis Assembly

#PartDescription ReqNotesAvailability
1 999-1898 Screw M4-.7 x 12mm pan head phillips stainless steel 1
2 251-1147 Screw 2
3 251-1149 Nut 4
4 251-2217 Washer 2
5 251-2161 Washer 7
6 251-2200 Washer 2
7 251-2089 Idler assembly 1
8 251-2124 Circlip 2
9 251-2079 Spacer 1
10 251-2146 Spacer 1
11 251-2096 Wheel support 2
12 251-2138 Wedge shaft 1
13 251-2081 Dust protection pipe 1
14a 251-2157 Brush shield 1
15 251-2085 Tie rod 4
16 251-2092 Bush wedge 2
17 251-2199 Handle spacer 2
18 251-2097 Cap stopper 2
19 251-2144 Idle housing assembly 1
20 251-2194 Lower handle 1
21 251-2271 Clip 2
22 251-2126 Washer 2
23 251-2119 Bearing 2
24 251-2197 Cable clamp 1
25 251-2159 Actuator switch lever 1
26 251-2095 Wheel 2
27 251-2278 Right hand wedge 1
28 251-2093 Belt 1
29 251-2216 Belt 1
30 251-2094 Belt shield 1
31 251-2087 Motor assembly 1
32 251-2149 Right hand wedge lever 1
33 251-2098 Left hand wedge lever 1
34 251-1097 Brush shaft assembly 3
35 251-2077 Drive housing assembly 1
36 251-2088 Gear housing assembly 1
37 251-2139 Left hand lever assembly 1
38 251-2132 Right hand lever assembly 1
39 251-2277 Left hand wedge assembly 1
40 251-2196 Lower handle assembly 1
41 251-2123 Drive cover assembly 1
42 251-2156 Idle cover assembly 1
43 251-2163 Collection tank assembly 1
44 999-1590 Screw M6-1 x 10mm socket head zinc 2
45 251-2167 Shield 2
46 999-1647 Screw M6-1 x 16mm socket head stainless steel 15
47 251-2140 Bushing 6
48 999-1297 Screw M8 x 50mm hex head stainless steel 2
49 251-2127 Bridge washer 2
50 251-2198 Bottom handle connector 2
51 251-2143 Support shaft 1
52 251-2148 Diverter 1
53 251-2120 Bushing 4
54 251-2083 Air guide 1
55 251-2091 Left hand spring 1
56 251-2151 Right hand wedge spring 1
57 999-1647 Screw M6-1 x 16mm socket head stainless steel 4
58 251-2128 Screw M3 x 6mm 6
59 251-2251 Protection cap 1
60 251-2252 Washer 4
61 251-2201 Screw 2
62 251-2189 Washer 7
63 999-9101 Screw M4-.7 x 10mm pan head stainless steel 1
64 251-2253 Washer 3
65 999-1314 Screw M4-.7 x 10mm socket head zinc 5
