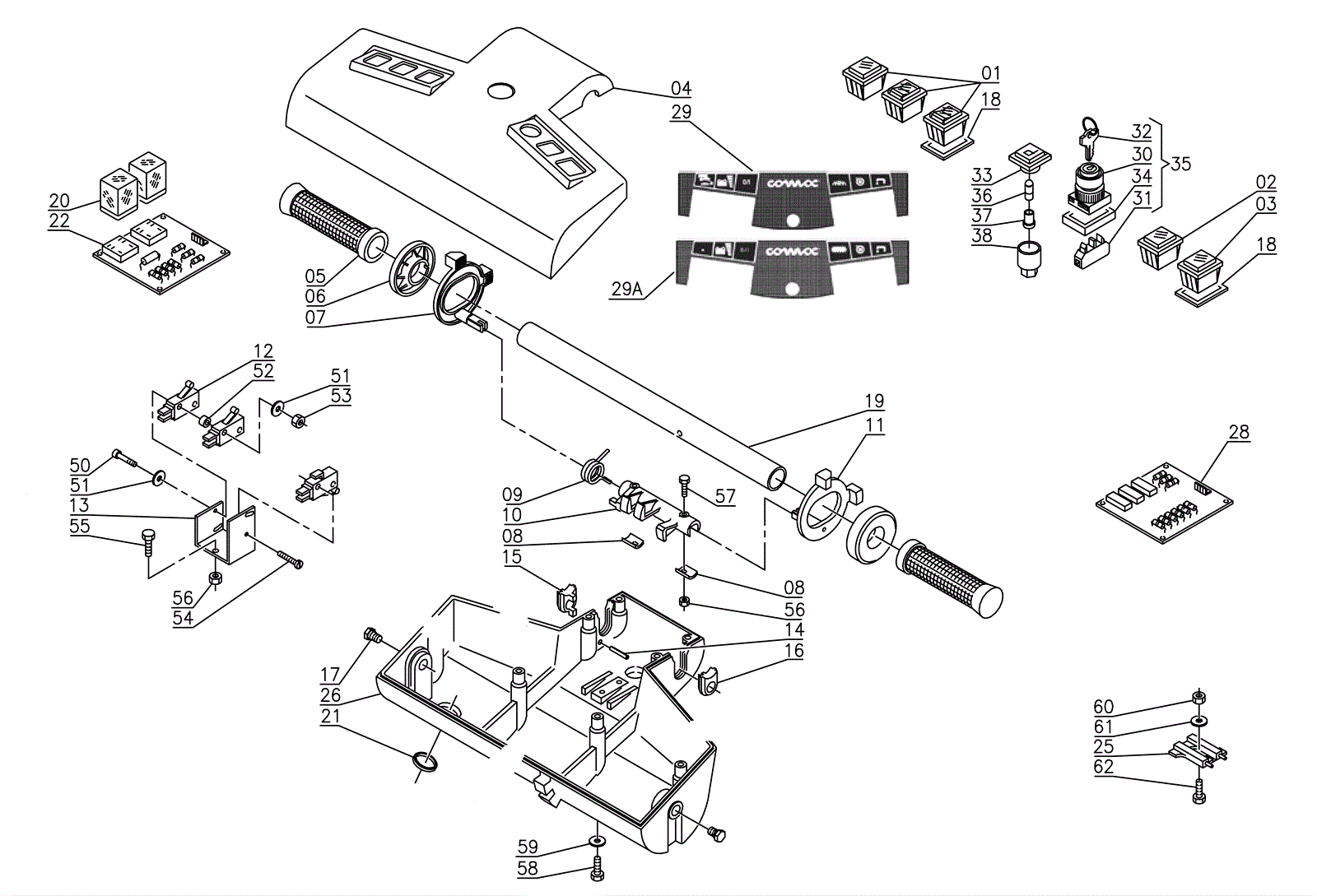

SIMPLA 50b Handle with Traction Assembly

#PartDescriptionPriceReqNotesAvailability
1 206-5177 Bipolar switch green (OBSOLETE) Call for price 3 usually ships 1-5 days
2 206-0720 Battery signal $12.12 1 usually ships 5-15 days
3a 206-5179 Bipolar switch yellow (OBSOLETE) Call for price 1 usually ships 1-5 days
3b 206-1043 Switch (OBSOLETE) Call for price 1 usually ships 1-5 days
4 250-1665 Handle bar cover $107.42 1 usually ships 11-24 days
5 206-0694 Knob (OBSOLETE) Call for price 2 usually ships 1-5 days
6 250-1666 Washer $14.30 2 usually ships 11-24 days
7 250-1667 Lever Call for price 1 usually ships 11-24 days
8 250-1668 Plaque Call for price 2 usually ships 11-24 days
9 189-6353 Torsion spring $12.18 1 usually ships 1-5 days
10 206-5338 Shaft (OBSOLETE) Call for price 1 usually ships 1-5 days
11 250-1669 Lever $5.04 1 usually ships 11-24 days
12 206-5182 Microswitch 3x22 (OBSOLETE) Call for price 3 usually ships 1-5 days
13 206-1044 Support (OBSOLETE) Call for price 1 usually ships 1-5 days
14 206-5289 Spring pin (OBSOLETE) Call for price 1 usually ships 1-5 days
15 250-1670 Plaque Call for price 1 usually ships 11-24 days
16 250-1671 Plaque Call for price 1 usually ships 11-24 days
17 N/A Not available Call for price 2 usually ships 3-26 days
18 250-1568 Gasket $6.95 5 usually ships 1-5 days
19 250-1672 Pipe Call for price 1 usually ships 11-24 days
20 206-1029 24V 20amp relay (OBSOLETE) Call for price 2 usually ships 1-5 days
21 250-1673 Fairlead Call for price 1 usually ships 11-24 days
22 206-1028 24V chopper card without relays (OBSOLETE) Call for price 1 usually ships 1-5 days
25 206-1030 Braking resistors (OBSOLETE) Call for price 1 usually ships 1-5 days
26 250-1674 Handle bar body Call for price 1 usually ships 11-24 days
28 206-0734 Battery check card (OBSOLETE) Call for price 1 usually ships 1-5 days
29a 206-1046 Decal (OBSOLETE) Call for price 1 usually ships 1-5 days
29b N/A Not available Call for price 1 usually ships 3-26 days
30 206-5214 Master switch (OBSOLETE) Call for price 1 usually ships 1-5 days
31 189-6342 Key switch contact $37.21 1 usually ships 11-24 days
32 189-2658 Key $16.81 1 ships same day
33 206-1031 36V parking lamp (red) (OBSOLETE) Call for price 1 usually ships 1-5 days
34 189-6343 Switch flange $7.48 1 usually ships 11-24 days
35 206-5404 Key switch assembly (OBSOLETE) Call for price 1 usually ships 1-5 days
36 250-1675 Electric bulb $19.97 1 usually ships 11-24 days
37 250-1676 Lamp holder $9.54 1 usually ships 11-24 days
38 206-1051 Body (OBSOLETE) Call for price 1 usually ships 1-5 days
50 206-1019 Screw (OBSOLETE) Call for price 3 usually ships 1-5 days
51 206-0698 Washer $2.03 3 usually ships 1-5 days
52 206-5395 Washer $1.91 2 usually ships 1-5 days
53 999-1161 Nut M3-.5 hex nylock stainless steel $0.99 2 ships same day
54 206-1054 Screw (OBSOLETE) Call for price 1 usually ships 1-5 days
55 999-0528 Screw M4-.7 x 16mm pan head slotted zinc $0.99 4 ships same day
56 250-1426 Nut M4 $12.38 2 usually ships 1-5 days
57 250-1677 Screw M3 x 20mm Call for price 2 usually ships 11-24 days
58 283-1668 SCREW M5X30 UNI 7687 DIN 7985 GALV. $2.99 6 usually ships 6-27 days
59 999-1594 Washer M5 external lock stainless steel $0.99 6 usually ships 1-5 days
60 206-0499 Nut (OBSOLETE) Call for price 1 usually ships 1-5 days
61 206-5168 Washer (OBSOLETE) $10.47 1 usually ships 1-5 days
62 999-1589 Screw M5-.8 x 35mm phillips oval head stainless steel $2.24 1 usually ships 11-24 days
