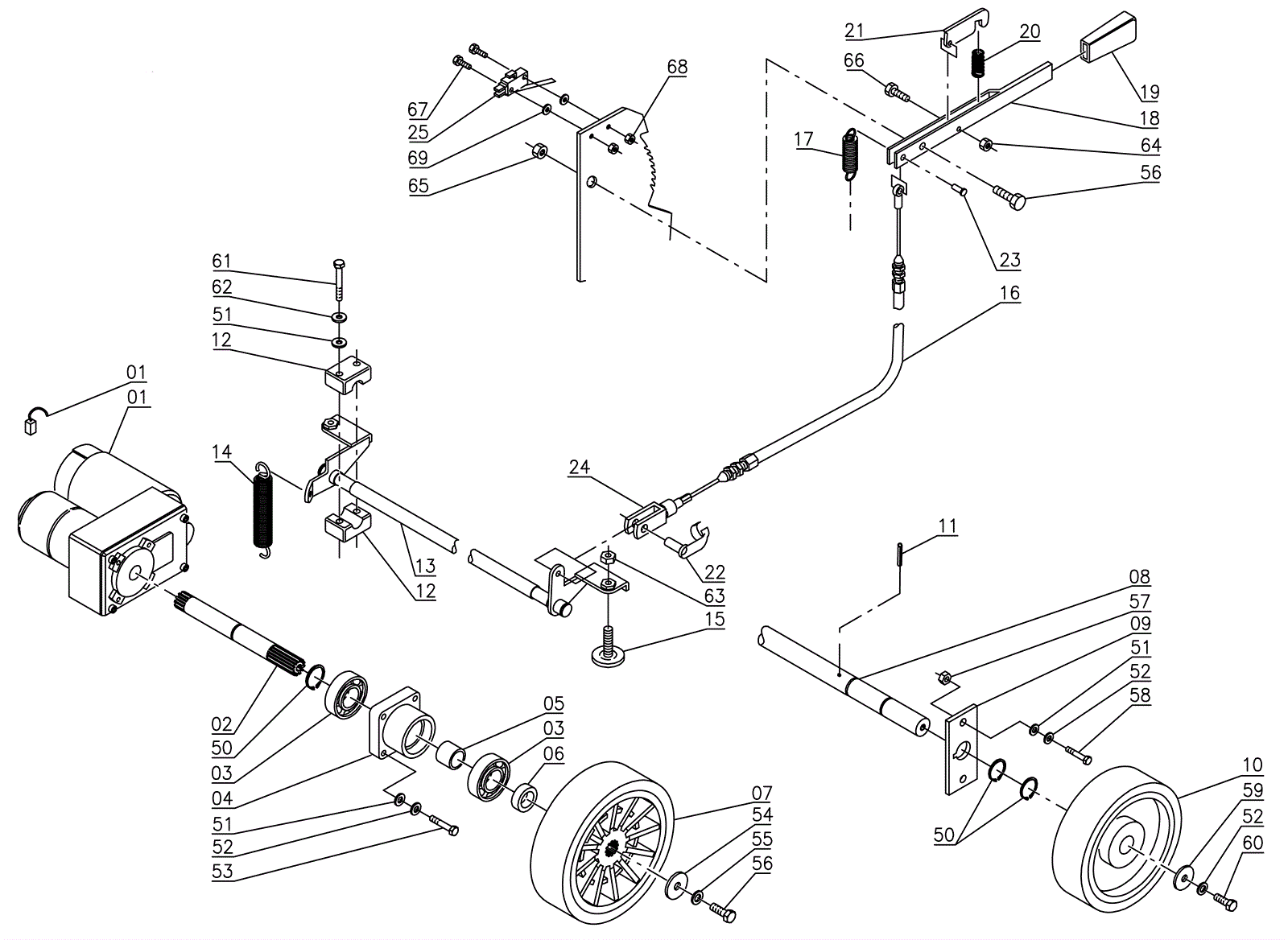

SIMPLA 45b Brake Assembly

#PartDescriptionPriceReqNotesAvailability
1a 189-4373 24V drive motor $1,925.66 1 usually ships 1-5 days
1b 206-0983 Carbon brushes $54.48 2 usually ships 14-27 days
2 206-0984 Axle shaft (OBSOLETE) Call for price 2 usually ships 1-5 days
3 250-1152 Bearing $9.90 4 usually ships 1-5 days
4 N/A Not available Call for price 2 usually ships 3-26 days
5 206-0986 Spacer (OBSOLETE) Call for price 2 usually ships 1-5 days
6 206-0987 Spacer (OBSOLETE) Call for price 2 usually ships 1-5 days
7 206-0988 Traction wheel (OBSOLETE) Call for price 2 usually ships 12-16 days
8 206-5304 Shaft (OBSOLETE) Call for price 1 usually ships 1-5 days
9 206-5305 Support (OBSOLETE) Call for price 2 usually ships 1-5 days
10 206-0564 Wheel $95.82 2 usually ships 14-27 days
11 189-9344 Split pin $17.41 1 usually ships 14-27 days
12 206-0543 Holdfast (OBSOLETE) $3.78 4 usually ships 1-5 days
13 206-0990 Shaft (OBSOLETE) Call for price 1 usually ships 1-5 days
14 250-1115 Spring $16.23 1 usually ships 1-5 days
15 206-5309 Pad (OBSOLETE) Call for price 2 usually ships 1-5 days
16 206-5310 Brake cable (OBSOLETE) Call for price 1 usually ships 1-5 days
17 206-0486 Spring $17.25 1 usually ships 12-16 days
18 206-5311 Lever (OBSOLETE) Call for price 1 usually ships 1-5 days
19 206-5286 Knob (OBSOLETE) Call for price 1 usually ships 1-5 days
20 206-0991 Spring (OBSOLETE) Call for price 1 usually ships 1-5 days
21 206-5314 Lever (OBSOLETE) Call for price 1 usually ships 1-5 days
22 206-5163 Clip (OBSOLETE) $8.51 1 usually ships 12-16 days
23 206-5165 Pin (OBSOLETE) Call for price 1 usually ships 1-5 days
24 206-5164 Fork $20.82 1 usually ships 12-16 days
25 206-0716 Microswitch (OBSOLETE) Call for price 1 usually ships 1-5 days
50 206-5306 Seeger ring $14.25 4 usually ships 14-27 days
51 999-6714 Washer M6 x 12mm flat stainless steel $0.99 8 ships same day
52 189-9102 Washer external serrated lock zinc $17.41 8 usually ships 1-5 days
53 999-1309 Screw M6-1 x 30mm hex head zinc $0.99 8 usually ships 1-5 days
54 206-0539 Washer (OBSOLETE) $1.22 2 usually ships 1-5 days
55 206-5171 Washer lock (OBSOLETE) Call for price 2 usually ships 1-5 days
56 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 3 ships same day
57 189-5094 Nut M6 $2.38 4 usually ships 14-27 days
58 283-1518 SCREW M6X20 UNI 5739 DIN 933 (8.8) GA $4.58 4 usually ships 26-37 days
59 206-5168 Washer (OBSOLETE) $10.47 2 usually ships 1-5 days
60 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 2 ships same day
61 N/A Not available Call for price 4 usually ships 3-26 days
62 283-1770 WASHER 6X2.5X1.8 GROWER GALV. $4.58 4 usually ships 26-37 days
63 206-5138 Nut (OBSOLETE) Call for price 2 usually ships 1-5 days
64 206-0995 Lock nut (OBSOLETE) Call for price 1 usually ships 1-5 days
65 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 1 usually ships 12-18 days
66 999-0528 Screw M4-.7 x 16mm pan head slotted zinc $0.99 1 ships same day
67 206-0996 Screw (OBSOLETE) Call for price 2 usually ships 1-5 days
68 999-1161 Nut M3-.5 hex nylock stainless steel $0.99 2 ships same day
69 206-5358 Washer (OBSOLETE) Call for price 2 usually ships 1-5 days
