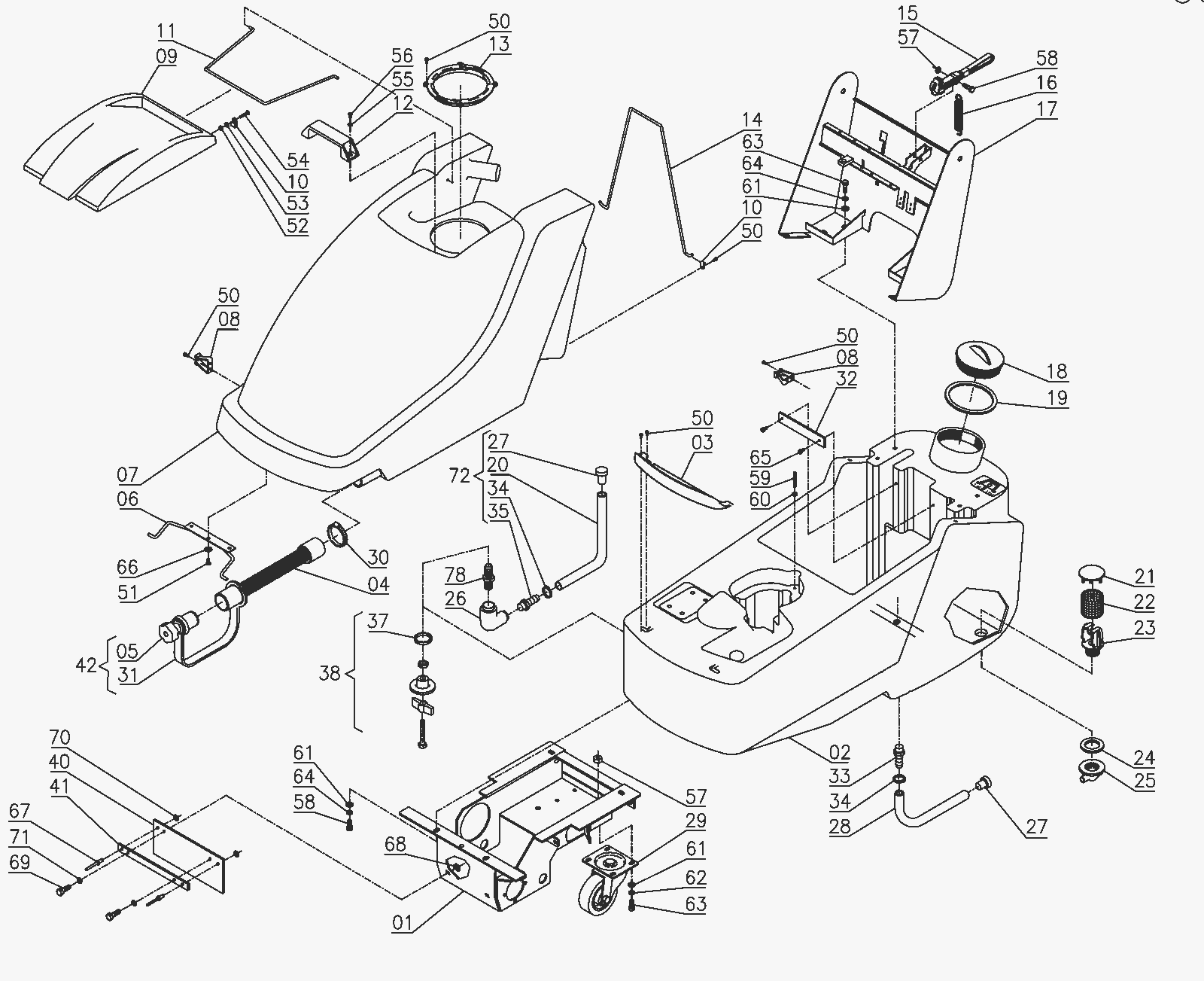

Frame and Tank Assembly

#PartDescription ReqNotesAvailability
1 206-5237 Frame (OBSOLETE) 1
2 206-0953 Solution tank (OBSOLETE) 1
3 206-0954 Cover (OBSOLETE) 1
4 206-0630 Drain hose 1
5 250-1642 Exhaust pipe plug 1
6 206-0956 Hinge (OBSOLETE) 1
7 206-0957 Recovery tank (OBSOLETE) 1
8 206-0571 Hook (OBSOLETE) 2
9 206-5243 Cover (OBSOLETE) 1
10 206-5244 Cable fastener 4
11 206-5245 Hinge (OBSOLETE) 1
12 189-9086 Handle 1
13 206-0585 Filter holder (OBSOLETE) 1
14 206-5247 Prop (OBSOLETE) 1
15 250-1643 Lever 1
16 250-1644 Spring 1
17 206-0958 Frame (OBSOLETE) 1
18 189-6266 Cap 1
19 206-0959 Gasket (OBSOLETE) 1
20 206-0960 Pipe (OBSOLETE) 1
21 250-1645 Cover 1
22 250-1646 Filter 1
23 250-1647 Base 1
24 206-0962 Gasket 1
25 N/A Not available 1 (Ring nut)
26 206-0964 Elbow (OBSOLETE) 1
28 206-0966 Pipe (OBSOLETE) 1
29 206-5262 Castor wheel (OBSOLETE) 1
30 206-0071 Clamp 1
31 206-0628 Clamp (OBSOLETE) 1
32 206-0967 Guide (OBSOLETE) 1
33 206-0968 Connector (OBSOLETE) 1
34 206-0620 Clamp (OBSOLETE) 2
35 206-0969 Connector (OBSOLETE) 1
37 250-1648 Gasket 1
38 250-1649 Fitting assembly 1
39 206-0973 Support bracket (OBSOLETE) 1
40 206-0974 Splash guard (OBSOLETE) 1
42 206-0629 Drain hose plug (OBSOLETE) 1
43 250-1650 Comax DX decal 1
44 250-1651 Comac SX decal 1
45 250-1652 Simpla 45B decal 1
48 250-1653 Simpla 45BT decal 1
49 250-1654 Simpla 50B decal 1
50 206-0976 Screw (OBSOLETE) 12
52 206-0995 Lock nut (OBSOLETE) 2
53 206-5265 Washer 4 x 9 (OBSOLETE) 2
54 206-5266 Screw (OBSOLETE) 2
55 999-9100 Washer M5 flat stainless steel 2
56 206-5267 Screw (OBSOLETE) 2
57 999-0471 Nut M8-1.25 nylon insert lock zinc plated 5
58 206-5173 Screw (OBSOLETE) 1
59 189-8732 Screw M6 x 40mm hex set flat end stainless steel 1
60 189-9083 Nut M6 x 5 hex 2
61 250-1219 Washer 10
62 206-5171 Washer lock (OBSOLETE) 4
63 206-0977 Screw (OBSOLETE) 8
64 189-9084 Washer M8 lock zinc 6
65 206-0583 Screw (OBSOLETE) 2
66 206-0912 Washer (OBSOLETE) 3
67 206-0978 Rivet (OBSOLETE) 2
68 206-0979 Nut (OBSOLETE) 2
69 206-0980 Screw (OBSOLETE) 2
70 206-0981 Washer (OBSOLETE) 2
71 206-0582 Washer (OBSOLETE) 2
72 206-0982 Drain hose kit (OBSOLETE) 1
73 250-1655 Simpla 50BT decal 1
74 250-1656 S50 BS decal 1
75 250-1657 Simpla 50 BS T decal 1
76 250-1658 Simpla 61 decal 1
77 250-1659 Simpla 61B T decal 1
78 250-1660 Fitting 1
