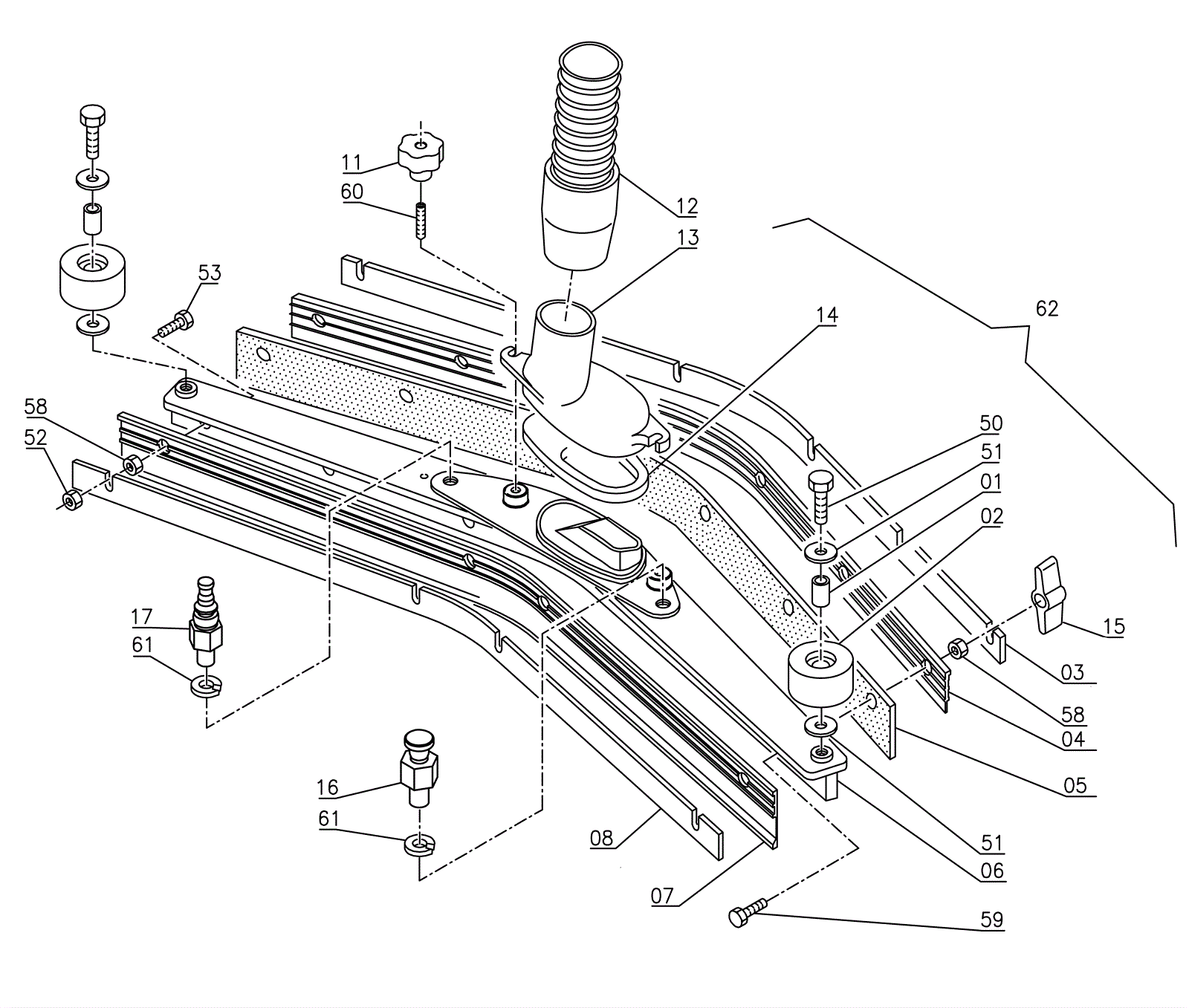

Squeegee Assembly

#PartDescription ReqNotesAvailability
1 189-6219 Bushing 2
2 189-6218 Wheel 2
3a N/A Not available 1 (Simpla 45) (Squeegee blade)
4a N/A Not available 1 (Simpla 45)
4b 189-3100 Squeegee blade polyurethane rear 1 (Simpla 50)
5a N/A Not available 1 (Simpla 45)
5b 189-3099 Squeegee blade gum rubber central 1 (Simpla 50)
6a 250-1631 Squeegee body 1 (Simpla 45)
6b 206-5297 Squeegee body (OBSOLETE) 1 (Simpla 50)
7a N/A Not available 1 (Simpla 45)
7b 189-3098 Squeegee blade polyurethane front 1 (Simpla 50)
8a N/A Not available 1 (Simpla 45) (Squeegee blade)
8b 206-5298 Blade (OBSOLETE) 1 (Simpla 50)
11 206-0866 Knob (OBSOLETE) 2
12 N/A Not available 1
13 189-7553 Adaptor 1
14 N/A Not available 1
15a 206-0650 Nut wing (OBSOLETE) 6 (Simpla 45)
15b 206-0650 Nut wing (OBSOLETE) 8 (Simpla 50)
16 206-0933 Stud bolt (OBSOLETE) 1
17 N/A Not available 1
51 250-1219 Washer 2
53 999-1312 Screw M6-1 x 20mm hex head stainless steel 4
58 250-1632 Nut 12
59 999-1610 Screw M6-1 x 25mm flat head socket stainless steel 8
60 189-8732 Screw M6 x 40mm hex set flat end stainless steel 2
62a 206-0936 Squeegee assembly (OBSOLETE) 1 (Simpla 45)
62b 250-1633 Squeegee assembly 1 (Simpla 50)
