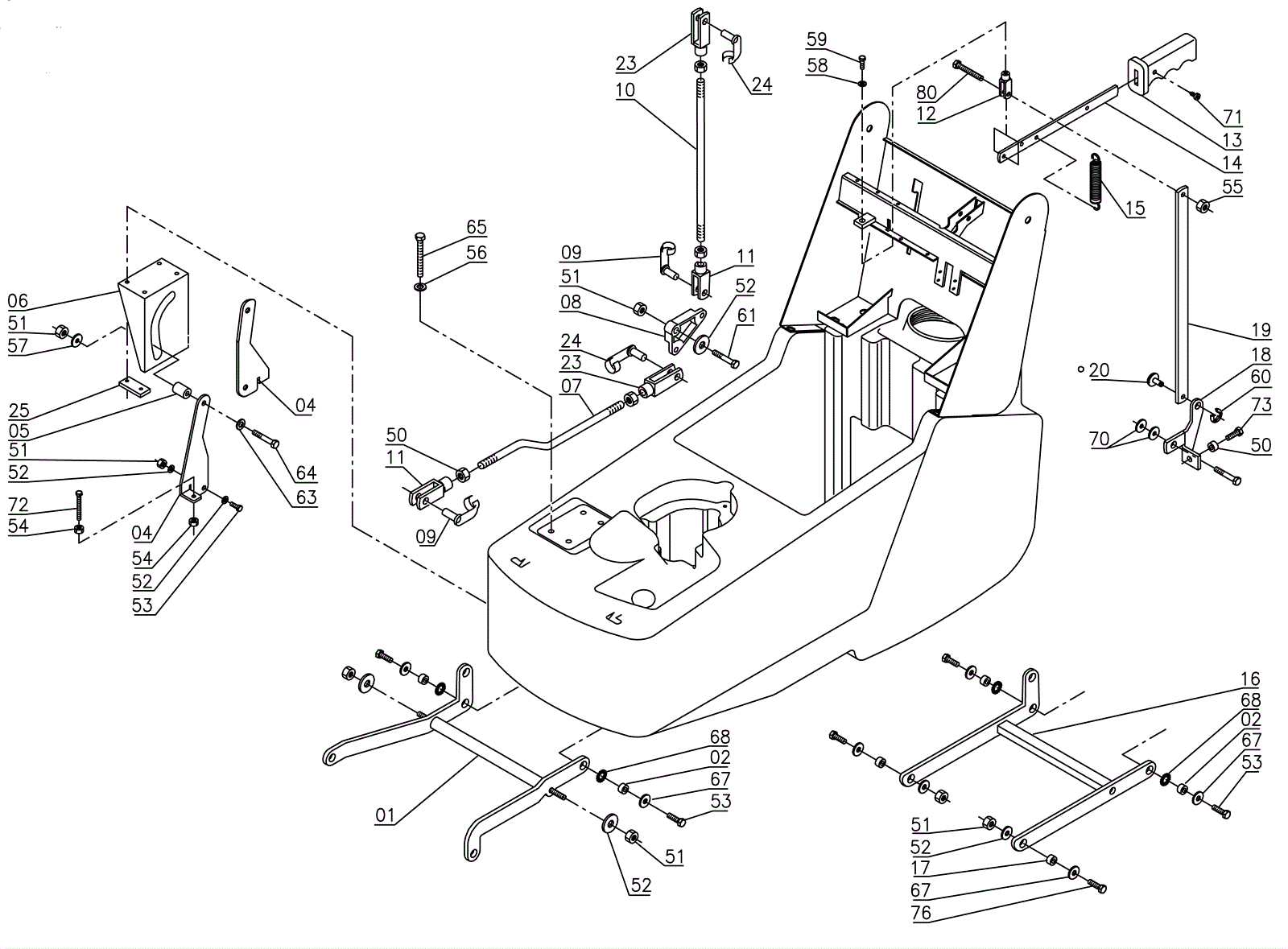

SIMPLA 45b Brush Control Assembly

#PartDescriptionPriceReqNotesAvailability
1 206-0914 Arm (OBSOLETE) Call for price 1 usually ships 1-5 days
2 206-5148 Bushing (OBSOLETE) Call for price 2 usually ships 1-5 days
4 206-5149 Support (OBSOLETE) Call for price 1 usually ships 1-5 days
5 206-5150 Roller (OBSOLETE) Call for price 1 usually ships 1-5 days
6 206-5151 Support (OBSOLETE) Call for price 1 usually ships 1-5 days
7 206-0915 Tie rod (OBSOLETE) Call for price 1 usually ships 1-5 days
8 206-5381 Rocker arm (OBSOLETE) $16.70 1 usually ships 5-15 days
9 206-0916 Pin (OBSOLETE) Call for price 2 usually ships 1-5 days
10 206-0917 Tie rod (OBSOLETE) Call for price 1 usually ships 1-5 days
11 206-0918 Fork (OBSOLETE) Call for price 2 usually ships 1-5 days
12 206-5164 Fork $20.82 1 usually ships 5-15 days
13 206-5156 Knob (OBSOLETE) Call for price 1 usually ships 1-5 days
14 206-0919 Lever (OBSOLETE) Call for price 1 usually ships 1-5 days
15 206-0486 Spring $17.25 1 usually ships 5-15 days
16 206-0920 Lever (OBSOLETE) Call for price 1 usually ships 1-5 days
17 206-5116 Bushing (OBSOLETE) Call for price 2 usually ships 1-5 days
18 206-0921 Coupling (OBSOLETE) Call for price 1 usually ships 1-5 days
19 206-0922 Prop (OBSOLETE) Call for price 1 usually ships 1-5 days
20 250-1628 Pin Call for price 1 usually ships 11-24 days
23 206-0923 Fork (OBSOLETE) Call for price 2 usually ships 1-5 days
24 206-0924 Pin (OBSOLETE) Call for price 2 usually ships 1-5 days
25 206-0925 Plate (OBSOLETE) Call for price 2 usually ships 1-5 days
50 206-5138 Nut (OBSOLETE) Call for price 5 usually ships 1-5 days
51 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 5 ships same day
52 250-1219 Washer $2.18 4 usually ships 1-5 days
53 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc $0.99 1 ships same day
54 999-1308 Nut M6-1 hex stainless steel $0.99 2 ships same day
55 189-5094 Nut M6 $2.38 1 usually ships 11-24 days
56 999-6714 Washer M6 x 12mm flat stainless steel $0.99 1 ships same day
57 206-0539 Washer (OBSOLETE) $1.22 1 usually ships 1-5 days
58 999-1261 Washer M6 flat stainless steel $0.99 1 ships same day
59 283-1518 SCREW M6X20 UNI 5739 DIN 933 (8.8) GA $4.58 1 usually ships 6-27 days
60 250-1629 Seeger ring Call for price 1 (SN 04003797 and after) usually ships 11-24 days
61 206-0927 Screw (OBSOLETE) Call for price 1 usually ships 1-5 days
63 189-9084 Washer M8 lock zinc $2.18 1 usually ships 1-5 days
64 283-1622 M8X45 HH SCREW UNI5739 DIN933(10.9)GA $4.58 1 usually ships 6-27 days
65 206-5169 Screw (OBSOLETE) Call for price 1 usually ships 1-5 days
67 189-6198 Flat washer $2.38 4 usually ships 11-24 days
68 206-5171 Washer lock (OBSOLETE) Call for price 2 usually ships 1-5 days
70 206-0928 Washer (OBSOLETE) Call for price 2 usually ships 1-5 days
71 206-0609 Screw (OBSOLETE) Call for price 1 usually ships 1-5 days
72 206-5174 Screw (OBSOLETE) Call for price 1 usually ships 1-5 days
73 206-5173 Screw (OBSOLETE) $1.92 1 usually ships 1-5 days
76 283-1617 SCREW M8X30 UNI 5739 DIN 933 (8.8) GA $4.58 2 usually ships 6-27 days
80 206-0930 Screw (OBSOLETE) Call for price 1 usually ships 1-5 days
