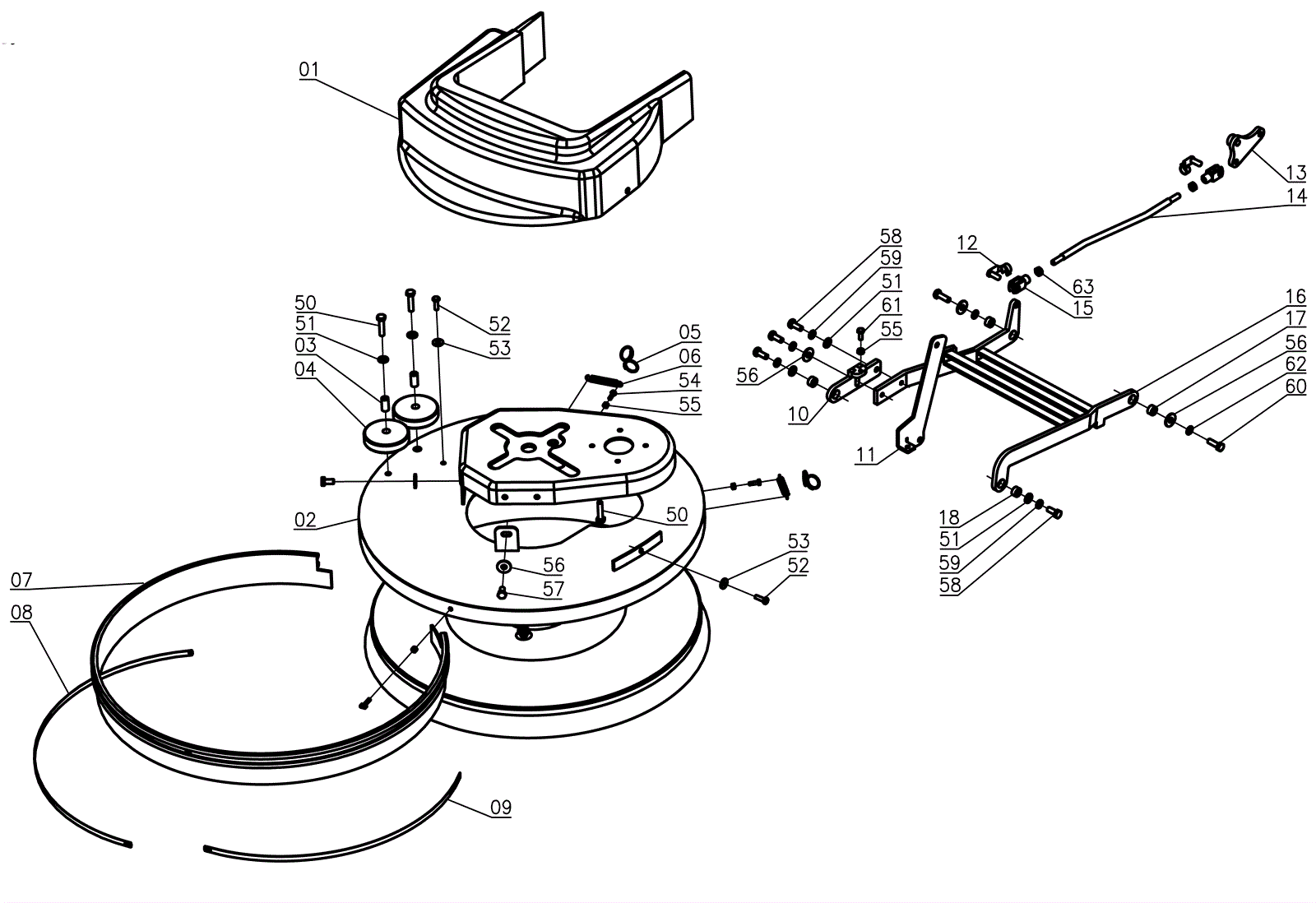

Brush Assembly

#PartDescription ReqNotesAvailability
1 250-1615 Base cover 1 (Simpla 61)
2 250-1616 Support 1 (Simpla 61)
3 189-2543 Bushing 2
4 189-2542 Wheel 2
5 250-1617 Ring 2
6 206-0486 Spring 2
7 250-1618 Splash guard 1 (Simpla 61)
8 250-1619 Right hand blade 1 (Simpla 61)
9 250-1620 Left hand blade 1 (Simpla 61)
10 250-1621 Arm 1 (Simpla 61)
11 250-1622 Arm 1 (Simpla 61)
12 206-0916 Pin (OBSOLETE) 2
13 250-1623 Rocker arm 1 (Simpla 61)
14 250-1624 Tie rod 1 (Simpla 61)
15 206-0918 Fork (OBSOLETE) 2
16 250-1625 Lever 1 (Simpla 61)
17 206-5148 Bushing (OBSOLETE) 2
18 206-5116 Bushing (OBSOLETE) 2
50 206-5173 Screw (OBSOLETE) 3
51 250-1219 Washer 8
52 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 2
53 206-0578 Washer (OBSOLETE) 2
54 206-0496 Screw (OBSOLETE) 2
55 999-0740 Nut M5-.8 hex stainless steel 4
56 189-6198 Flat washer 5
57 206-1013 Screw (OBSOLETE) 2
58 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 8
59 189-9084 Washer M8 lock zinc 8
60 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc 2
61 250-1627 Screw 1
62 206-5171 Washer lock (OBSOLETE) 2
63 206-5138 Nut (OBSOLETE) 2
