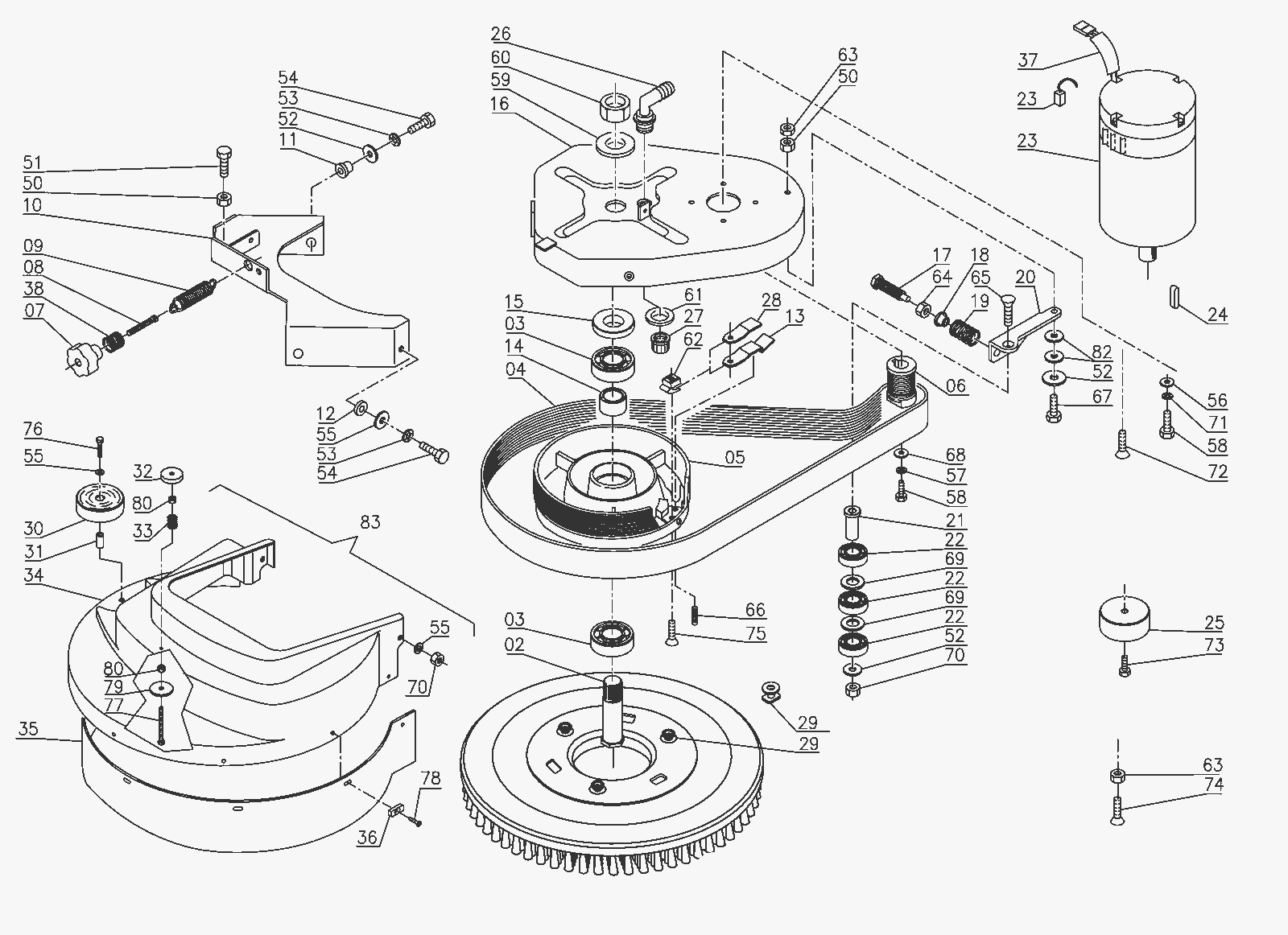

Brush Base Assembly

#PartDescription ReqNotesAvailability
2 250-1585 Shaft 1
3 250-1586 Bearing 2
4 250-1587 Belt 1
5 250-1588 Pulley 1
6a 206-5110 Motor pulley (OBSOLETE) 1
6b 250-1589 Motor pulley 1 (Simpla 61 only)
7 206-0866 Knob (OBSOLETE) 1
8 250-1590 Adjuster 1
9 250-1180 Spring 1
10 206-5114 Support (OBSOLETE) 1
11 189-6200 Bushing 2
12 206-5116 Bushing (OBSOLETE) 2
13 189-4652 Spring 1
14 250-1150 Spacer 1
15 250-1592 Spacer 1
16a 250-1593 Brush base 1
16b 250-1594 Brush base 1 (Simpla 61 only)
17 250-1595 Adjuster 1
18 250-1596 Bushing 1
19 206-0490 Spring (OBSOLETE) 1
20 206-5124 Support (OBSOLETE) 1
21 250-1597 Bushing 1
22 250-1598 Bearing 3
23a 206-5127 Motor (OBSOLETE) 1
23b 189-4424 Carbon brush 4
24 206-5128 Key (OBSOLETE) 1
25 250-1599 Washer 1
26 206-0868 Connector (OBSOLETE) 1
27 206-0868 Connector (OBSOLETE) 1
28 206-5133 Spring (OBSOLETE) 1
29a 250-1600 Brush button 3
29b 250-1601 Brush button 3
30 189-2542 Wheel 1
31 250-1603 Bushing 1
32 206-5158 Handwheel (OBSOLETE) 1
33 206-6005 Spring 1
34a 250-1604 Base cover 1 (Simpla 45 only)
34b 206-5160 Base cover (OBSOLETE) 1 (Simpla 50 only)
35a 250-1605 Splash guard 1 (Simpla 45 only)
35b 206-5161 Splash guard (OBSOLETE) 1 (Simpla 50 only)
36 250-1606 Plaque 8
37 250-1212 Sheath 1
38 206-0870 Spring (OBSOLETE) 1
50 999-1424 Nut M8-1.25 hex stainless steel 3
52 189-6198 Flat washer 2
53 189-9084 Washer M8 lock zinc 1
54 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 2
55 250-1219 Washer 2
57 189-9102 Washer external serrated lock zinc 1
59 250-1607 Washer 1
60 189-9118 Nut 1
61 206-0871 Lock washer (OBSOLETE) 1
62 206-0872 Nut (OBSOLETE) 1
63 206-5138 Nut (OBSOLETE) 1
64 250-1609 Nut 1
65 206-0873 Screw (OBSOLETE) 1
66 206-0874 Dowel (OBSOLETE) 1
67 189-9112 Screw M8 x 35mm 1
68 250-1610 Washer 1
69 250-1218 Washer 2
70 999-0471 Nut M8-1.25 nylon insert lock zinc plated 1
73 206-0875 Screw (OBSOLETE) 1
74 250-1614 Screw 1
75 206-0875 Screw (OBSOLETE) 1
76 206-0876 Screw (OBSOLETE) 1
77 206-6001 Screw (OBSOLETE) 1
78 189-6237 Screw M4 x 15mm flat 8
79 206-6002 Washer 1
82 250-1612 Cupped washer 2
83a 250-1613 Base cover 1 (Simpla 45 only)
83b 206-5176 Base cover assembly (OBSOLETE) 1 (Simpla 50 only)
