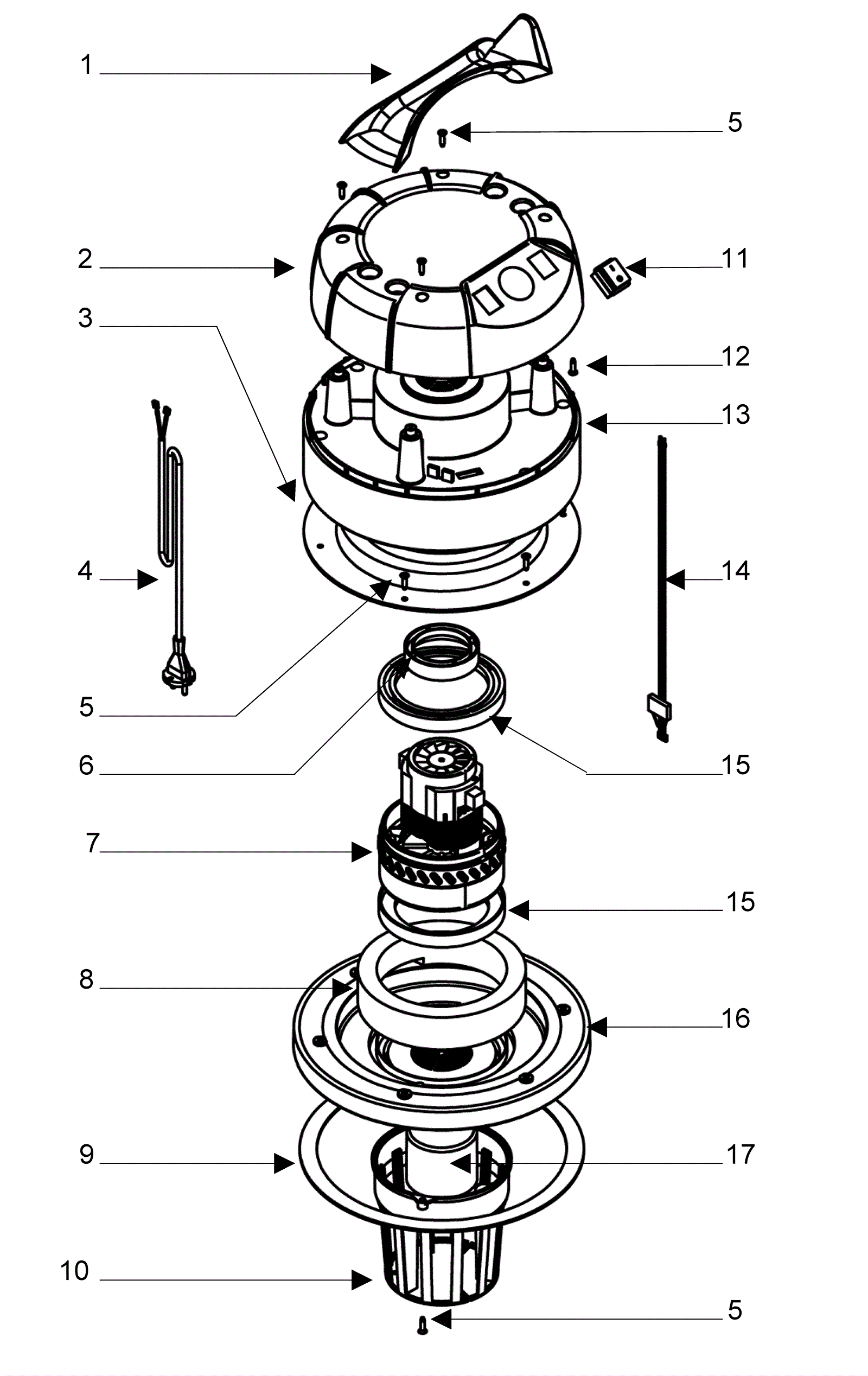

CA100 Motor Head Assembly

#PartDescriptionPriceReqNotesAvailability
1 250-1692 Handle Call for price 1 usually ships 11-24 days
2 250-1693 Motor house Call for price 1 usually ships 11-24 days
3 250-1694 Black ring Call for price 1 usually ships 11-24 days
4 250-1695 Mains cord (OBSOLETE) Call for price 1 usually ships 11-24 days
5 250-1696 Screw 4,8 x 19 SP black Call for price 3 usually ships 11-24 days
6 250-1697 Gasket motor Call for price 1 usually ships 11-24 days
7 250-1698 Motor Call for price 1 usually ships 11-24 days
8 250-1699 Isolation ring Call for price 1 usually ships 11-24 days
9 250-1700 Gasket motor base Call for price 1 usually ships 11-24 days
10 250-1701 Float basket Call for price 1 usually ships 1-5 days
11 189-9004 Switch $10.95 1 usually ships 11-24 days
12 283-2249 SELF-TAPPING SCREW 4,8x16 SP $2.84 1 usually ships 6-27 days
13 250-1704 Distance ring (grey) Call for price 1 usually ships 11-24 days
14 250-1705 Motor cable Call for price 1 usually ships 11-24 days
15 250-1706 Motor gasket Call for price 2 usually ships 11-24 days
16 250-1707 Motor plate Call for price 1 usually ships 11-24 days
17 250-1708 Float Call for price 1 usually ships 11-24 days
