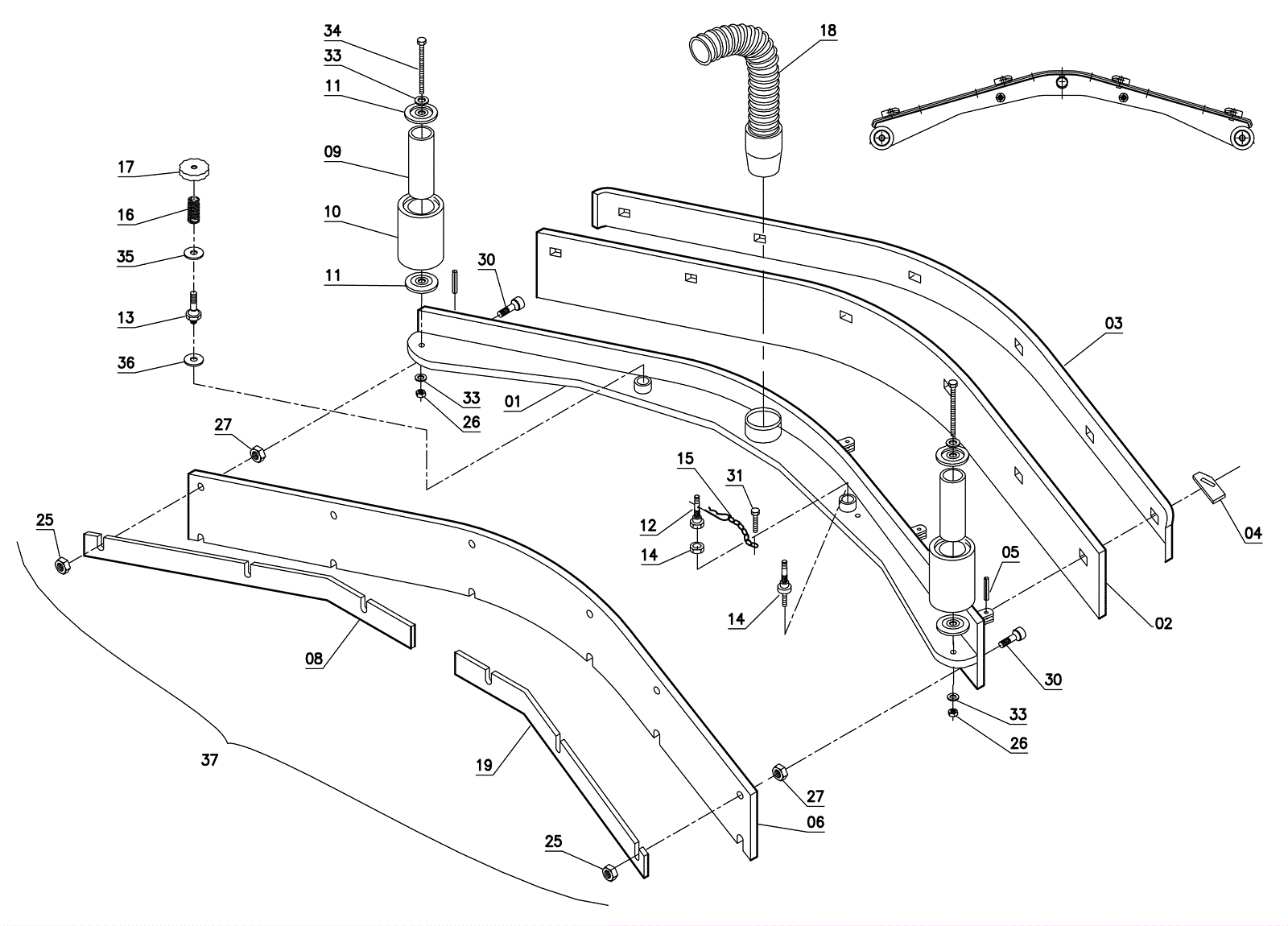

| # | Part | Description |
Req | Notes | Availability |
|---|
01 |
250-1576
|
Squeegee body |
1 |
|
|
02a |
206-5101
|
Rear squeegee blade |
1 |
(33 inch) |
|
02b |
206-5401
|
Rear squeegee blade |
1 |
(40 inch) |
|
02c |
250-1577
|
Squeegee blade oil resistant rear |
1 |
|
|
03 |
250-1578
|
Blade |
1 |
|
|
04 |
250-1579
|
Plate |
6 |
|
|
05 |
250-1507
|
Spring pin |
6 |
|
|
06 |
189-7567
|
Squeegee blade polyurethane |
1 |
|
|
08 |
189-9172
|
Front blade |
1 |
|
|
09 |
189-9182
|
Pin |
2 |
|
|
10 |
250-1262
|
Wheel |
2 |
|
|
11 |
189-5159
|
Washer |
4 |
|
|
12 |
250-1508
|
Stud bolt |
1 |
(before 08.2002) |
|
13 |
206-5228
|
Stud bolt (OBSOLETE) |
1 |
|
|
14 |
206-0747
|
Nut (OBSOLETE) |
1 |
(before 08.2002) |
|
15 |
189-2540
|
Chain |
1 |
(before 08.2002) |
|
16 |
206-0033
|
Spring (OBSOLETE) |
1 |
|
|
17 |
189-6202
|
Knob |
1 |
|
|
18 |
250-1137
|
Vacuum hose 2 inches x 61 inches |
1 |
|
|
19 |
250-1581
|
Left hand blade |
1 |
|
|
20 |
189-9179
|
Stud bolt |
1 |
|
|
26 |
999-1550
|
Nut M10-1.5 nylon insert lock |
2 |
|
|
27 |
250-1276
|
Nut |
2 |
|
|
30 |
206-0507
|
Screw |
2 |
|
|
33 |
999-9099
|
Washer M10 flat stainless steel |
4 |
|
|
34 |
250-1511
|
Screw M10 x 110mm |
2 |
|
|
35 |
189-6198
|
Flat washer |
1 |
|
|
36 |
250-1582
|
Washer M12 x 24mm |
1 |
|
|
37a |
189-3097
|
Squeegee assembly 40 inch |
1 |
(before 08.2002) |
|
37b |
189-3097
|
Squeegee assembly 40 inch |
1 |
(after 08.2002) |
|
