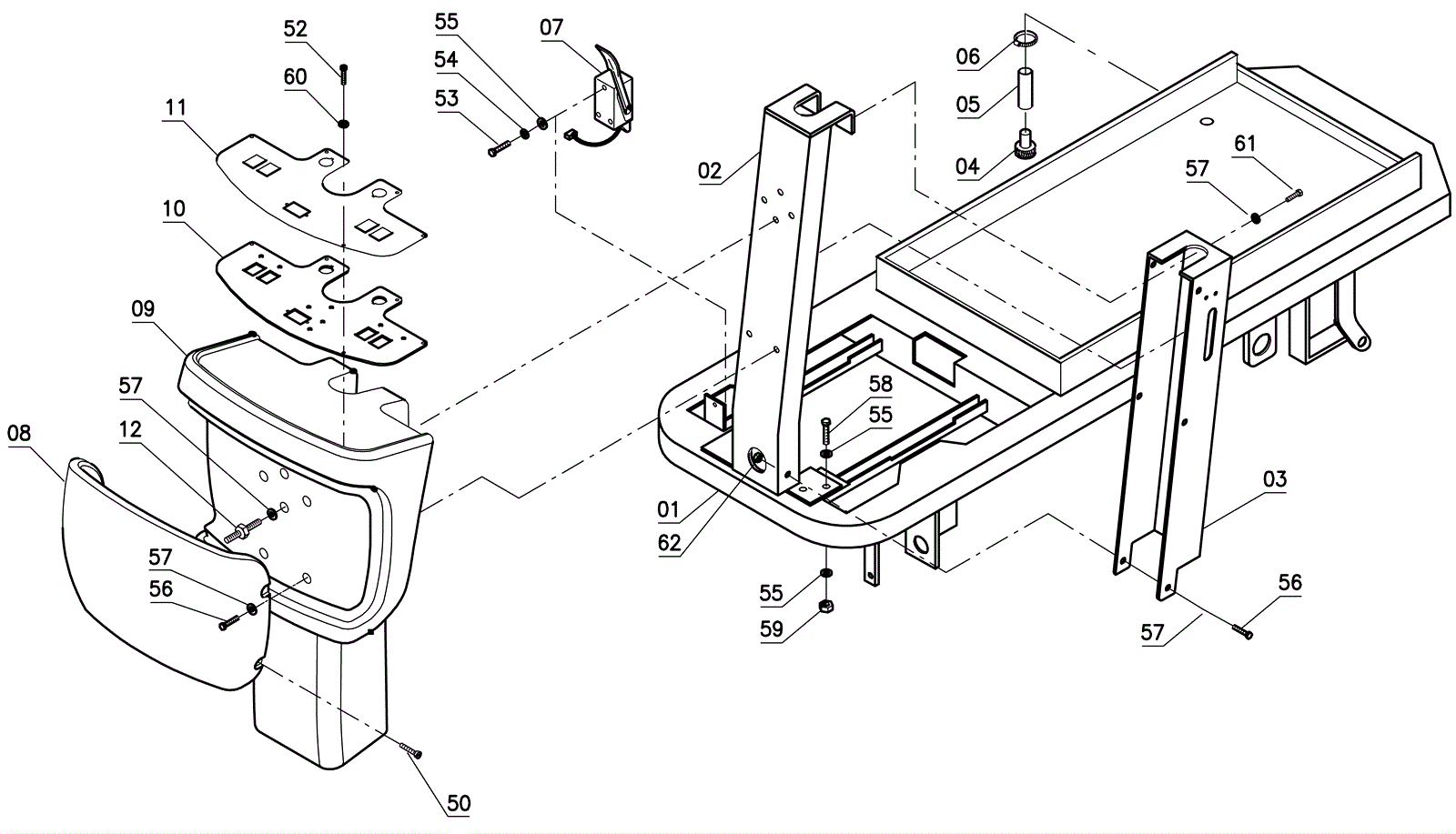

| # | Part | Description |
Req | Notes | Availability |
|---|
01 |
250-1539
|
Frame |
1 |
|
|
02 |
250-1540
|
Frame |
1 |
|
|
03 |
250-1541
|
Cover |
1 |
|
|
05 |
250-1543
|
Pipe |
1 |
|
|
06 |
206-0620
|
Clamp (OBSOLETE) |
1 |
|
|
07 |
250-1544
|
Pedal |
1 |
|
|
08 |
250-1545
|
Cover |
1 |
|
|
09 |
250-1546
|
Cover |
1 |
|
|
10 |
250-1547
|
Plate |
1 |
|
|
11 |
250-1548
|
Decal |
1 |
|
|
12 |
250-1549
|
Stud bolt |
2 |
|
|
50 |
999-1589
|
Screw M5-.8 x 35mm phillips oval head stainless steel |
4 |
|
|
52 |
250-1550
|
Screw |
6 |
|
|
53 |
206-1013
|
Screw (OBSOLETE) |
3 |
|
|
54 |
189-9084
|
Washer M8 lock zinc |
3 |
|
|
55 |
250-1219
|
Washer |
3 |
|
|
57 |
206-5168
|
Washer (OBSOLETE) |
5 |
|
|
58 |
999-0581
|
Bolt M8-1.25 x 25mm hex head full thread zinc |
4 |
|
|
59 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
4 |
|
|
60 |
250-1551
|
Washer |
6 |
|
|
61 |
250-1457
|
Screw M6 x 25mm |
1 |
|
|
62 |
189-5094
|
Nut M6 |
1 |
|
|
