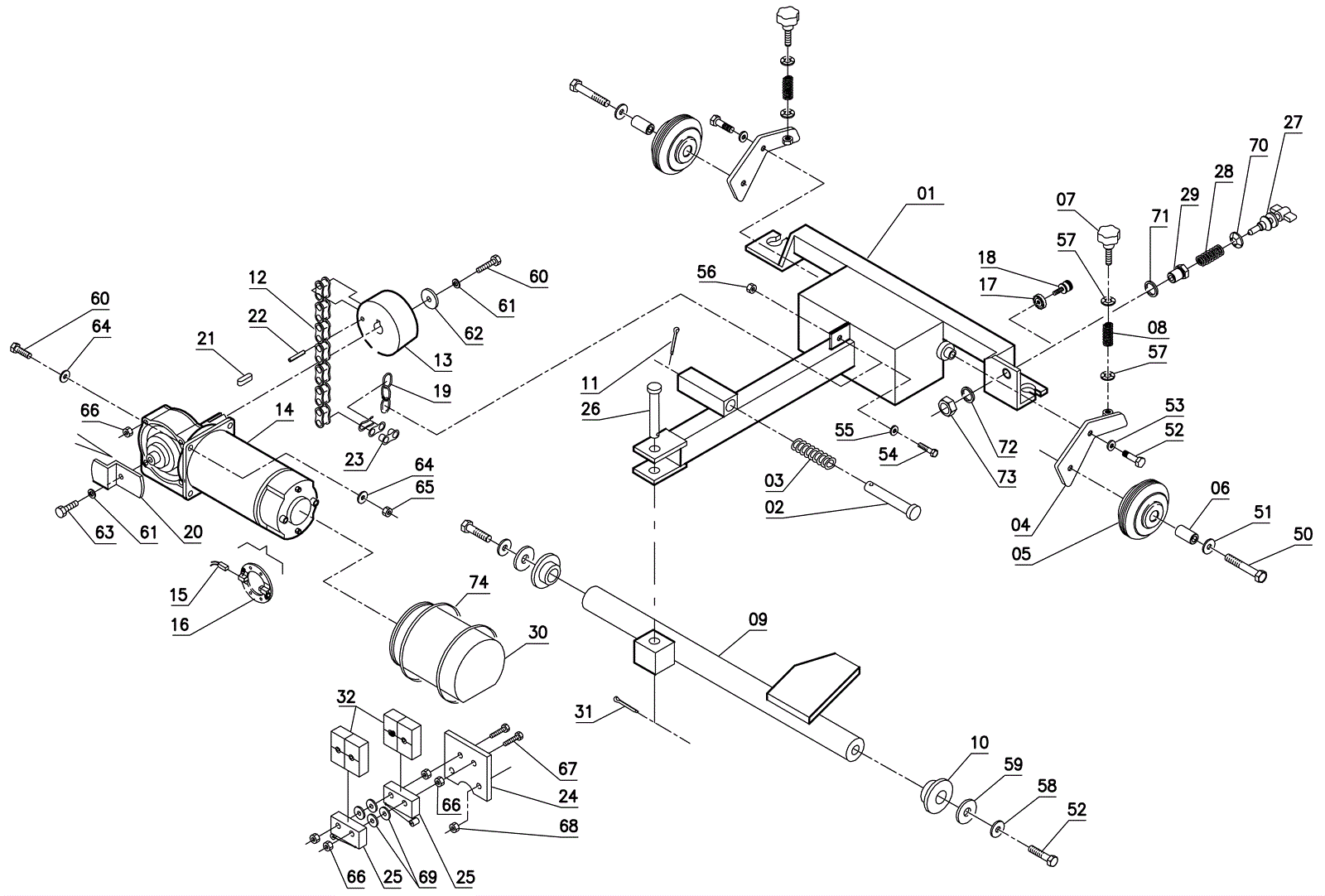

| # | Part | Description |
Req | Notes | Availability |
|---|
01a |
250-1512
|
Arm |
1 |
|
|
01b |
250-1513
|
Arm |
1 |
|
|
02 |
250-1514
|
Push button |
1 |
|
|
03 |
250-1515
|
Spring |
1 |
|
|
04 |
250-1516
|
Support |
2 |
|
|
05 |
189-6388
|
Squeegee wheel |
2 |
|
|
06 |
250-1517
|
Bushing |
2 |
|
|
07 |
189-6208
|
Knob |
2 |
|
|
08 |
189-6390
|
Spring |
2 |
|
|
09 |
250-1518
|
Shaft |
1 |
|
|
10 |
189-9185
|
Bushing |
2 |
|
|
11 |
250-1520
|
Split pin |
1 |
|
|
12 |
250-1521
|
Chain |
1 |
|
|
13 |
250-1522
|
Roller |
1 |
|
|
14 |
250-1154
|
Squeegee motor |
1 |
|
|
15 |
206-0889
|
Carbon brush (OBSOLETE) |
2 |
|
|
16 |
250-1523
|
Carbon brush holder |
1 |
|
|
17 |
250-1524
|
Handwheel |
1 |
|
|
18 |
189-9159
|
Adjuster |
1 |
|
|
20 |
250-1527
|
Lever |
1 |
|
|
22 |
250-1528
|
Spring pin |
1 |
|
|
23 |
189-9100
|
Master chain link |
1 |
|
|
24 |
250-1529
|
Support |
1 |
|
|
25 |
N/A
|
Not available |
2 |
(Microswitch) |
|
26 |
250-1530
|
Pin |
1 |
|
|
27 |
250-1531
|
Adjuster |
1 |
|
|
28 |
206-0944
|
Spring (OBSOLETE) |
1 |
|
|
29 |
250-1532
|
Bushing |
1 |
|
|
30 |
250-1533
|
Shroud |
1 |
|
|
31 |
250-1534
|
Split pin |
1 |
|
|
32 |
250-1535
|
Support cover |
2 |
|
|
50 |
189-6389
|
Screw M10 x 60mm |
2 |
|
|
51 |
999-9099
|
Washer M10 flat stainless steel |
2 |
|
|
52 |
206-1013
|
Screw (OBSOLETE) |
2 |
|
|
53 |
250-1219
|
Washer |
2 |
|
|
54 |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
1 |
|
|
55 |
206-0578
|
Washer (OBSOLETE) |
1 |
|
|
57 |
189-9094
|
Washer M8 external serrated lock zinc |
4 |
|
|
58 |
189-9084
|
Washer M8 lock zinc |
2 |
|
|
59 |
250-1320
|
Washer |
2 |
|
|
63 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
1 |
|
|
65 |
189-5094
|
Nut M6 |
1 |
|
|
66 |
999-0740
|
Nut M5-.8 hex stainless steel |
2 |
|
|
67 |
250-1424
|
Screw M5 x 40mm |
4 |
|
|
68 |
189-8730
|
Nut M5 x 7mm hex nylock zinc |
4 |
|
|
70 |
206-0950
|
Washer (OBSOLETE) |
1 |
|
|
71 |
189-9098
|
Washer flat stainles steel |
1 |
|
|
72 |
206-0871
|
Lock washer (OBSOLETE) |
1 |
|
|
