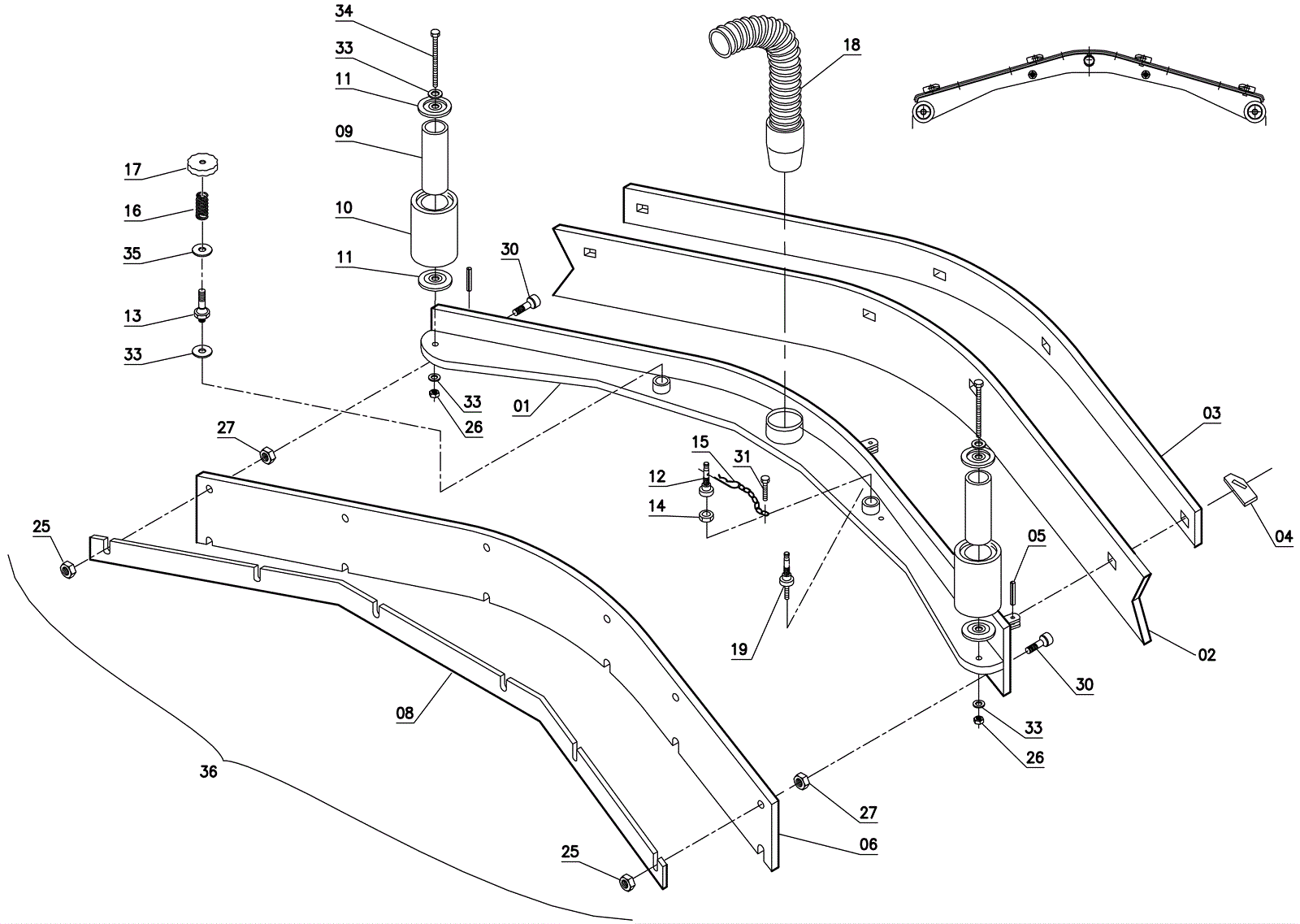

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
250-1502
|
Squeegee body |
1 |
|
|
2a |
250-1138
|
Squeegee blade gum rubber 33 inch rear |
1 |
|
|
2b |
250-1503
|
Squeegee blade 40 inch rear |
1 |
|
|
2c |
250-1504
|
Squeegee blade oil resistant |
1 |
|
|
3 |
250-1505
|
Blade |
1 |
|
|
4 |
250-1506
|
Plaque |
4 |
|
|
5 |
250-1507
|
Spring pin |
4 |
|
|
6 |
250-1139
|
Squeegee blade |
1 |
|
|
8 |
189-7582
|
Blade DRS |
1 |
|
|
9 |
189-9182
|
Pin |
2 |
|
|
10 |
250-1262
|
Wheel |
2 |
|
|
11 |
189-5159
|
Washer |
4 |
|
|
12 |
250-1508
|
Stud bolt |
1 |
(before 08.2002) |
|
13 |
206-5228
|
Stud bolt (OBSOLETE) |
1 |
|
|
14 |
206-0747
|
Nut (OBSOLETE) |
1 |
(before 08.2002) |
|
15 |
189-2540
|
Chain |
1 |
(before 08.2002) |
|
16 |
206-0033
|
Spring (OBSOLETE) |
1 |
|
|
17 |
189-6202
|
Knob |
1 |
|
|
18 |
250-1137
|
Vacuum hose 2 inches x 61 inches |
1 |
|
|
19 |
189-9179
|
Stud bolt |
1 |
(after 08.2002) |
|
26 |
999-1550
|
Nut M10-1.5 nylon insert lock |
2 |
|
|
27 |
250-1276
|
Nut |
2 |
|
|
30 |
206-0507
|
Screw |
2 |
|
|
33 |
999-9099
|
Washer M10 flat stainless steel |
5 |
|
|
34 |
250-1511
|
Screw M10 x 110mm |
2 |
|
|
35 |
189-6198
|
Flat washer |
2 |
|
|
36a |
250-1167
|
Squeegee assembly |
1 |
(before 08.2002) |
|
36b |
250-1166
|
32 inch squeegee assembly |
1 |
(after 08.2002) |
|
