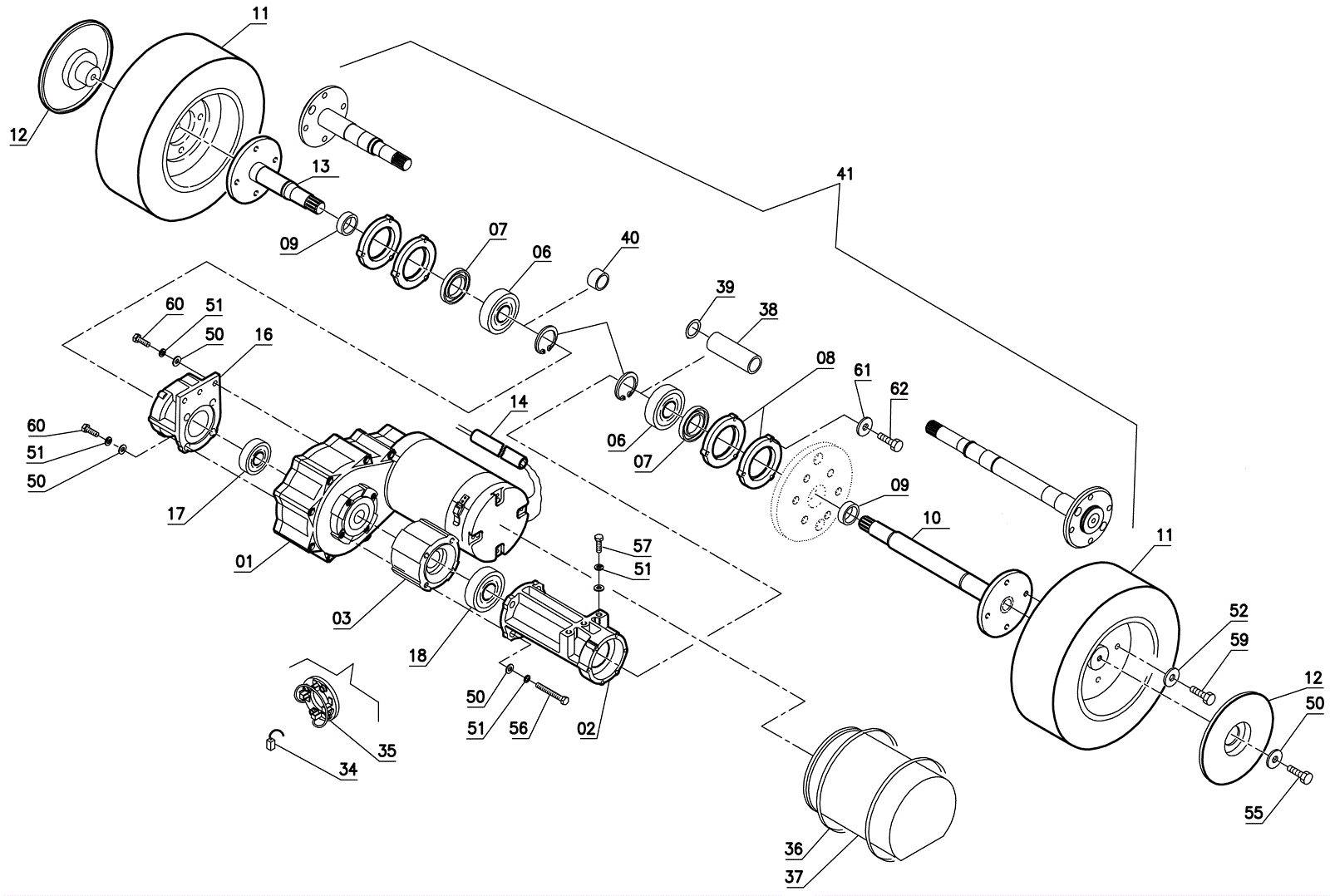

Wheel Assembly

#PartDescription ReqNotesAvailability
01 189-7591 Geared traction motor 1
02 250-1386 Left hand support 1
03 250-1387 Spacer 1
06 250-1147 Bearing 2
08 250-1388 Cover 4 (after SN 01005731)
09 250-1145 Spacer 2
10a 250-1389 Left hand axle shaft 1 (before 07.2002)
10b 250-1390 Left hand axle shaft 1 (after 07.2002)
11 189-4377 Rear wheel 2
12 250-1391 Wheel cover 2
13a 250-1392 Right hand axle shaft 1 (before 07.2002)
13b 250-1393 Right hand axle shaft 1 (after 07.2002)
14 250-1212 Sheath 1
16 250-1394 Support 1
17 250-1152 Bearing 1
18 250-1395 Bearing 1
33a 250-1149 Seeger ring 2 (before 07.2002)
33b 250-1396 Seeger ring 2 (after 07.2002)
34 250-1397 Carbon brush motor 4
35 250-1078 Carbon brush holder 1
37 250-1399 Shroud 1
38 250-1400 Spacer 1
39 250-1151 Shim ring 1
40 250-1150 Spacer 1
41 250-1155 Transaxle assembly complete 1 (includes 6-10, 13, 33, 38-40, 61 and 62)
50 250-1219 Washer 11
51 189-9084 Washer M8 lock zinc 14
55 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc 1
56 250-1385 Screw M8 x 60mm 4
57 206-1013 Screw (OBSOLETE) 4
59 250-1401 Screw M10 x 20mm 4
60 250-1402 Screw M8 x 22mm 4
62 206-0699 Screw (OBSOLETE) 3 (after SN 01005731)
