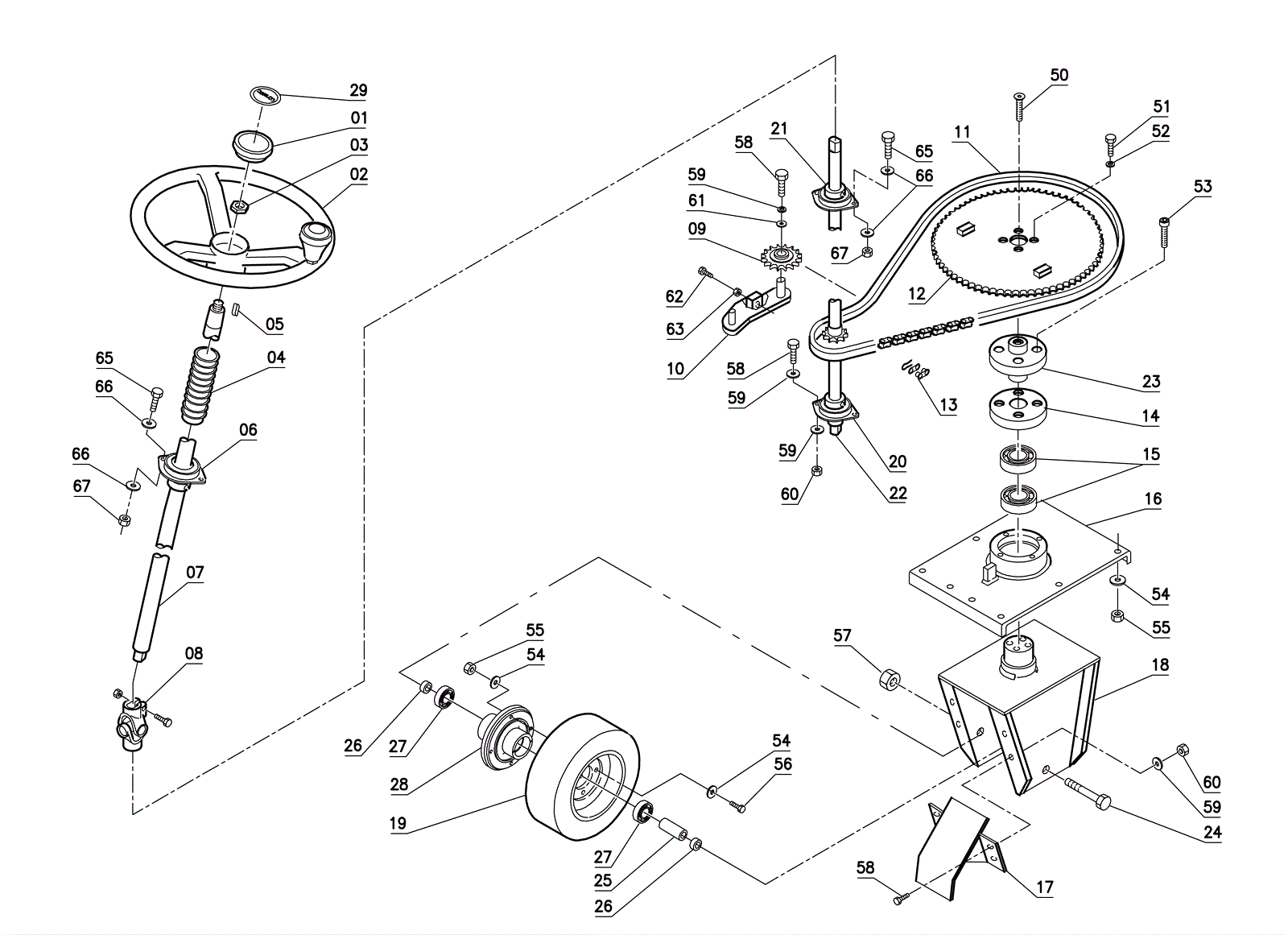

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
250-1355
|
Cap |
1 |
|
|
2 |
250-1356
|
Steering wheel assembly |
1 |
|
|
3 |
250-1357
|
Nut |
1 |
|
|
4 |
250-1358
|
Bellows |
1 |
|
|
5 |
250-1359
|
Key |
1 |
|
|
6 |
250-1360
|
Bearing |
1 |
|
|
7 |
250-1361
|
Shaft |
1 |
|
|
8 |
250-1362
|
Universal joint |
1 |
|
|
9 |
250-1363
|
Chain tightener |
1 |
|
|
10 |
250-1364
|
Support |
1 |
|
|
11 |
250-1365
|
Chain |
1 |
|
|
12 |
250-1366
|
Crown gear |
1 |
|
|
13 |
189-9100
|
Master chain link |
1 |
|
|
14 |
250-1368
|
Bearing support |
1 |
|
|
15 |
189-4573
|
Bearing |
2 |
|
|
16 |
250-1370
|
Plaque |
1 |
|
|
17 |
250-1371
|
Fender |
1 |
|
|
18 |
250-1372
|
Support wheels |
1 |
|
|
19 |
189-7575
|
Traction wheel |
1 |
|
|
20 |
250-1373
|
Bearing support |
1 |
|
|
21 |
250-1374
|
Support |
1 |
|
|
22 |
189-5764
|
Shaft with gear |
1 |
|
|
23 |
250-1376
|
Hub |
1 |
|
|
24 |
250-1377
|
Pin |
1 |
|
|
25 |
250-1378
|
Spacer |
1 |
|
|
26 |
250-1379
|
Spacer |
2 |
|
|
27 |
189-8647
|
Bearing |
2 |
|
|
28 |
250-1380
|
Wheel hub |
1 |
|
|
29 |
250-1381
|
Decal |
1 |
|
|
50 |
999-0771
|
Screw M8-1.25 x 40mm flat head socket |
1 |
|
|
51 |
250-1382
|
Screw M8 x 40mm |
4 |
|
|
52 |
189-9094
|
Washer M8 external serrated lock zinc |
4 |
|
|
53 |
250-1383
|
Screw M10 x 30mm |
4 |
|
|
54 |
999-9099
|
Washer M10 flat stainless steel |
4 |
|
|
55 |
999-1550
|
Nut M10-1.5 nylon insert lock |
4 |
|
|
56 |
999-0246
|
Bolt M10-1.5 x 35mm hex head full thread |
4 |
|
|
57 |
250-1384
|
Lock nut |
1 |
|
|
58 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
1 |
|
|
60 |
189-5094
|
Nut M6 |
4 |
|
|
61 |
206-5168
|
Washer (OBSOLETE) |
1 |
|
|
62 |
250-1385
|
Screw M8 x 60mm |
1 |
|
|
64 |
206-0848
|
Washer (OBSOLETE) |
1 |
|
|
65 |
999-1133
|
Bolt M8-1.25 x 20mm hex head full thread plain |
2 |
|
|
66 |
250-1219
|
Washer |
4 |
|
|
67 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
2 |
|
|
