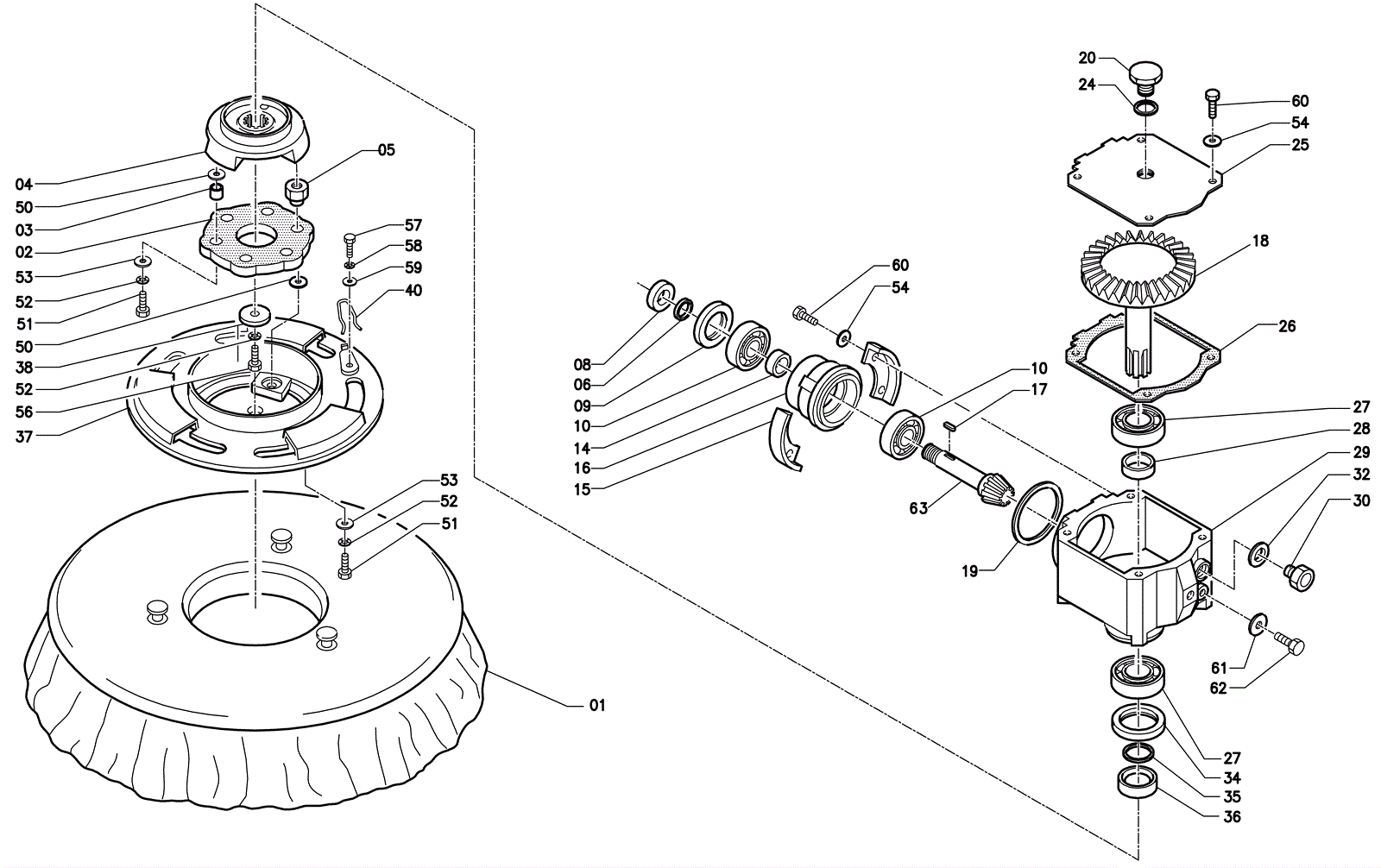

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
189-8546
|
Pad driver |
2 |
|
|
2 |
250-1290
|
Coupling |
2 |
|
|
4 |
250-1292
|
Flange |
2 |
|
|
6 |
189-9221
|
O-ring |
2 |
|
|
8 |
250-1295
|
Spacer |
2 |
|
|
9 |
250-1296
|
Oil seal |
2 |
|
|
10 |
250-1297
|
Bearing |
4 |
|
|
14 |
250-1298
|
Spacer |
2 |
|
|
15 |
250-1299
|
Bearing support |
4 |
|
|
16 |
250-1302
|
Support |
2 |
|
|
18a |
250-1301
|
Right hand bevel gear |
1 |
|
|
18b |
250-1304
|
Right hand lower bevel |
1 |
|
|
19 |
250-1306
|
Gasket |
2 |
|
|
20 |
250-1307
|
Breather |
2 |
|
|
24 |
250-1308
|
Gasket |
2 |
|
|
25 |
250-1309
|
Reduction gear cover |
2 |
|
|
26 |
250-1310
|
Gasket |
2 |
|
|
27 |
250-1311
|
Bearing |
4 |
|
|
28 |
250-1312
|
Spacer |
2 |
|
|
29 |
250-1313
|
Reduction gear box |
2 |
|
|
30 |
250-1314
|
Plug |
2 |
|
|
32 |
250-1315
|
Gasket |
2 |
|
|
34 |
250-1316
|
Oil seal |
2 |
|
|
35 |
250-1317
|
O-ring |
2 |
|
|
36 |
250-1318
|
Spacer |
2 |
|
|
38 |
250-1320
|
Washer |
2 |
|
|
50 |
206-0541
|
Washer (OBSOLETE) |
1 |
|
|
52 |
189-9084
|
Washer M8 lock zinc |
1 |
|
|
53 |
189-6198
|
Flat washer |
1 |
|
|
54 |
250-1322
|
Split washer |
1 |
|
|
56 |
189-9109
|
Screw |
1 |
|
|
57 |
250-1226
|
Screw |
1 |
|
|
59 |
206-5168
|
Washer (OBSOLETE) |
1 |
|
|
60 |
999-1133
|
Bolt M8-1.25 x 20mm hex head full thread plain |
1 |
|
|
61 |
999-9099
|
Washer M10 flat stainless steel |
1 |
|
|
62 |
250-1213
|
Screw |
1 |
|
|
63a |
250-1303
|
Left hand bevel gear |
1 |
|
|
63b |
250-1305
|
Left hand lower bevel |
1 |
|
|
