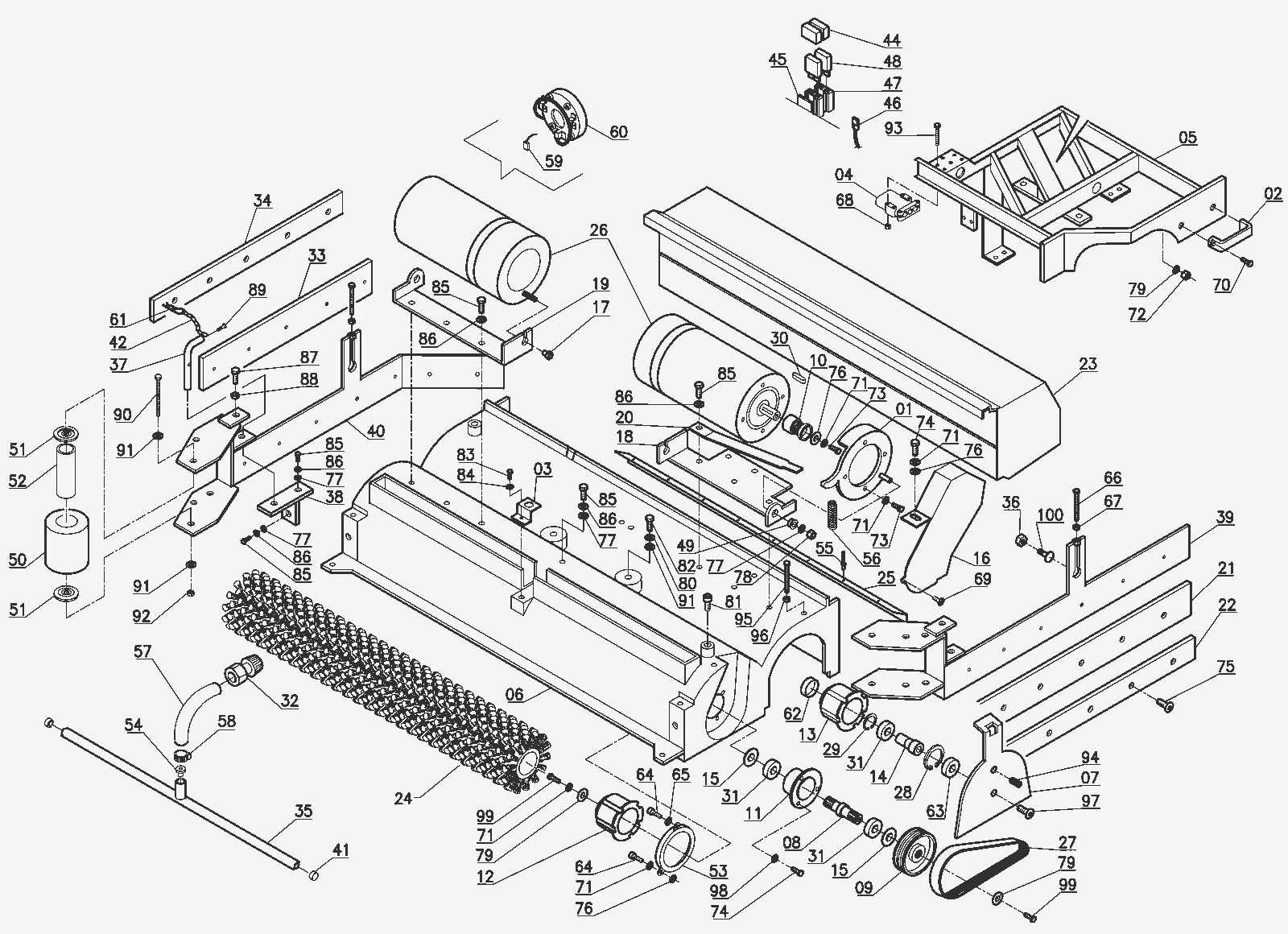

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
250-1230
|
Plaque |
2 |
|
|
2 |
189-9086
|
Handle |
1 |
|
|
3 |
250-1231
|
Support |
1 |
|
|
4a |
250-1232
|
Female connector |
1 |
|
|
4b |
250-1233
|
Connector |
1 |
|
|
5 |
250-1234
|
Coupling |
1 |
|
|
6 |
250-1235
|
Tunnel |
1 |
|
|
7 |
189-4394
|
Plaque |
2 |
|
|
8 |
189-4403
|
Brush hub kit |
2 |
|
|
9 |
189-4403
|
Brush hub kit |
2 |
|
|
10 |
250-1236
|
Pulley |
2 |
|
|
11 |
189-4406
|
Support |
2 |
|
|
12 |
189-4403
|
Brush hub kit |
2 |
|
|
13 |
250-1237
|
Front brush hub |
2 |
|
|
14 |
250-1238
|
Pin |
2 |
|
|
15 |
999-0972
|
Washer M14 flat |
4 |
|
|
16 |
250-1239
|
Cover |
2 |
|
|
17 |
250-1240
|
Bushing |
2 |
|
|
18 |
250-1241
|
Left hand motor support |
1 |
|
|
19 |
250-1242
|
Right hand motor support |
1 |
|
|
20 |
250-1243
|
Spring |
2 |
|
|
21 |
189-4395
|
Left hand splash guard |
1 |
|
|
22 |
250-1244
|
Left blade |
1 |
|
|
23 |
250-1245
|
Hopper |
1 |
|
|
24a |
189-4399
|
Cylindrical brush soft |
2 |
|
|
24b |
189-4400
|
Cylindrical brush stiff |
2 |
|
|
24c |
189-4401
|
Cylindrical brush standard |
2 |
|
|
24d |
189-4402
|
Cylindrical brush tynex grit |
2 |
|
|
25 |
250-1246
|
Blade |
1 |
|
|
26 |
189-4396
|
Motor |
2 |
|
|
27 |
189-4397
|
Brush drive belt |
2 |
|
|
28 |
250-1067
|
Seeger ring |
2 |
|
|
29 |
250-1068
|
Seeger ring |
2 |
|
|
31 |
189-2577
|
Bearing |
6 |
|
|
32 |
250-1200
|
Pipe |
1 |
|
|
33 |
189-4398
|
Right hand splash guard |
1 |
|
|
34 |
250-1249
|
Right hand blade |
1 |
|
|
35 |
250-1250
|
Pipe |
1 |
|
|
36 |
250-1251
|
Spacer |
2 |
|
|
37 |
250-1252
|
Pin |
2 |
|
|
38 |
250-1253
|
Coupling |
2 |
|
|
39 |
250-1254
|
Left hand support |
1 |
|
|
40 |
250-1255
|
Right hand support |
1 |
|
|
41 |
206-0880
|
Cover (OBSOLETE) |
2 |
|
|
42 |
250-1256
|
Chain |
2 |
|
|
44 |
189-5714
|
Cover |
2 |
|
|
45 |
189-3308
|
Fuse block end cap |
1 |
|
|
46 |
250-1258
|
Cable |
2 |
|
|
47 |
250-1259
|
Fuseholder |
2 |
|
|
48 |
250-1260
|
Maxifuse |
2 |
|
|
49 |
250-1261
|
Bushing |
2 |
|
|
50 |
250-1262
|
Wheel |
4 |
|
|
51 |
189-5159
|
Washer |
8 |
|
|
52 |
189-9182
|
Pin |
4 |
|
|
53 |
250-1264
|
Ring |
2 |
|
|
54 |
250-1265
|
Dowel |
2 |
|
|
55 |
154-9281
|
Rivet M4.8 x 14mm |
9 |
|
|
56 |
206-0490
|
Spring (OBSOLETE) |
2 |
|
|
57 |
250-1268
|
Hose |
1 |
|
|
58 |
250-1269
|
Clamp |
1 |
|
|
59 |
206-0472
|
Carbon brush motor (OBSOLETE) |
4 |
|
|
60 |
250-1078
|
Carbon brush holder |
1 |
|
|
61 |
250-1271
|
Clip |
2 |
|
|
62 |
250-1272
|
Cover |
2 |
|
|
63 |
250-1273
|
Oil seal |
2 |
|
|
64 |
999-1300
|
Screw M6-1 x 25mm socket head stainless steel |
1 |
|
|
66 |
250-1275
|
Screw M6 x 50mm |
1 |
|
|
67 |
250-1276
|
Nut |
1 |
|
|
68 |
189-8730
|
Nut M5 x 7mm hex nylock zinc |
1 |
|
|
70 |
206-0700
|
Screw (OBSOLETE) |
1 |
|
|
72 |
189-5094
|
Nut M6 |
1 |
|
|
73 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
1 |
|
|
74 |
206-5170
|
Screw |
1 |
|
|
75 |
189-1485
|
Screw |
1 |
|
|
77 |
250-1219
|
Washer |
1 |
|
|
78 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
1 |
|
|
79 |
206-5168
|
Washer (OBSOLETE) |
1 |
|
|
81 |
189-9109
|
Screw |
1 |
|
|
83 |
250-1282
|
Screw M5 x 25mm |
1 |
|
|
84 |
999-1594
|
Washer M5 external lock stainless steel |
1 |
|
|
85 |
999-1133
|
Bolt M8-1.25 x 20mm hex head full thread plain |
1 |
|
|
86 |
189-9084
|
Washer M8 lock zinc |
1 |
|
|
87 |
154-9242
|
Screw M8 x 30mm |
1 |
|
|
88 |
189-6214
|
Nut M8 |
1 |
|
|
89 |
250-1284
|
Screw M4 x 12mm |
1 |
|
|
90 |
250-1285
|
Screw M10 x 120mm |
1 |
|
|
91 |
999-9099
|
Washer M10 flat stainless steel |
1 |
|
|
92 |
999-1550
|
Nut M10-1.5 nylon insert lock |
1 |
|
|
93a |
250-1286
|
Screw M5 x 35mm |
1 |
|
|
93b |
206-1054
|
Screw (OBSOLETE) |
1 |
|
|
94 |
250-1265
|
Dowel |
1 |
|
|
95 |
250-1287
|
Screw M6 x 60mm |
1 |
|
|
96 |
189-9083
|
Nut M6 x 5 hex |
1 |
|
|
97 |
250-1288
|
Screw M10 x 16mm |
1 |
|
|
98 |
189-4404
|
Washer lock |
1 |
|
|
99 |
189-4405
|
Screw |
1 |
|
|
