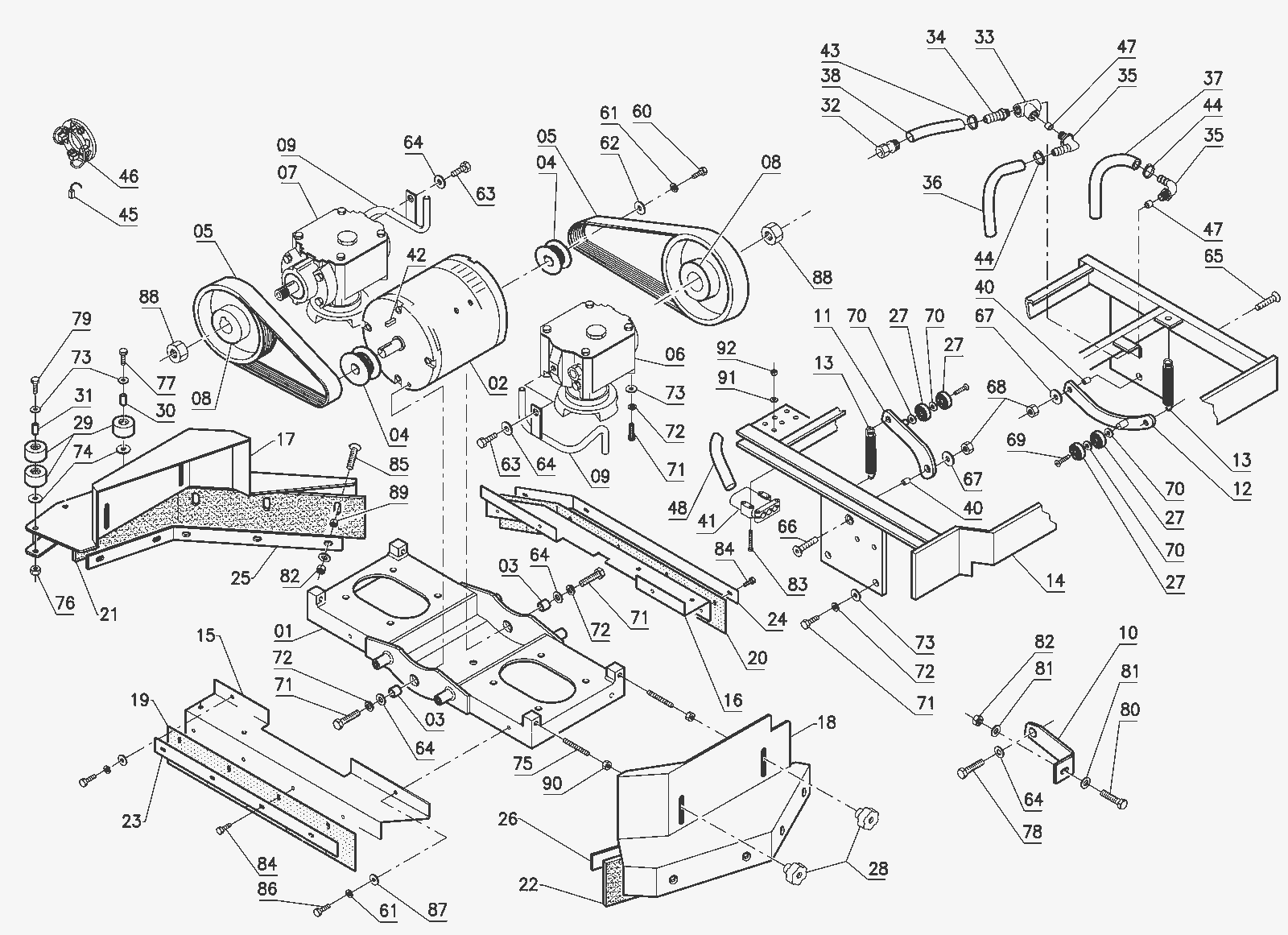

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
250-1169
|
Brush base |
1 |
|
|
2 |
289-0027
|
36v brush drive motor |
1 |
|
|
3 |
189-6197
|
Bushing |
2 |
|
|
4 |
250-1171
|
Pulley |
2 |
|
|
5 |
250-1172
|
Belt |
2 |
|
|
6 |
250-1173
|
Left gear reduction assembly |
1 |
|
|
7 |
250-1174
|
Right gear reduction assembly |
1 |
|
|
8 |
250-1175
|
Pulley |
2 |
|
|
9 |
250-1176
|
Pipe |
2 |
|
|
10 |
250-1177
|
Support |
1 |
|
|
11 |
250-1178
|
Tightener |
1 |
|
|
12 |
250-1179
|
Tightener |
1 |
|
|
13 |
250-1180
|
Spring |
2 |
|
|
14 |
250-1181
|
Coupling |
1 |
|
|
15a |
250-1182
|
Support |
1 |
|
|
15b |
250-1183
|
Support |
1 |
|
|
16 |
250-1184
|
Support |
1 |
|
|
17a |
250-1185
|
Support |
1 |
|
|
17b |
250-1186
|
Support |
1 |
|
|
18a |
250-1187
|
Support |
1 |
|
|
18b |
250-1188
|
Support |
1 |
|
|
19a |
250-1189
|
Splash guard |
1 |
|
|
19b |
250-1190
|
Splash guard |
1 |
|
|
20 |
250-1191
|
Support |
1 |
|
|
21a |
189-7583
|
Splash guard |
1 |
|
|
21b |
189-3225
|
Right hand splash guard |
1 |
|
|
22a |
250-1143
|
Wiper |
1 |
|
|
22b |
250-1143
|
Wiper |
1 |
|
|
23a |
250-1193
|
Blade |
1 |
|
|
23b |
250-1194
|
Blade |
1 |
|
|
24 |
250-1195
|
Blade |
1 |
|
|
25a |
250-1196
|
Blade |
1 |
|
|
25b |
250-1197
|
Blade |
1 |
|
|
26a |
250-1198
|
Blade |
1 |
|
|
26b |
250-1199
|
Blade |
1 |
|
|
27 |
189-2577
|
Bearing |
4 |
|
|
28 |
206-0665
|
Knob (OBSOLETE) |
4 |
|
|
29 |
189-6218
|
Wheel |
4 |
|
|
30 |
189-6219
|
Bushing |
2 |
|
|
31 |
189-2543
|
Bushing |
2 |
|
|
32 |
250-1200
|
Pipe |
1 |
|
|
33 |
189-4631
|
1/2 inch pipe t-fitting |
1 |
|
|
34 |
250-1202
|
Connector |
1 |
|
|
35 |
189-5458
|
Fitting |
2 |
|
|
36 |
250-1204
|
Tube |
1 |
|
|
37 |
250-1205
|
Pipe |
1 |
|
|
38 |
250-1206
|
Hose |
1 |
|
|
40 |
250-1207
|
Bushing |
2 |
|
|
41 |
189-6371
|
Male connector (French style) |
1 |
|
|
43 |
206-0620
|
Clamp (OBSOLETE) |
1 |
|
|
44 |
189-6325
|
Wire tie |
2 |
|
|
45 |
189-4424
|
Carbon brush |
4 |
|
|
46 |
189-9106
|
Carbon brush holder assembly |
1 |
|
|
47 |
250-1211
|
Spacer |
2 |
|
|
48 |
250-1212
|
Sheath |
1 |
|
|
60 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
1 |
|
|
62 |
206-5168
|
Washer (OBSOLETE) |
1 |
|
|
63 |
250-1213
|
Screw |
1 |
|
|
64 |
999-9099
|
Washer M10 flat stainless steel |
1 |
|
|
65 |
999-0246
|
Bolt M10-1.5 x 35mm hex head full thread |
1 |
|
|
66 |
250-1214
|
Screw |
1 |
|
|
67 |
250-1215
|
Washer |
1 |
|
|
68 |
999-1550
|
Nut M10-1.5 nylon insert lock |
1 |
|
|
69 |
250-1217
|
Screw |
1 |
|
|
70 |
250-1218
|
Washer |
1 |
|
|
71 |
999-0581
|
Bolt M8-1.25 x 25mm hex head full thread zinc |
1 |
|
|
72 |
189-9084
|
Washer M8 lock zinc |
1 |
|
|
73 |
250-1219
|
Washer |
1 |
|
|
74 |
189-6198
|
Flat washer |
1 |
|
|
75 |
250-1220
|
Dowel |
1 |
|
|
76 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
1 |
|
|
78 |
250-1222
|
Screw |
1 |
|
|
79 |
250-1223
|
Screw |
1 |
|
|
81 |
999-6714
|
Washer M6 x 12mm flat stainless steel |
1 |
|
|
82 |
189-5094
|
Nut M6 |
1 |
|
|
83 |
250-1224
|
Screw |
1 |
|
|
84 |
250-1225
|
Screw |
1 |
|
|
85 |
999-1610
|
Screw M6-1 x 25mm flat head socket stainless steel |
1 |
|
|
86 |
250-1226
|
Screw |
1 |
|
|
87 |
206-0578
|
Washer (OBSOLETE) |
1 |
|
|
88 |
206-0577
|
Nut lock (OBSOLETE) |
1 |
|
|
