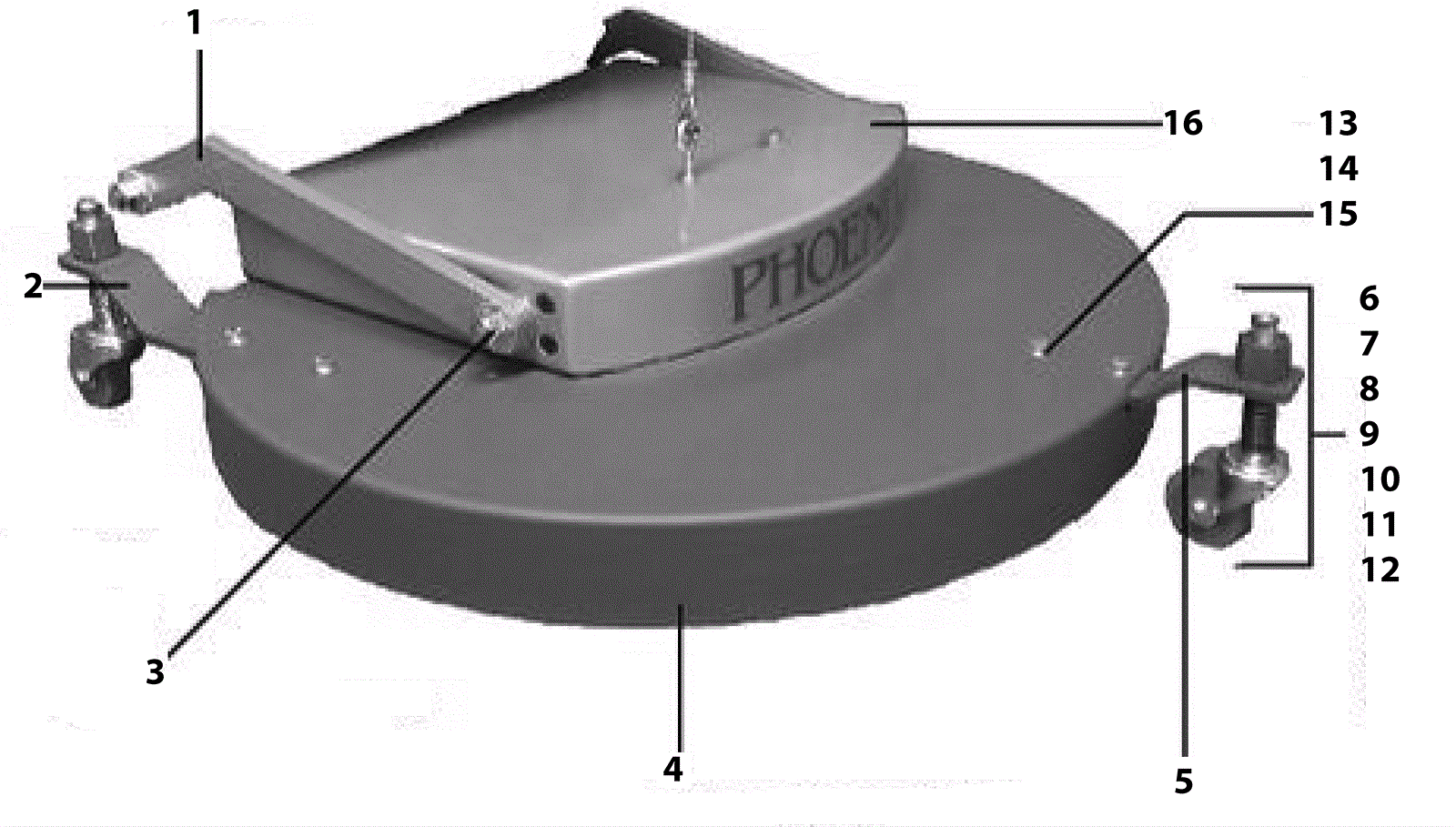

PHOENIXTITANTWIN Rear Unit Assembly-3/4 View

#PartDescriptionPriceReqNotesAvailability
1 246-0129 Rear housing support arm Call for price 1 usually ships 1-5 days
2 246-0130 Long arm caster bracket Call for price 1 usually ships 1-5 days
3a 246-0106 Arm mounting plate (short) Call for price 1 usually ships 1-5 days
3b 999-0608 Washer 1/2 flat brass $1.08 1 ships same day
3c 246-0098 Nut 1/2-13 stover lock Call for price 1 usually ships 1-5 days
3d 999-1810 Screw 1/4-20 x 1 flat head socket black finish $0.99 4 ships same day
4 246-0131 Rear pad driver cover Call for price 1 usually ships 1-5 days
5 246-0132 Short arm caster bracket Call for price 1 usually ships 1-5 days
6 246-0138 E-clip external retaining ring Call for price 1 usually ships 1-5 days
7 246-0137 1 inch threaded hex bushing Call for price 1 usually ships 1-5 days
8 246-0136 Caster stem Call for price 1 usually ships 1-5 days
9 246-0135 Caster spring Call for price 1 usually ships 1-5 days
10 246-0134 2 inch swivel caster with wheel Call for price 1 usually ships 1-5 days
11 246-0133 Washer 3/8 internal tooth Call for price 1 usually ships 1-5 days
12 246-0094 Nut 3/8-16 Stover lock Call for price 1 usually ships 1-5 days
13 999-6743 Screw 1/4-20 x 3/4 socket cap hex head stainless steel $0.99 1 usually ships 11-24 days
14 999-0060 Washer 1/4 split lock plain finish $0.99 1 ships same day
15 999-0123 Washer 1/4 SAE flat zinc plated $0.99 1 ships same day
16 246-0139 Rear drive housing Call for price 1 usually ships 1-5 days
