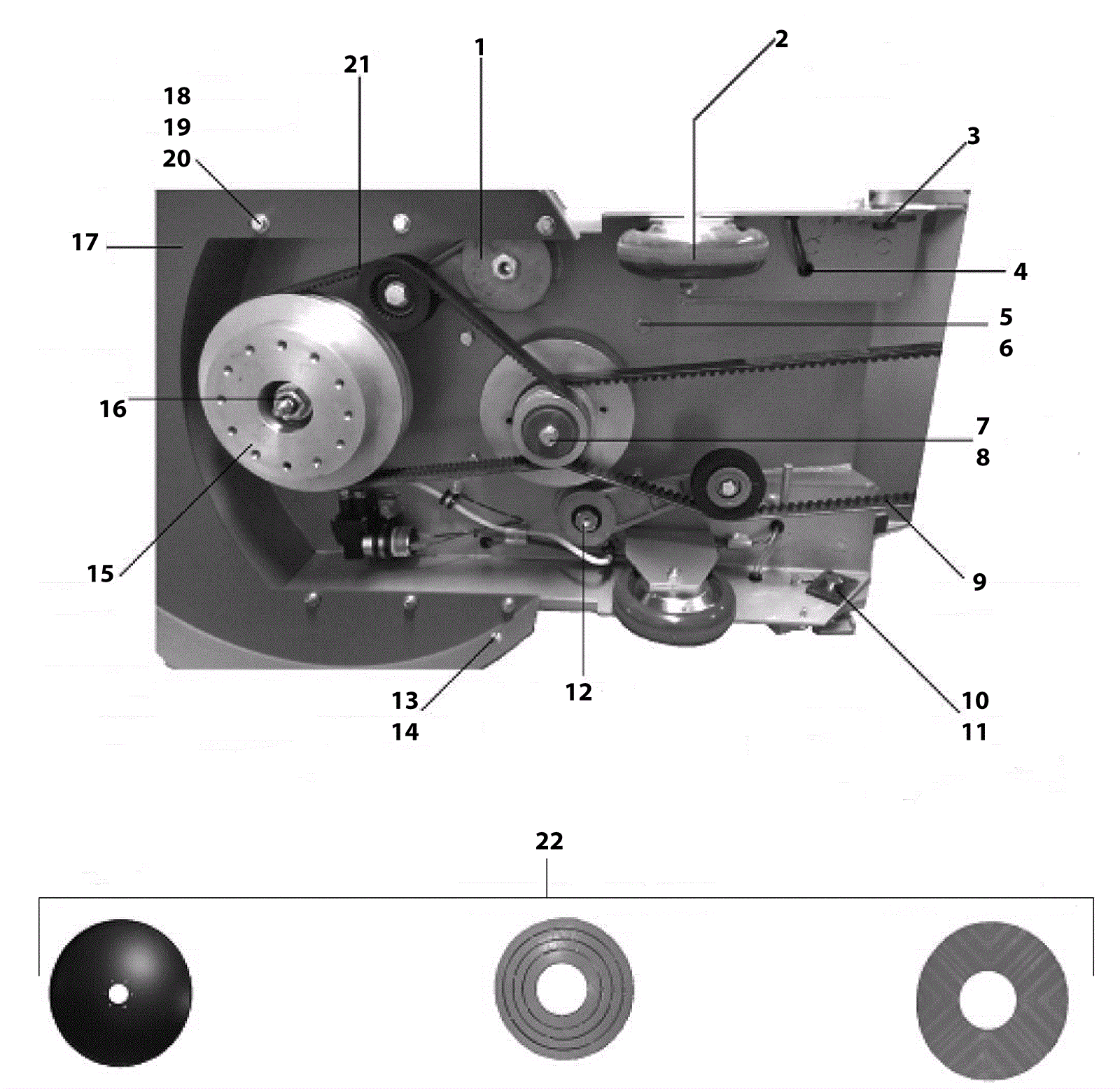

PHOENIXTITANTWIN Main Body Assembly-Bottom View

#PartDescriptionPriceReqNotesAvailability
1a 246-0103 Front tension arm complete Call for price 1 usually ships 1-5 days
1b 246-0104 Short tension arm Call for price 1 usually ships 1-5 days
1c 246-0105 Front idler wheel with bushing Call for price 1 usually ships 1-5 days
1d 999-1573 Screw 1/2-13 x 2 1/2 hex head stainless steel $9.75 2 usually ships 1-5 days
1e 999-0202 Nut 1/2-13 hex plain finish $0.99 1 ships same day
1f 999-0126 Washer 1/2 split lock $1.28 1 ships same day
2a 246-0023 Slotted shim $7.14 1 usually ships 16-28 days
2b 246-0068 Wheel bracket $54.08 1 usually ships 16-28 days
2c 246-0001 Wheel 5 inch $52.92 1 usually ships 1-5 days
2d 999-0390 Bolt 3/8-16 x 2 1/2 hex hd grade 5 zinc plated $1.19 1 ships same day
2e 246-0094 Nut 3/8-16 Stover lock Call for price 1 usually ships 1-5 days
3a 246-0106 Arm mounting plate (short) Call for price 1 usually ships 1-5 days
3b 999-1810 Screw 1/4-20 x 1 flat head socket black finish $0.99 4 ships same day
4 246-0083 Grommet Call for price 5 usually ships 1-5 days
5 246-0107 Screw 3/8-16 x 1 hex head cap Call for price 4 usually ships 1-5 days
6 999-0034 Washer 3/8 split lock plain finish $1.82 4 ships same day
7 246-0108 Centrifugal clutch Call for price 1 usually ships 1-5 days
8 999-9147 Screw 7/16-20 x 1 hex cap stainless steel grade 316 $4.80 1 usually ships 11-24 days
9 246-0109 Bx-62 cogged v-belt Call for price 1 usually ships 1-5 days
10 246-0110 Arm mounting plate (long) Call for price 1 usually ships 1-5 days
11 999-1810 Screw 1/4-20 x 1 flat head socket black finish $0.99 4 ships same day
12a 246-0114 Long arm tensioner Call for price 1 usually ships 1-5 days
12b 999-0208 Bolt 7/16-20 x 1 1/2 hex head grade 5 zinc plated $0.99 1 ships same day
12c 999-0034 Washer 3/8 split lock plain finish $1.82 1 ships same day
13 999-9069 Bolt 5/16-18 x 3/4 carriage head $0.99 4 usually ships 1-5 days
14 999-0430 Nut 5/16-18 hex jam plain finish $0.99 8 ships same day
15a 246-0017 Pulley hub assembly $330.66 1 usually ships 16-28 days
15b 246-0117 Pulley hub Call for price 1 usually ships 1-5 days
15c 246-0116 Bearing Call for price 1 usually ships 1-5 days
15d 246-0115 Internal retaining ring Call for price 1 usually ships 1-5 days
16a 246-0119 Titan twin front spindle Call for price 1 usually ships 1-5 days
16b 999-0630 Washer 3/4 SAE flat $0.99 1 ships same day
16c 246-0118 Nut 3/4-10 finish jam Call for price 1 usually ships 1-5 days
17 246-0014 Front pad drive cover $244.94 1 usually ships 16-28 days
18 999-6743 Screw 1/4-20 x 3/4 socket cap hex head stainless steel $0.99 6 usually ships 11-24 days
19 999-0060 Washer 1/4 split lock plain finish $0.99 6 ships same day
20 999-0123 Washer 1/4 SAE flat zinc plated $0.99 6 ships same day
21 246-0011 AX37 belt $23.32 1 usually ships 1-5 days
22a N/A Not available Call for price 1 (includes 22b-22d) usually ships 3-26 days
22b 246-0113 Pad driver plate Call for price 1 usually ships 1-5 days
22c 246-0112 Adhesive drive foam Call for price 1 usually ships 1-5 days
22d 246-0111 Insta-lock pad driver Call for price 1 usually ships 1-5 days
