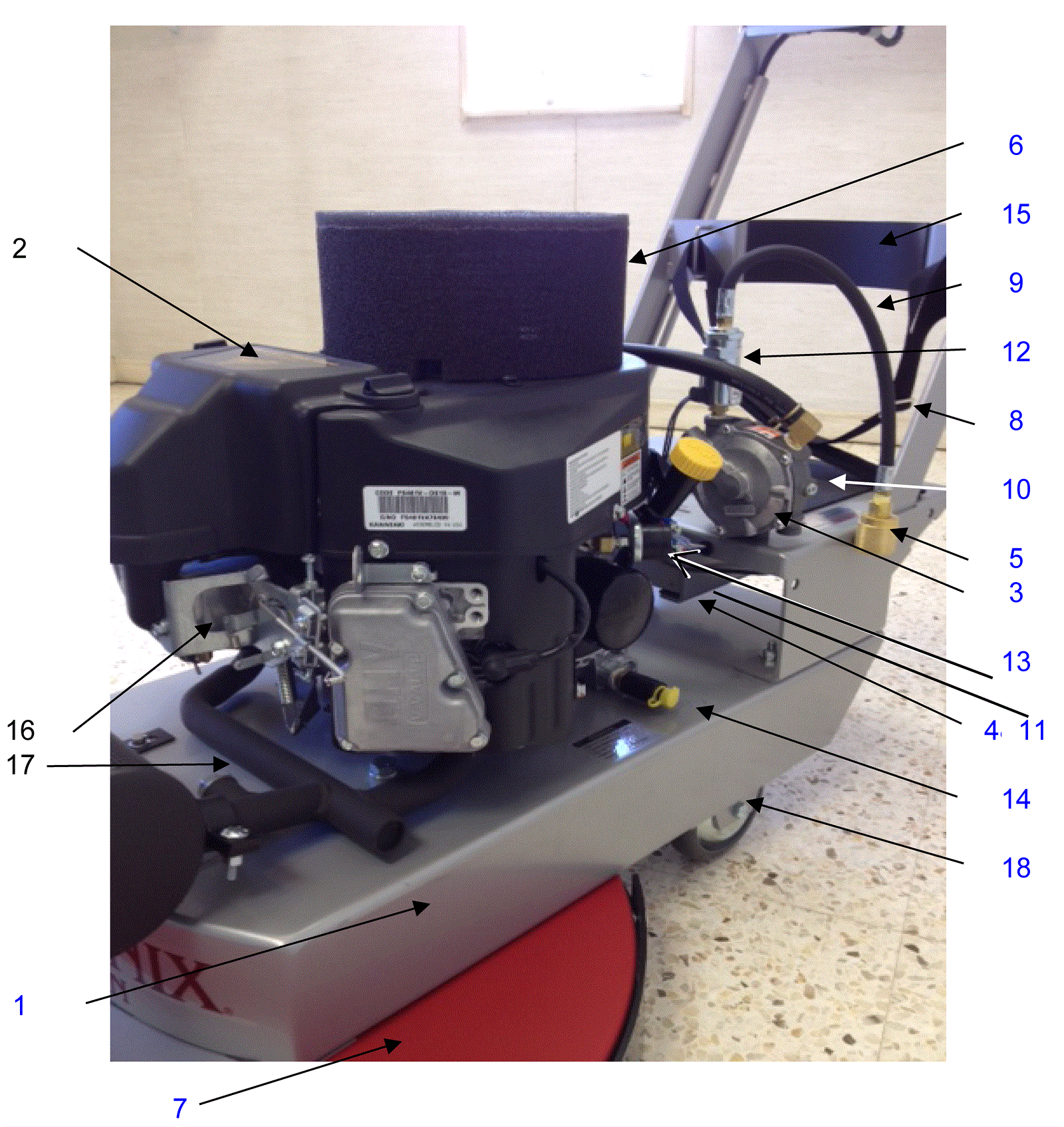

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
246-0022
|
Main body |
1 |
|
|
2 |
246-0050
|
Kawasaki 603CC engine |
1 |
|
|
3 |
246-0058
|
Beam regulator |
1 |
|
|
4 |
246-0059
|
Battery hold down |
1 |
|
|
5 |
246-0013
|
Fuel coupler |
1 |
|
|
6 |
246-0060
|
Filter cage |
1 |
|
|
7 |
246-0014
|
Front pad drive cover |
1 |
|
|
8 |
246-0061
|
Tank strap clip |
1 |
|
|
9 |
246-0012
|
15 1/2 inch lp hose |
1 |
|
|
10 |
246-0062
|
Rubber tank pad |
1 |
|
|
11 |
162-0001
|
12V 35Ah AGM battery |
1 |
(12V battery) |
|
12 |
246-0063
|
Fuel lock |
1 |
|
|
13 |
246-0064
|
Oil press switch with adapters |
1 |
|
|
14 |
246-0065
|
Oil drain valve with cap |
1 |
|
|
15 |
246-0066
|
Rubber tank guard |
1 |
|
|
16 |
246-0067
|
Carburetor with orifice |
1 |
|
|
17 |
246-0056
|
Exhaust manifold (FS481V) |
1 |
|
|
18 |
246-0068
|
Wheel bracket |
1 |
|
|
