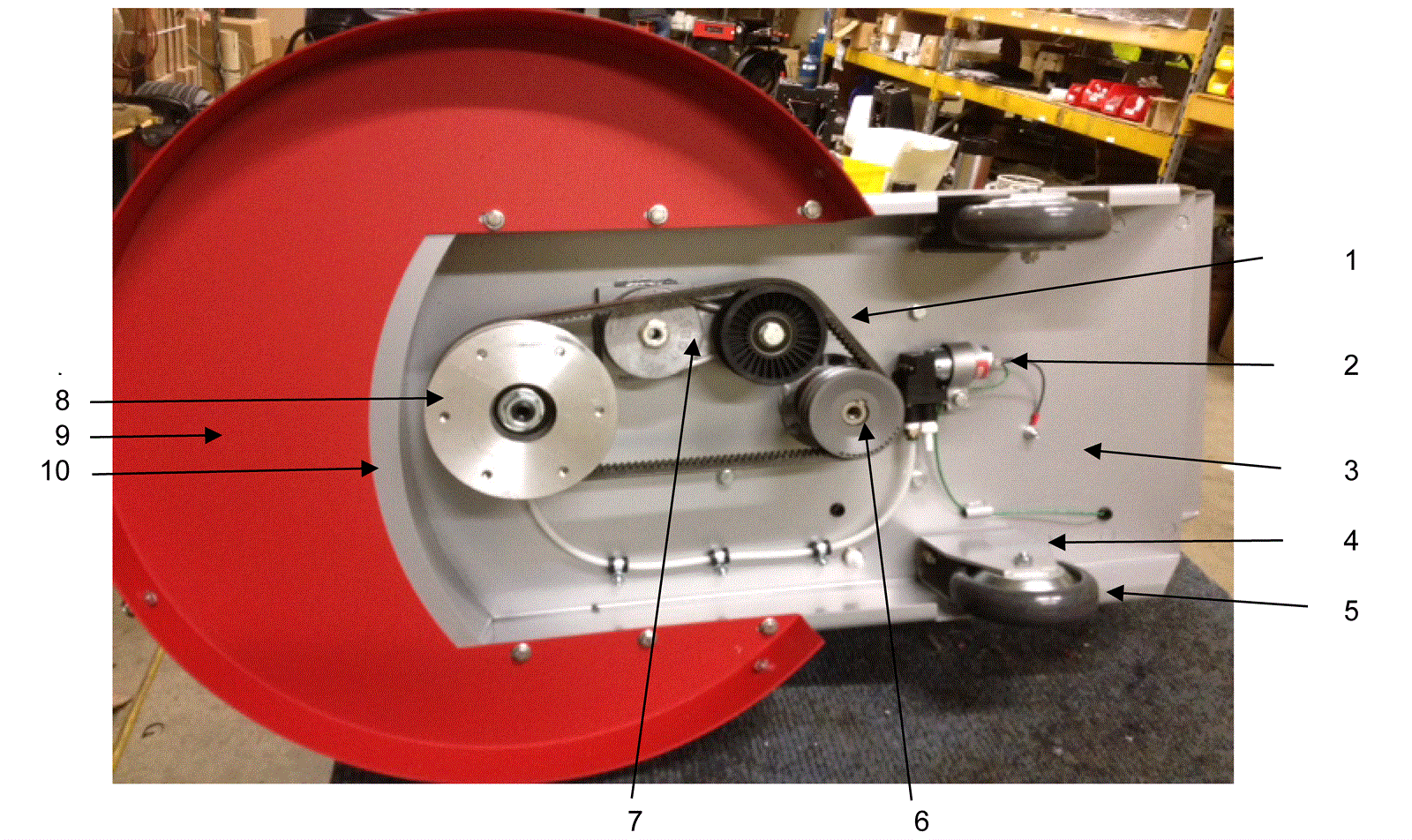

TITAN 24 Bottom Assembly

#PartDescriptionPriceReqNotesAvailability
1 246-0020 Belt $29.39 1 usually ships 16-28 days
2 246-0021 12V pump $328.82 1 usually ships 16-28 days
3 246-0022 Main body $787.70 1 usually ships 16-28 days
4 246-0023 Slotted shim $7.14 1 usually ships 16-28 days
5 246-0001 Wheel 5 inch $52.92 1 usually ships 1-5 days
6 246-0024 Rear pulley $112.64 1 usually ships 16-28 days
7 246-0025 Assembled tension hub $227.79 1 usually ships 16-28 days
8 246-0017 Pulley hub assembly $330.66 1 usually ships 16-28 days
9 246-0014 Front pad drive cover $244.94 1 usually ships 16-28 days
10 246-0027 Pad drive cover filler $57.86 1 usually ships 16-28 days
