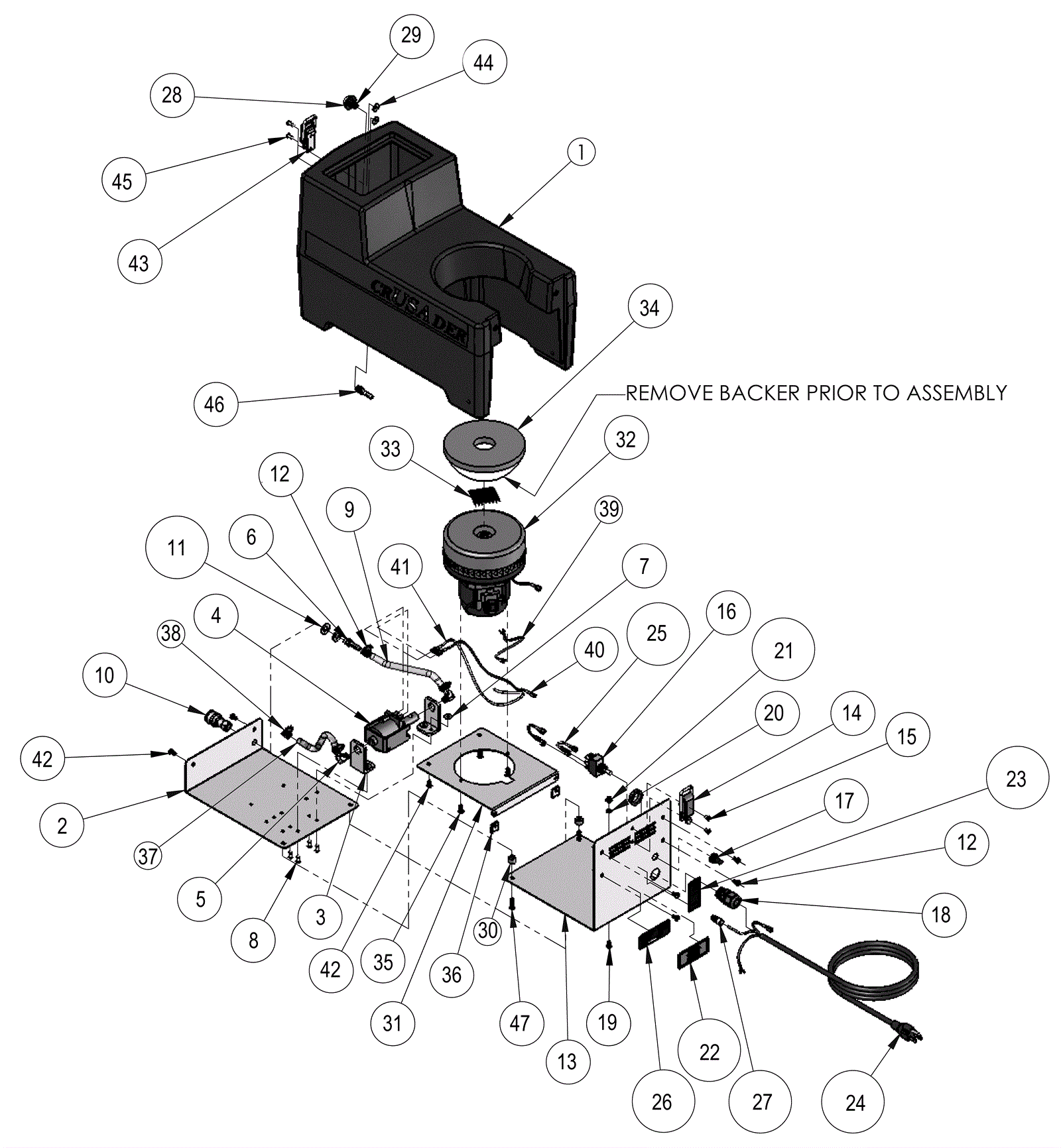

3000B Solution Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 245-0037 Solution tank $127.78 1 usually ships 1-5 days
2 245-0038 Front panel $28.75 1 usually ships 1-5 days
3 245-0039 Rubber pump bracket $10.38 2 usually ships 1-5 days
4 245-0040 Oscillating pump $99.20 1 usually ships 3-13 days
5 245-0041 1/4 inch right angle hose barb $6.00 2 usually ships 3-13 days
6 245-0042 1/4 inch straight hose barb $3.19 1 usually ships 1-5 days
7 245-0043 Washer 3/16 $1.09 4 usually ships 1-5 days
8 245-0044 Rivet $1.09 4 usually ships 1-5 days
9 245-0045 Hose 1/4 x 7 1/4 inch $2.40 1 usually ships 1-5 days
10 245-0046 1/8 inch female coupler $23.96 1 usually ships 3-13 days
11 245-0047 Washer 3/8 $1.09 2 usually ships 1-5 days
12 245-0048 Hose clamp $2.00 2 usually ships 1-5 days
13 245-0049 Rear panel $28.75 1 usually ships 1-5 days
14 245-0050 Latch $6.39 1 usually ships 1-5 days
15 245-0044 Rivet $1.09 2 usually ships 1-5 days
16 245-0051 3 position switch $27.95 1 usually ships 3-13 days
17 245-0052 Switch boot $3.99 1 usually ships 1-5 days
18 245-0053 Strain relief and nut $7.99 1 usually ships 1-5 days
19 999-0571 Screw 10-24 x 3/8 pan head phillips stainless steel $0.99 1 ships same day
20 245-0054 Ground nut $1.09 1 usually ships 1-5 days
21 245-0055 Nut #10 nylon lock $1.09 1 usually ships 3-13 days
22 245-0056 Warning label $1.60 1 usually ships 1-5 days
23 245-0057 Switch label $1.60 1 usually ships 1-5 days
24 245-0058 25 foot power cord $39.60 1 usually ships 3-13 days
25 245-0059 3 inch jumper with terminals $1.09 2 usually ships 1-5 days
26 245-0060 Nameplate $1.60 1 usually ships 1-5 days
27 245-0061 Orange wire nut $1.09 1 usually ships 1-5 days
28 245-0062 Small suction screen $7.99 1 usually ships 1-5 days
29 245-0063 1/8 inch nipple $3.19 1 usually ships 1-5 days
30 245-0064 3/8 inch spacer $1.09 2 usually ships 3-13 days
31 245-0065 Motor plate $23.96 1 usually ships 3-13 days
32 245-0090 Vacuum motor $121.02 1 usually ships 3-13 days
33 245-0066 Motor screen $1.60 1 usually ships 3-13 days
34 245-0067 Motor gasket $9.58 1 usually ships 3-13 days
35 245-0091 Screw #10 x 1/2 flat head phillips type A $1.09 2 usually ships 1-5 days
36 245-0073 Nut $1.09 2 usually ships 1-5 days
37 245-0072 Hose 1/4 x 4 1/4 inch $1.60 1 usually ships 1-5 days
38 245-0048 Hose clamp $2.00 2 usually ships 1-5 days
39 245-0071 Ground lead $1.60 1 usually ships 1-5 days
40 245-0068 12 inch lead assembly (black) $1.09 1 usually ships 1-5 days
41 245-0069 10 inch lead assembly (white) $1.09 1 usually ships 1-5 days
42 999-0571 Screw 10-24 x 3/8 pan head phillips stainless steel $0.99 8 ships same day
43 245-0050 Latch $6.39 1 usually ships 1-5 days
44 245-0043 Washer 3/16 $1.09 2 usually ships 1-5 days
45 245-0070 Rivet $1.09 2 usually ships 1-5 days
46 245-0042 1/4 inch straight hose barb $3.19 1 usually ships 1-5 days
47 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel $0.99 2 ships same day
