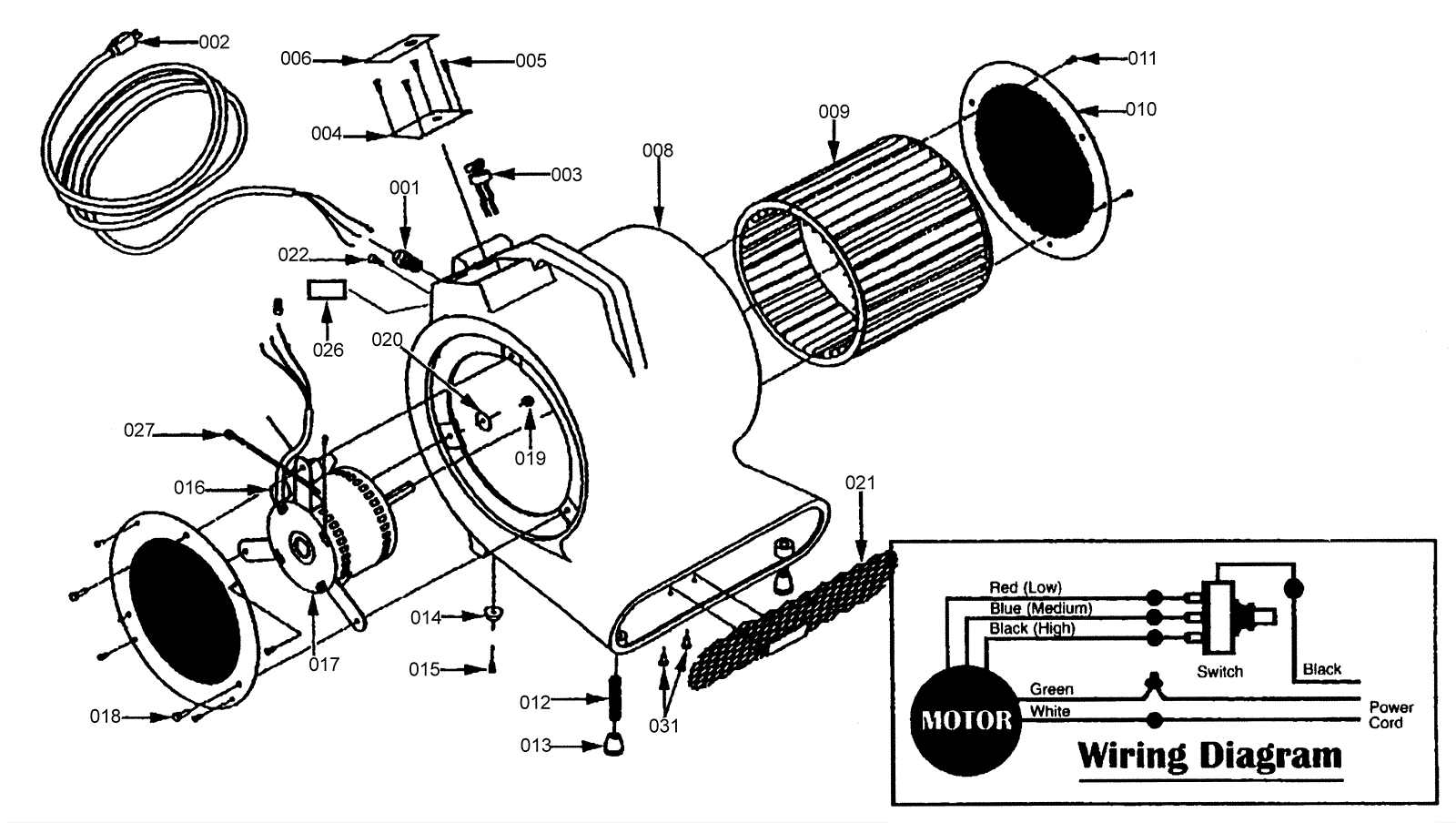

3500 Entire Assembly

#PartDescriptionPriceReqNotesAvailability
002 245-0058 25 foot power cord $39.60 1 usually ships 12-20 days
003a 245-0026 4 position switch with knob $33.01 1 (before 2004) (round switch) ships same day
003b 245-0124 Switch assembly $38.58 1 (after 2004) (rectangle switch) usually ships 12-20 days
004a 245-0027 Switch face plate $3.63 1 (before 2004) usually ships 12-20 days
004b 245-0122 Faceplate $2.90 1 (after 2004) usually ships 12-20 days
005 245-0028 Screw #6 x 1/2 tapping $1.09 4 usually ships 12-20 days
006a 245-0029 Switch decal $3.99 1 (before 2004) usually ships 12-20 days
006b 245-0029 Switch decal $3.99 1 (after 2004) usually ships 12-20 days
008a 245-0030 Housing black $143.75 1 usually ships 1-5 days
008b 245-0031 Housing blue $143.75 1 usually ships 1-5 days
009 245-0032 Fan $93.69 1 usually ships 12-20 days
010 245-0120 Side screen $12.12 1 usually ships 12-20 days
N/S 245-0182 Switch assembly $31.94 1 (includes 3a, 4a-6b) usually ships 12-20 days
