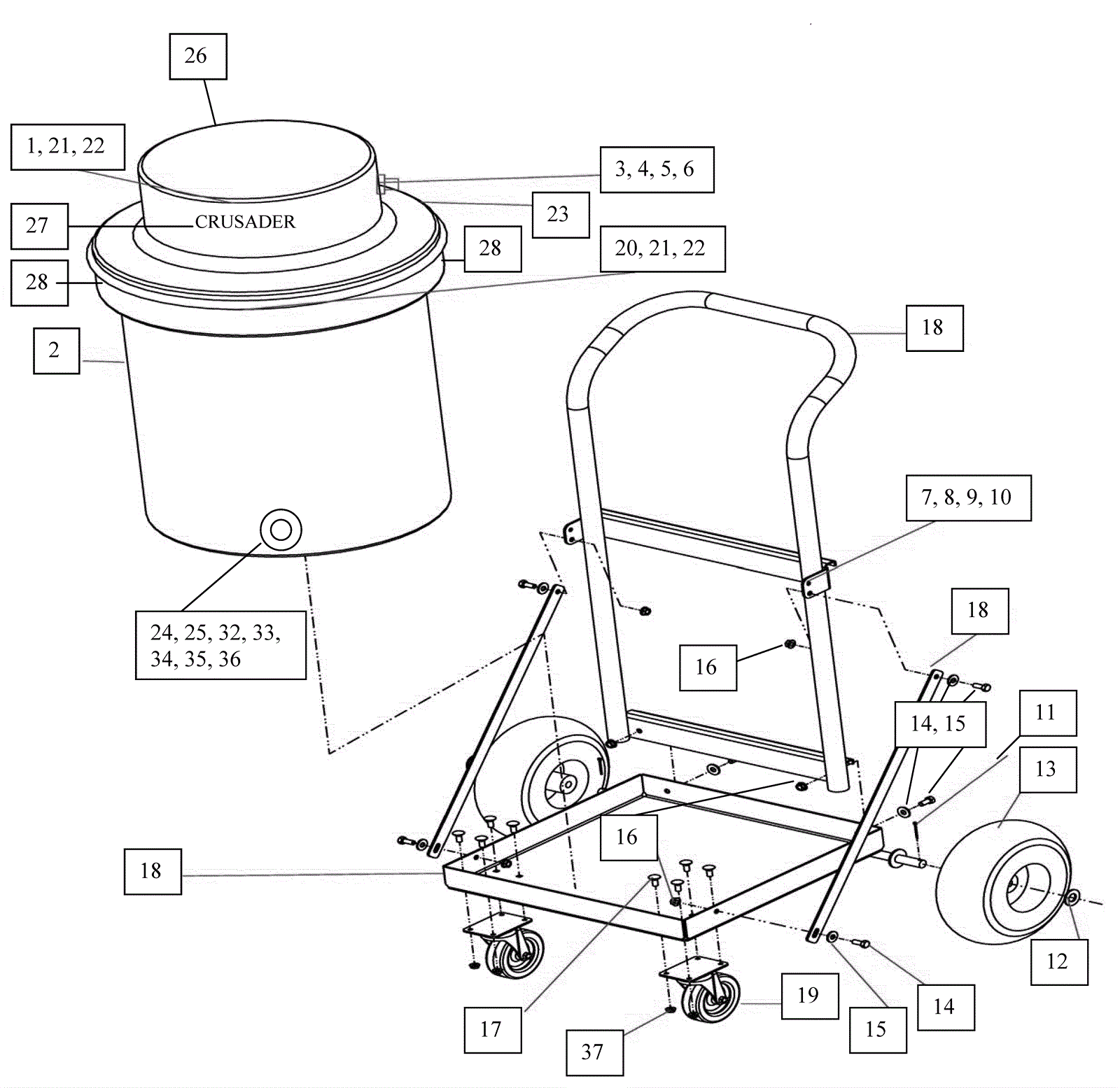

M1050-30 Main Assembly

#PartDescriptionPriceReqNotesAvailability
1 245-0005 Latch $5.50 2 (not shown) usually ships 12-20 days
2 245-0159 Tank $181.50 1 usually ships 12-20 days
3 245-0004 Intake $6.60 1 usually ships 12-20 days
4 245-0013 Deflector elbow $34.85 1 (not shown) usually ships 12-20 days
5 245-0014 Intake gasket $2.20 1 (not shown) usually ships 12-20 days
6a 245-0175 Deflector extension $2.76 1 (not shown) usually ships 12-20 days
6b 245-0176 2 3/4 inch Stainless hose clamp $6.06 1 (not shown) (for 2008EXT) usually ships 12-20 days
7 245-0177 Ratchet strap assembly $27.27 1 (not shown) usually ships 12-20 days
8 245-0163 5/16 inch-18 bolt $1.09 1 (not shown) usually ships 12-20 days
9 245-0164 5/16 inchflat washer $1.09 1 (not shown) usually ships 12-20 days
10 245-0165 5/16 inch-18 nylon nut $1.09 1 (not shown) usually ships 12-20 days
11 245-0160 Cotter pin $1.09 2 usually ships 12-20 days
12 245-0161 5/8 inch washer $1.09 2 usually ships 12-20 days
13 245-0162 10 inch Wheel $43.56 2 (Note: grease axle before assembling) usually ships 12-20 days
14 245-0163 5/16 inch-18 bolt $1.09 6 usually ships 12-20 days
15 245-0164 5/16 inchflat washer $1.09 6 usually ships 12-20 days
16 245-0165 5/16 inch-18 nylon nut $1.09 6 usually ships 12-20 days
17 245-0166 Carriage bolt 1/4 inch $1.09 8 usually ships 12-20 days
18 245-0167 Fabricated 30 gallon vac cart $393.25 1 usually ships 12-20 days
19 245-0168 Bolt on 4 inch caster $36.31 2 usually ships 12-20 days
21 245-0070 Rivet $1.09 2 (not shown) usually ships 1-5 days
22 245-0043 Washer 3/16 $1.09 8 (not shown) usually ships 1-5 days
23 245-0178 3 piece drum gasket set $50.52 8 (not shown) usually ships 12-20 days
24 245-0011 T drain plug $88.02 1 usually ships 12-20 days
25 245-0179 Splicing terminal $1.09 1 (not shown) usually ships 12-20 days
26 245-0181 Painted 30 gallon drum adaptor Call for price 1 usually ships 12-20 days
27 245-0169 Crusader decal $5.45 2 usually ships 12-20 days
28 245-0180 Handle $20.21 2 (not shown) usually ships 12-20 days
32 245-0170 1 1/2 inch die cast metal nut $7.35 1 usually ships 12-20 days
33 245-0171 4' Drain hose $55.01 1 usually ships 12-20 days
34 245-0172 Nylon intake $7.26 1 usually ships 12-20 days
35 245-0014 Intake gasket $2.20 1 (Used for drain on inside of tank in conjunction with 2007A die cast metal nut) usually ships 12-20 days
36 245-0173 1 3/4 inch stainless steel clamp $3.63 1 usually ships 12-20 days
37 245-0174 1/4 inch-20 nylon nut $1.09 8 usually ships 12-20 days
N/S 245-0022 Hose with swivel cuff - 10 ft $53.48 2 (not shown) usually ships 12-20 days
N/S 245-0150 Concrete wet bag $53.24 1 (not shown) usually ships 12-20 days
N/S 245-0098 Bag ring $19.36 1 (not shown) usually ships 12-20 days
