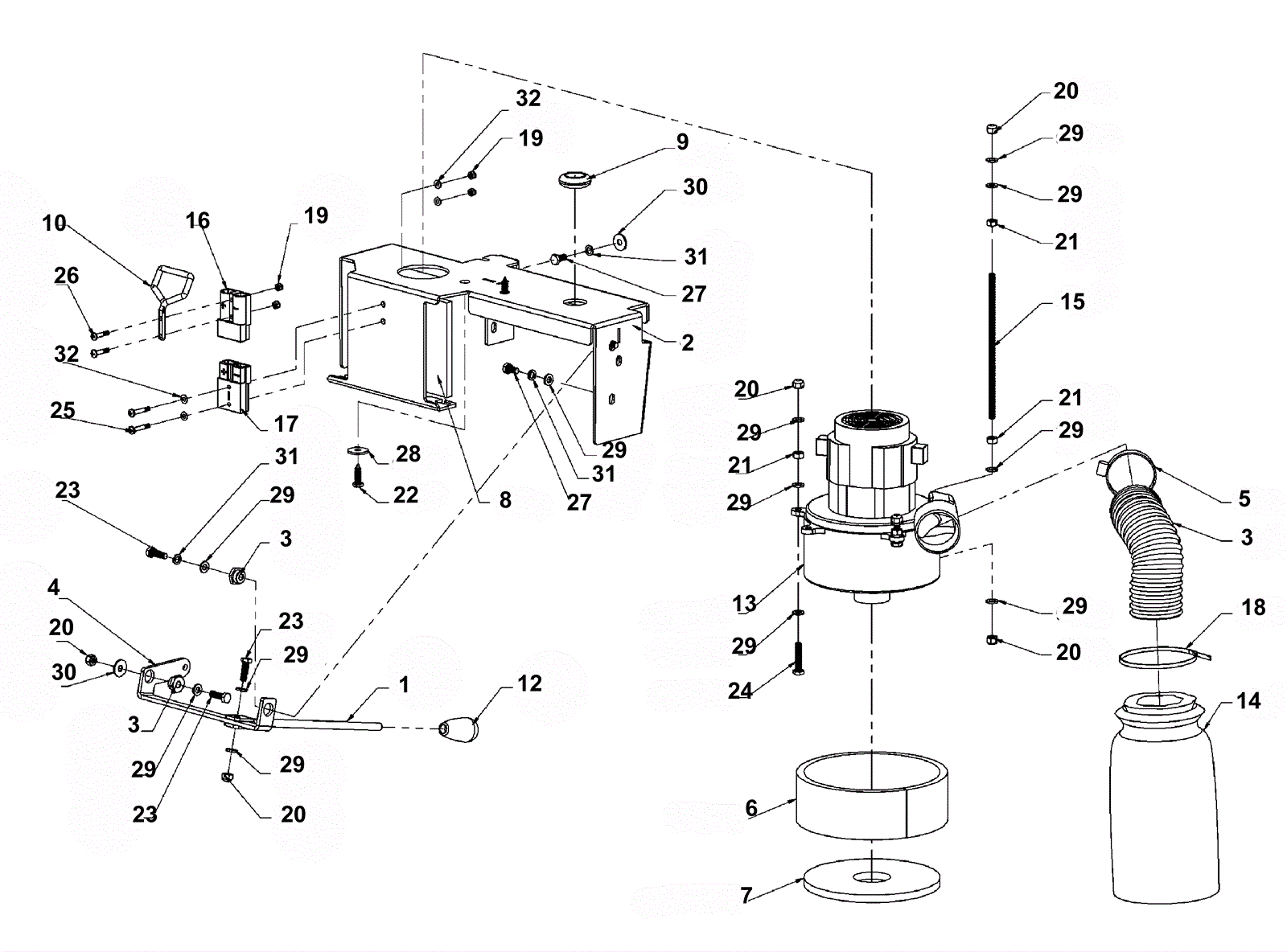

ACE 20BA Vacuum Assembly

#PartDescriptionPriceReqNotesAvailability
1 242-0169 Lever arm weldment (OBSOLETE) $36.95 1 usually ships 5-15 days
2 242-0170 Bracket $122.02 1 usually ships 5-15 days
3 242-0171 Bushing (OBSOLETE) $15.51 2 usually ships 5-15 days
4 242-0156 Squeegee lift bracket (OBSOLETE) $63.68 1 usually ships 5-15 days
5 206-5431 Clamp $6.63 1 usually ships 1-5 days
6 242-0009 Sound density foam $3.67 1 usually ships 5-15 days
7 242-0010 Sound density foam (OBSOLETE) $1.92 1 usually ships 5-15 days
8 242-0172 Sound deadner (OBSOLETE) $2.46 1 usually ships 5-15 days
9 242-0089 Grommet (OBSOLETE) $1.02 1 usually ships 5-15 days
10 242-0186 Handle connector (OBSOLETE) Call for price 1 usually ships 5-15 days
11 242-0173 Vacuum hose $12.69 1 usually ships 5-15 days
12 242-0174 Knob (OBSOLETE) $10.57 1 usually ships 5-15 days
13 206-5315 Vacuum motor $357.68 1 usually ships 1-5 days
14 242-0175 Muffler (OBSOLETE) $19.18 1 usually ships 5-15 days
15 242-0176 Rod $37.04 1 usually ships 5-15 days
16 242-0187 Charge plug (red) $49.10 1 usually ships 5-15 days
17 242-0187 Charge plug (red) $49.10 1 usually ships 5-15 days
18 206-1007 Clamp $2.57 1 usually ships 1-5 days
19 206-0995 Lock nut (OBSOLETE) Call for price 4 usually ships 1-5 days
20 242-0045 Nut M6 hex nylon lock zinc (OBSOLETE) $1.88 6 usually ships 5-15 days
21 999-1308 Nut M6-1 hex stainless steel $0.99 4 ships same day
22 242-0179 Screw M6 x 22mm pan head zinc (OBSOLETE) $1.46 2 usually ships 5-15 days
24 242-0180 Bolt M6 x 30mm hex head zinc (OBSOLETE) $2.03 2 usually ships 5-15 days
25 242-0177 Screw M4 x 25mm pan head zinc (OBSOLETE) $1.56 2 usually ships 5-15 days
26 242-0178 Screw M4 x 20mm pan head zinc (OBSOLETE) $1.78 2 usually ships 5-15 days
27 242-0049 Bolt M6 x 12mm hex zinc (OBSOLETE) $1.78 5 usually ships 5-15 days
28 999-0160 Washer 1/4 x 1 1/4 fender zinc plated $0.99 2 ships same day
29 206-3807 Washer M6 flat zinc $2.03 18 usually ships 5-15 days
30 242-0105 Washer M6 flat head zinc $2.03 2 usually ships 5-15 days
31 242-0050 Washer M6 lock zinc $2.71 6 usually ships 5-15 days
32 206-5395 Washer $1.91 4 usually ships 1-5 days
