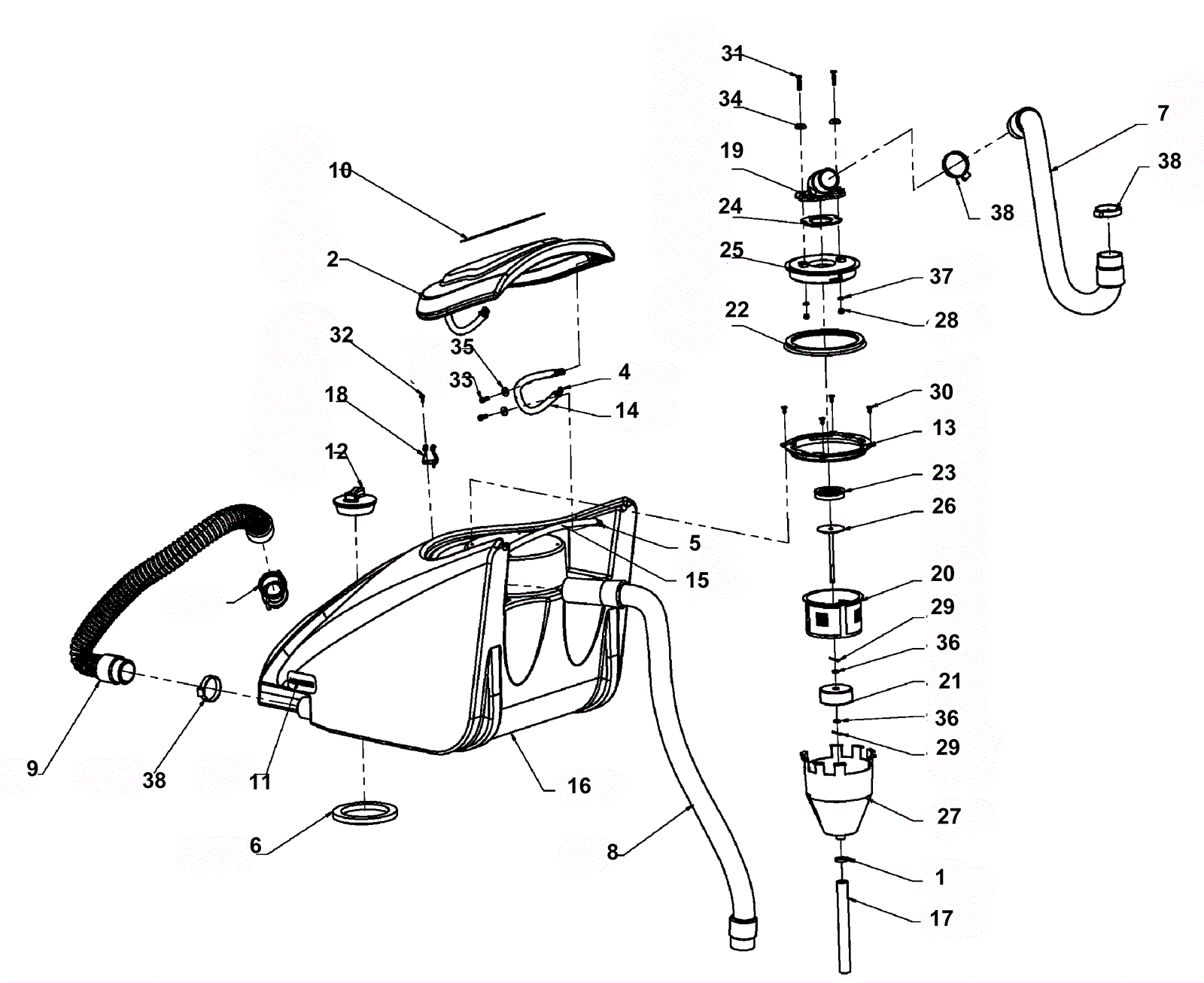

ACE 20BA Recovery Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 242-0156 Squeegee lift bracket (OBSOLETE) $63.68 1 usually ships 5-15 days
2 242-0020 Recovery tank cover (OBSOLETE) $14.84 1 usually ships 5-15 days
3 242-0157 Solution tank cover (OBSOLETE) Call for price 1 usually ships 5-15 days
4 242-0013 Chain (OBSOLETE) $4.72 2 usually ships 5-15 days
5 242-0158 Lift chain (OBSOLETE) Call for price 1 usually ships 5-15 days
6 242-0159 Tank gasket (OBSOLETE) $9.07 1 usually ships 5-15 days
7 242-0029 Recovery tank vacuum hose (OBSOLETE) $50.61 1 usually ships 5-15 days
8 206-3757 Squeegee vacuum hose (OBSOLETE) $31.28 1 usually ships 5-15 days
9 242-0019 Drain hose (OBSOLETE) $44.93 1 usually ships 5-15 days
10 242-0160 Recovery tank cover decal (OBSOLETE) $14.77 1 usually ships 5-15 days
11 242-0161 Lifting decal (OBSOLETE) $3.75 1 usually ships 5-15 days
12 206-0629 Drain hose plug (OBSOLETE) $22.64 1 usually ships 5-15 days
13 242-0162 Filter holder ring (OBSOLETE) $3.03 1 usually ships 5-15 days
14 242-0163 Sleeve (OBSOLETE) $1.58 2 usually ships 5-15 days
15 242-0164 Lift sleeve $2.52 1 usually ships 5-15 days
16 242-0165 Recovery tank $221.74 1 usually ships 5-15 days
17 242-0166 Tubing (OBSOLETE) $5.11 1 usually ships 5-15 days
18 206-0571 Hook (OBSOLETE) $36.77 1 usually ships 1-5 days
19 206-0587 Opening (OBSOLETE) $40.32 1 usually ships 5-15 days
20 242-0016 Filter (OBSOLETE) $37.86 1 usually ships 5-15 days
21 242-0015 Float $48.14 1 usually ships 5-15 days
22 206-0590 Gasket (OBSOLETE) $21.20 1 usually ships 5-15 days
23 206-0592 Gasket (OBSOLETE) $13.01 1 usually ships 1-5 days
24 189-9149 Gasket $5.50 1 usually ships 11-24 days
25 206-0589 Cover $22.94 1 usually ships 5-15 days
26 206-0593 Rod (OBSOLETE) $48.17 1 usually ships 1-5 days
27 206-0597 Protection (OBSOLETE) $26.67 1 usually ships 5-15 days
28 206-5319 Nut (OBSOLETE) $2.16 2 usually ships 1-5 days
29 206-0594 Split pin (OBSOLETE) $1.85 2 usually ships 1-5 days
30 206-0581 Screw (OBSOLETE) $1.67 4 usually ships 1-5 days
31 206-0604 Screw $1.91 2 usually ships 5-15 days
32 242-0154 Screw M8 x 15mm x 1/2 phillips pan head stainless steel (OBS $1.74 2 usually ships 5-15 days
33 242-0167 Screw M5 x 16mm pan head zinc $2.41 4 usually ships 5-15 days
34 206-0535 Washer $1.91 2 usually ships 5-15 days
35 242-0168 Washer M5 x 5mm flat zinc (OBSOLETE) $1.67 4 usually ships 5-15 days
36 999-1261 Washer M6 flat stainless steel $0.99 2 ships same day
37 999-9100 Washer M5 flat stainless steel $5.83 2 ships same day
38 206-0071 Clamp $7.23 3 usually ships 5-15 days
