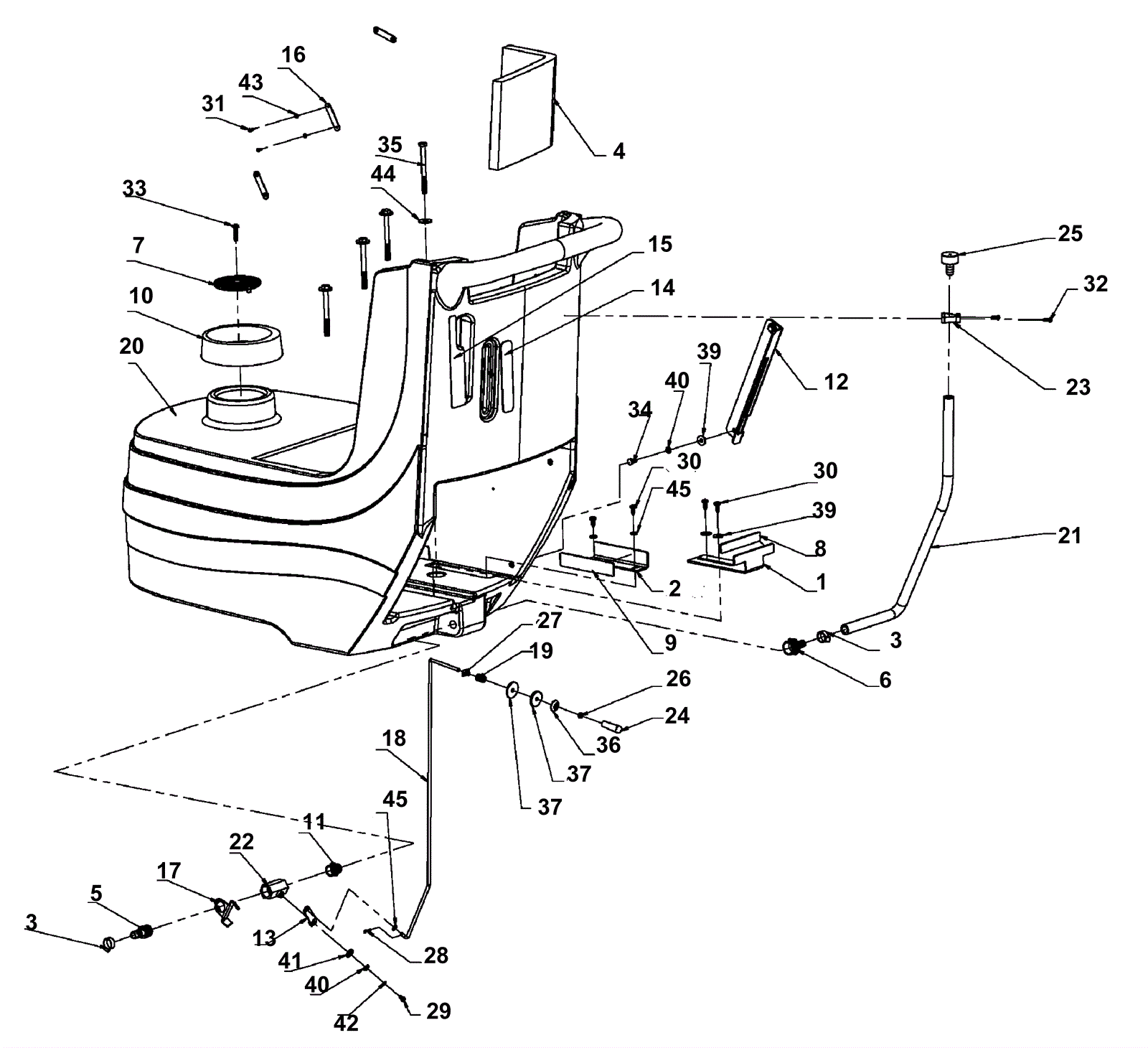

ACE 20BA Solution Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 242-0133 Rear battery bracket (OBSOLETE) $55.37 1 usually ships 5-15 days
2 242-0134 Side battery bracket (OBSOLETE) $9.99 1 usually ships 5-15 days
3 206-0080 Hose clamp $5.66 2 usually ships 1-5 days
4 242-0135 Sound deadner (OBSOLETE) $2.46 1 usually ships 5-15 days
5 242-0136 Barbed fitting (OBSOLETE) $6.35 1 usually ships 5-15 days
6 242-0137 Barbed fitting (OBSOLETE) $8.37 1 usually ships 5-15 days
7 242-0145 Filter basket (OBSOLETE) Call for price 1 usually ships 5-15 days
8 242-0138 Battery gasket $7.72 1 usually ships 5-15 days
9 242-0139 Side battery gasket $3.66 1 usually ships 5-15 days
10 242-0140 Tank gasket (OBSOLETE) $35.00 1 usually ships 5-15 days
11 242-0117 Front squeegee adjuster (OBSOLETE) $17.80 1 usually ships 5-15 days
12 242-0141 Brush deck lift latch (OBSOLETE) $24.60 1 usually ships 5-15 days
13 206-1281 Valve (OBSOLETE) $19.02 1 usually ships 1-5 days
14 242-0142 Water control decal (OBSOLETE) $11.29 1 usually ships 5-15 days
15 242-0146 Squeegee lift decal (OBSOLETE) Call for price 1 usually ships 5-15 days
16 242-0143 Wire retaining plate (OBSOLETE) $14.33 3 usually ships 5-15 days
17 206-1282 Valve lever limit plate (OBSOLETE) Call for price 1 usually ships 1-5 days
18 242-0144 Rod (OBSOLETE) $48.28 1 usually ships 5-15 days
19 242-0093 Spring (OBSOLETE) $1.76 1 usually ships 5-15 days
20 242-0147 Solution tank (OBSOLETE) Call for price 1 usually ships 5-15 days
21 242-0148 Drain tube $4.64 1 usually ships 5-15 days
22 206-1281 Valve (OBSOLETE) $19.02 1 usually ships 1-5 days
23 206-0571 Hook (OBSOLETE) $36.77 1 usually ships 1-5 days
24 206-0627 Knob (OBSOLETE) $11.93 1 usually ships 5-15 days
25 206-0965 Cap (OBSOLETE) $26.55 1 usually ships 1-5 days
26 242-0121 Nut M5 hex head zinc (OBSOLETE) $1.85 1 usually ships 5-15 days
27 242-0149 Nut M5 (OBSOLETE) $1.67 1 usually ships 5-15 days
28 206-3620 Cotter pin $0.81 1 usually ships 5-15 days
29 206-5471 Screw $2.72 1 usually ships 5-15 days
30 999-0572 Screw 10-24 x 1/2 pan head self-tapping zinc $0.99 4 ships same day
31 242-0155 Screw M3 x 9.5 pan head plastite (OBSOLETE) $1.67 6 usually ships 5-15 days
32 242-0154 Screw M8 x 15mm x 1/2 phillips pan head stainless steel (OBS $1.74 2 usually ships 5-15 days
33 242-0150 Bolt M6 x 25mm hex head full thread stainless steel (OBSOLET $1.85 1 usually ships 5-15 days
34 242-0049 Bolt M6 x 12mm hex zinc (OBSOLETE) $1.78 2 usually ships 5-15 days
35 242-0151 Bolt M8 x 90mm hex head zinc (OBSOLETE) $1.74 4 usually ships 5-15 days
36 206-0535 Washer $1.91 1 usually ships 5-15 days
37 242-0152 Washer M6 x 30mm flat (OBSOLETE) $2.44 2 usually ships 5-15 days
38 206-3807 Washer M6 flat zinc $2.03 2 usually ships 5-15 days
39 242-0105 Washer M6 flat head zinc $2.03 4 usually ships 5-15 days
40 242-0050 Washer M6 lock zinc $2.71 2 usually ships 5-15 days
41 242-0051 Washer M8 flat zinc $2.03 1 usually ships 5-15 days
42 242-0153 Washer M4 lock zinc plated (OBSOLETE) $1.92 1 usually ships 5-15 days
43 999-1521 Washer M3 flat stainless steel $0.99 6 ships same day
44 242-0052 Washer M8 flat zinc (OBSOLETE) $1.80 4 usually ships 5-15 days
45 242-0053 WASHER-M5 FLAT ZINC (OBSOLETE) $2.03 1 usually ships 5-15 days
46 999-1115 Washer M4 flat zinc plated $0.99 1 ships same day
