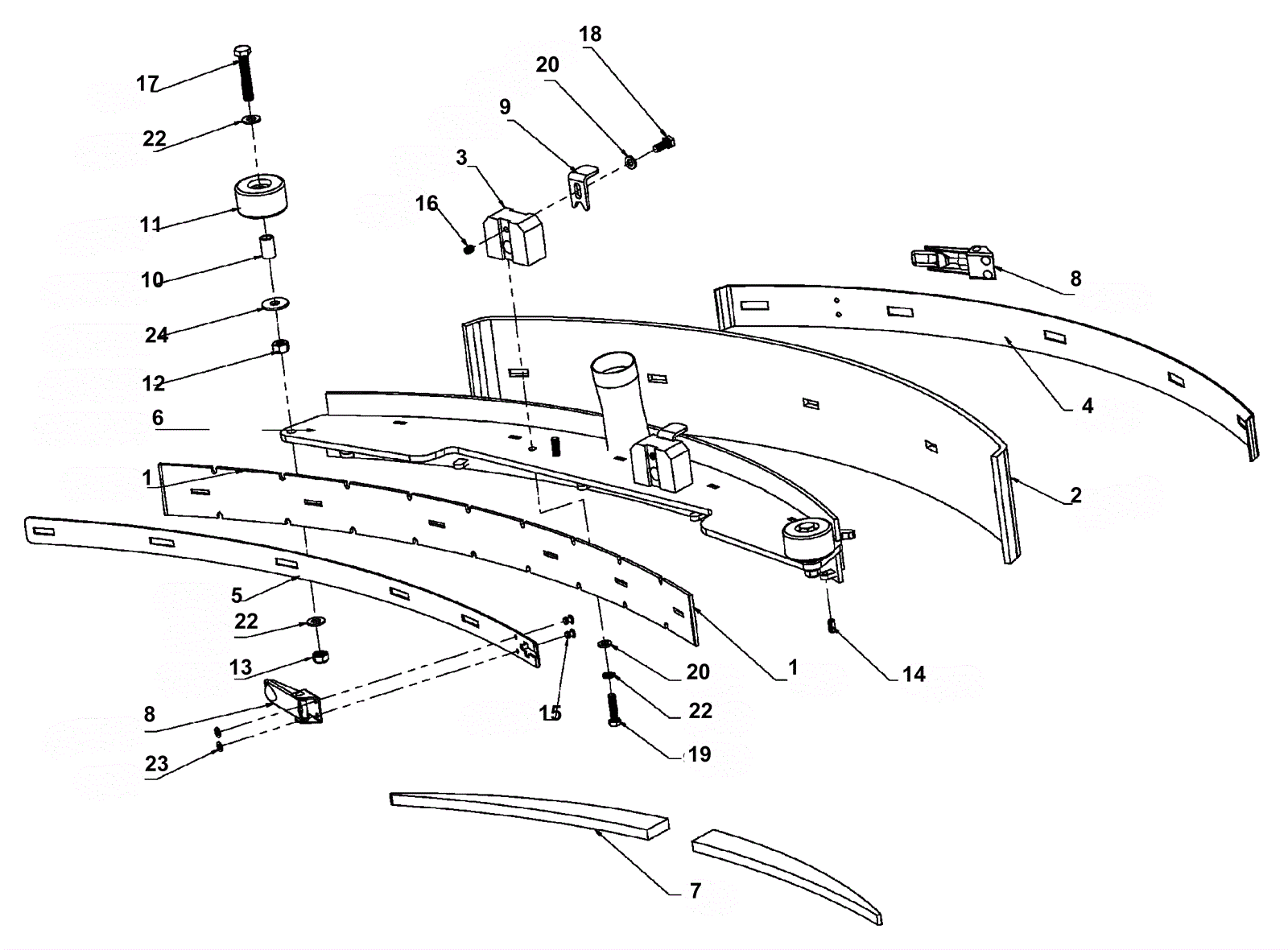

ACE 20BA Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
1 206-3033 Squeegee blade front (OBSOLETE) $24.59 1 usually ships 5-15 days
2 206-3034 Squeegee blade rear (OBSOLETE) $29.76 1 usually ships 5-15 days
3 242-0124 Squeegee attactment block (OBSOLETE) $76.40 2 usually ships 5-15 days
4 242-0125 Rear band clamp (OBSOLETE) $35.04 1 usually ships 5-15 days
5 206-3799 Front band clamp (OBSOLETE) $23.10 1 usually ships 5-15 days
6 242-0126 Squeegee Frame (OBSOLETE) $130.99 1 usually ships 5-15 days
7 242-0127 Filler (OBSOLETE) $32.25 2 usually ships 5-15 days
8 206-5393 Latch (OBSOLETE) $36.59 2 usually ships 5-15 days
9 242-0128 Squeegee attachment latch (OBSOLETE) $6.51 2 usually ships 5-15 days
10 206-0649 Bushing (OBSOLETE) $14.00 2 usually ships 1-5 days
11 206-0648 Wheel (OBSOLETE) $16.33 2 usually ships 5-15 days
12 242-0097 Nut M8 hex head zinc (OBSOLETE) $1.88 2 usually ships 5-15 days
13 242-0098 Nut M8 hex head nylon lock zinc (OBSOLETE) $1.88 2 usually ships 5-15 days
14 242-0129 Pin (OBSOLETE) $1.67 1 usually ships 5-15 days
15 206-5394 Rivet $2.03 4 usually ships 1-5 days
16 242-0130 Screw M6x 8mm hex head set $1.91 2 usually ships 5-15 days
17 242-0131 Bolt M8 x 45mm hex head zinc (OBSOLETE) $1.92 2 usually ships 5-15 days
18 206-3046 Bolt M6 x 16 hex head $1.91 2 usually ships 1-5 days
19 242-0132 Bolt M6 x 25mm hex head zinc (OBSOLETE) $1.67 4 usually ships 5-15 days
20 206-3807 Washer M6 flat zinc $2.03 6 usually ships 5-15 days
21 242-0050 Washer M6 lock zinc $2.71 4 usually ships 5-15 days
22 242-0051 Washer M8 flat zinc $2.03 4 usually ships 5-15 days
23 206-5395 Washer $1.91 4 usually ships 1-5 days
24 242-0052 Washer M8 flat zinc (OBSOLETE) $1.80 2 usually ships 5-15 days
