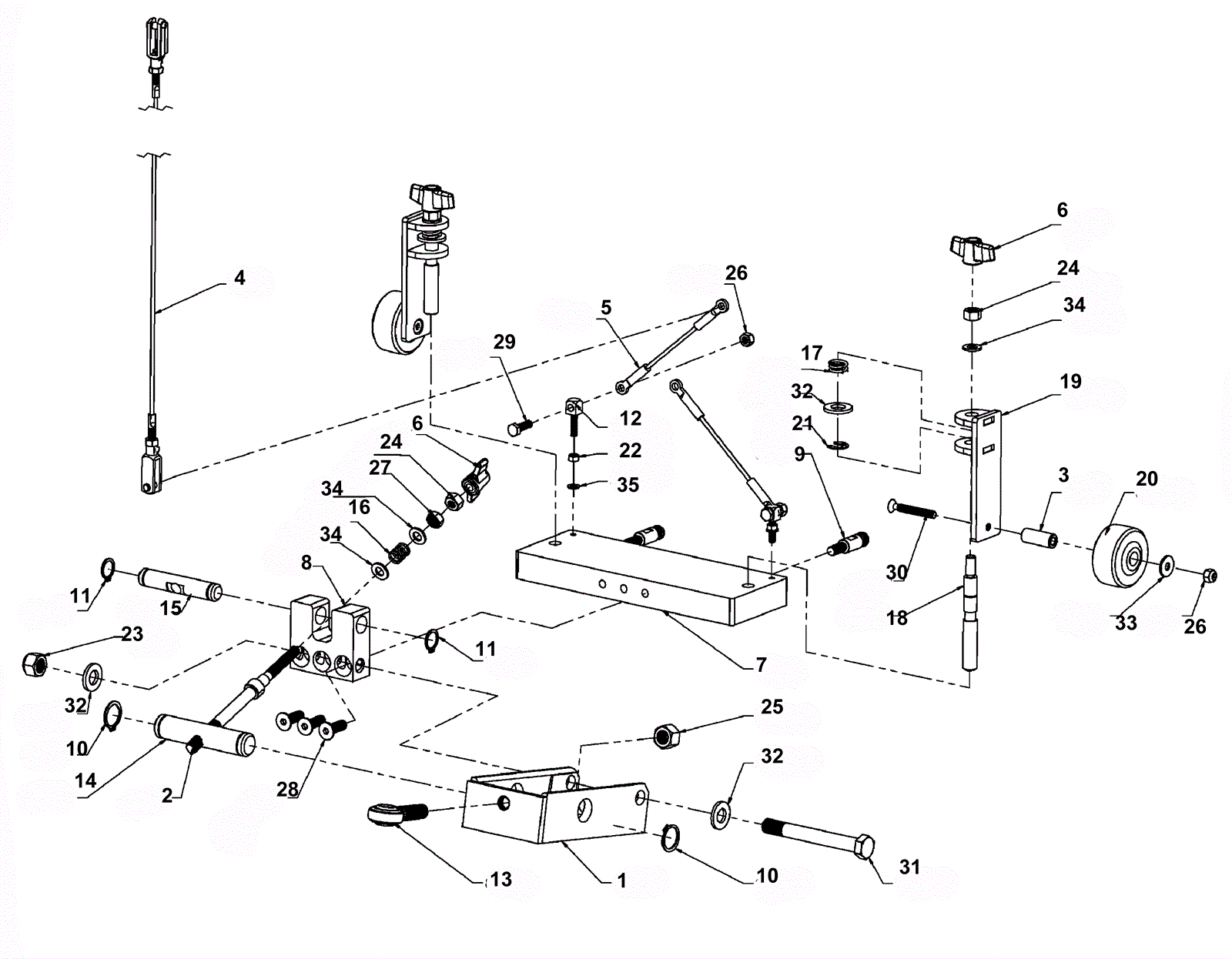

ACE 20BA Squeegee Arm Assembly

#PartDescriptionPriceReqNotesAvailability
1 242-0107 Squeegee link arm (OBSOLETE) $42.84 1 usually ships 5-15 days
2 242-0108 Squeegee adjuster bolt (OBSOLETE) $44.43 1 usually ships 5-15 days
3 242-0109 Wheel bushing (OBSOLETE) $8.03 2 usually ships 5-15 days
4 242-0110 Squeegee lift cable (OBSOLETE) $51.61 1 usually ships 5-15 days
5 206-1076 Squeegee lift cable (OBSOLETE) $12.23 2 usually ships 5-15 days
6 242-0111 Knob (OBSOLETE) $5.54 3 usually ships 5-15 days
7 206-5470 Squeegee base mount (OBSOLETE) $80.26 1 usually ships 5-15 days
8 242-0112 Squeegee mount pivot base (OBSOLETE) $107.42 1 usually ships 5-15 days
9 206-5469 Pin $29.11 2 usually ships 5-15 days
10 242-0113 20mm retaining ring (OBSOLETE) $1.32 2 usually ships 5-15 days
11 242-0114 15mm retaining ring (OBSOLETE) $2.64 2 usually ships 5-15 days
12 242-0115 Squeegee lift ring (OBSOLETE) $6.81 2 usually ships 5-15 days
13 242-0116 Male rod end (OBSOLETE) $18.67 1 usually ships 5-15 days
14 242-0117 Front squeegee adjuster (OBSOLETE) $17.80 1 usually ships 5-15 days
15 242-0118 Rear squeegee adjuster (OBSOLETE) $13.39 1 usually ships 5-15 days
16 242-0093 Spring (OBSOLETE) $1.76 1 usually ships 5-15 days
17 242-0119 Spring (OBSOLETE) $1.58 2 usually ships 5-15 days
18 206-1083 Adjusting stud (OBSOLETE) Call for price 2 usually ships 1-5 days
19 242-0120 Wheel strut (OBSOLETE) $25.50 2 usually ships 5-15 days
20 206-1082 Wheel (OBSOLETE) $12.27 2 usually ships 5-15 days
21 206-0067 Vac window gasket (OBSOLETE) Call for price 2 usually ships 1-5 days
22 242-0121 Nut M5 hex head zinc (OBSOLETE) $1.85 2 usually ships 5-15 days
23 242-0096 Nut M12 hex head nylon lock zinc $2.57 1 usually ships 5-15 days
24 242-0097 Nut M8 hex head zinc (OBSOLETE) $1.88 3 usually ships 5-15 days
25 242-0096 Nut M12 hex head nylon lock zinc $2.57 1 usually ships 5-15 days
26 242-0045 Nut M6 hex nylon lock zinc (OBSOLETE) $1.88 4 usually ships 5-15 days
27 242-0098 Nut M8 hex head nylon lock zinc (OBSOLETE) $1.88 1 usually ships 5-15 days
28 999-6699 Screw M8-1.25 x 25mm flat socket head stainless steel $1.47 3 usually ships 11-24 days
29 206-0497 Screw $2.15 2 usually ships 1-5 days
30 206-6007 Screw M6 x 45mm flat head $2.03 2 usually ships 1-5 days
31 242-0123 Bolt M12 x 100mm hex head zinc (OBSOLETE) $4.91 1 usually ships 5-15 days
32 206-0698 Washer $2.03 4 usually ships 1-5 days
33 242-0105 Washer M6 flat head zinc $2.03 2 usually ships 5-15 days
34 242-0051 Washer M8 flat zinc $2.03 4 usually ships 5-15 days
35 242-0053 WASHER-M5 FLAT ZINC (OBSOLETE) $2.03 2 usually ships 5-15 days
