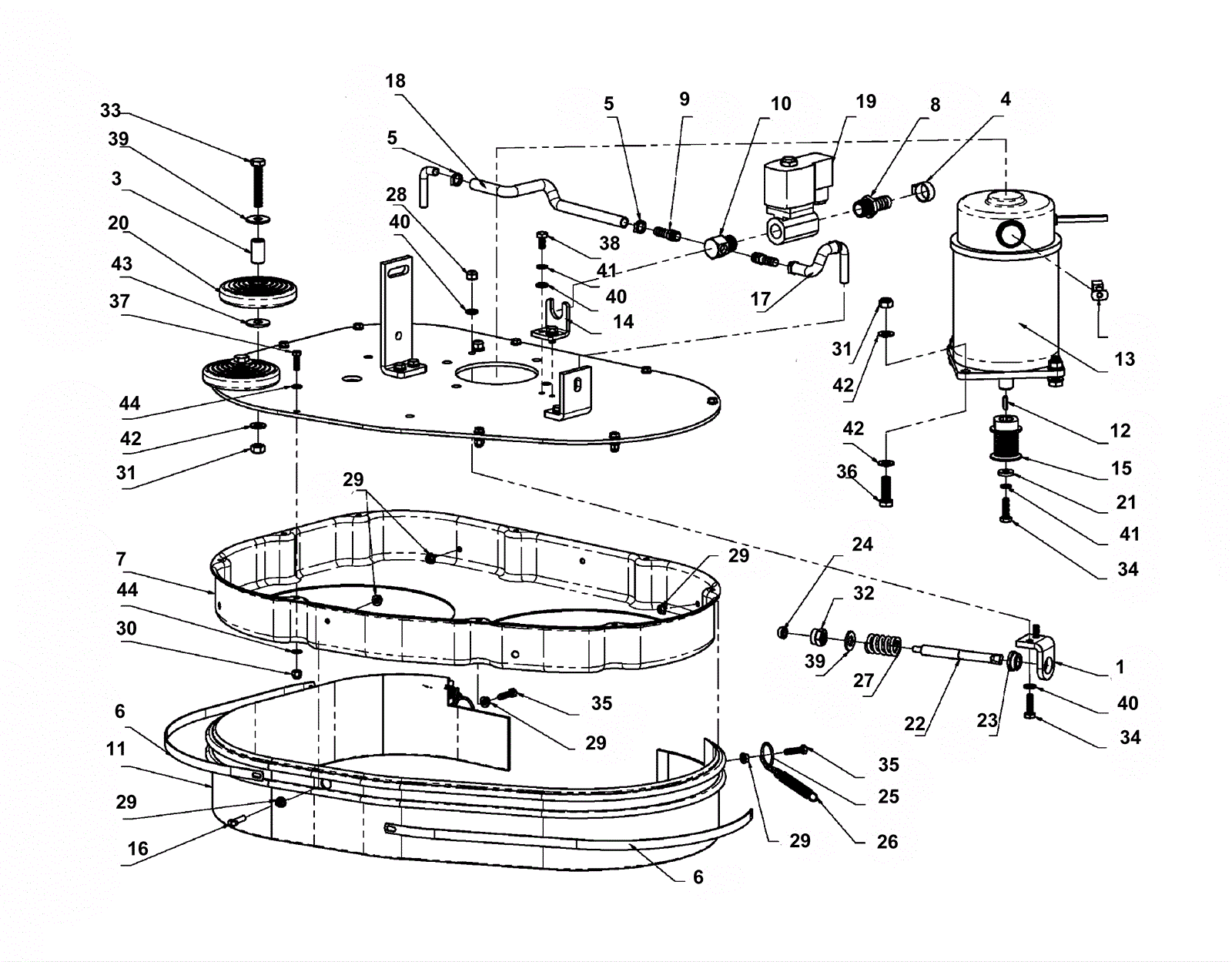

ACE 20BA Brush Deck Assembly

#PartDescriptionPriceReqNotesAvailability
1 242-0030 Brush base (OBSOLETE) Call for price 1 usually ships 5-15 days
2 242-0022 Carbon brush (OBSOLETE) $32.77 2 usually ships 5-15 days
3 242-0031 Wheel bushing (OBSOLETE) $14.69 2 usually ships 5-15 days
4 206-0080 Hose clamp $5.66 1 usually ships 1-5 days
5 206-0080 Hose clamp $5.66 4 usually ships 1-5 days
6 206-5425 Band clamp (OBSOLETE) $13.07 2 usually ships 11-24 days
7 242-0032 Base cover (OBSOLETE) $117.62 1 usually ships 5-15 days
8 206-1283 Fitting (OBSOLETE) $17.70 1 usually ships 1-5 days
9 206-5392 Barb fitting (OBSOLETE) $12.70 2 usually ships 5-15 days
10 206-3756 Fitting (OBSOLETE) $8.12 1 usually ships 5-15 days
11 242-0033 Splash guard (OBSOLETE) Call for price 1 usually ships 5-15 days
12 242-0034 Motor shaft (OBSOLETE) $1.32 1 usually ships 5-15 days
13 242-0035 Brush Motor (OBSOLETE) $208.25 1 usually ships 5-15 days
14 242-0036 Solenoid valve mount (OBSOLETE) $8.11 1 usually ships 5-15 days
15 242-0037 Pulley (OBSOLETE) Call for price 1 usually ships 5-15 days
16 189-9031 Screw M5 x 20mm stainless steel $12.84 1 usually ships 11-24 days
17 242-0039 5/16 inch tubing(sold by the foot) (OBSOLETE) Call for price 1 usually ships 5-15 days
18 242-0039 5/16 inch tubing(sold by the foot) (OBSOLETE) Call for price 1 usually ships 5-15 days
19 206-1280 Solenoid valve (OBSOLETE) Call for price 1 usually ships 1-5 days
20 242-0040 Wheel (OBSOLETE) $11.07 2 usually ships 5-15 days
21 242-0041 Washer (OBSOLETE) $1.36 1 usually ships 5-15 days
22 242-0042 Adjuster bolt (OBSOLETE) $13.37 1 usually ships 5-15 days
23 242-0043 Bushing (OBSOLETE) $10.73 1 usually ships 5-15 days
24 242-0044 Bushing (OBSOLETE) $12.73 1 usually ships 5-15 days
25 206-0485 Ring (OBSOLETE) $3.82 2 usually ships 1-5 days
26 206-0486 Spring $17.25 1 usually ships 5-15 days
27 206-5123 Spring (OBSOLETE) $11.03 2 usually ships 1-5 days
28 242-0045 Nut M6 hex nylon lock zinc (OBSOLETE) $1.88 2 usually ships 5-15 days
29 242-0046 Nut M5 flange zinc $2.03 6 usually ships 5-15 days
30 206-0498 Lock nut (OBSOLETE) $1.88 9 usually ships 1-5 days
31 206-0494 Nut lock (OBSOLETE) $1.88 6 usually ships 1-5 days
32 206-0505 Nut lock $3.47 1 usually ships 5-15 days
33 999-0786 Screw M8-1.25 x 35mm hex head stainless steel $1.12 2 ships same day
34 206-0497 Screw $2.15 3 usually ships 1-5 days
35 999-0498 Bolt M5-.8 x 20mm hex head full thread zinc $0.99 2 ships same day
36 242-0047 Bolt M8 x 25mm hex zinc (OBSOLETE) $1.78 4 usually ships 5-15 days
37 242-0048 Bolt M5 x 16mm hex zinc (OBSOLETE) $1.56 9 usually ships 5-15 days
38 242-0049 Bolt M6 x 12mm hex zinc (OBSOLETE) $1.78 2 usually ships 5-15 days
39 206-0504 Washer (OBSOLETE) Call for price 1 usually ships 1-5 days
40 206-3807 Washer M6 flat zinc $2.03 6 usually ships 5-15 days
41 242-0050 Washer M6 lock zinc $2.71 3 usually ships 5-15 days
42 242-0051 Washer M8 flat zinc $2.03 10 usually ships 5-15 days
43 242-0052 Washer M8 flat zinc (OBSOLETE) $1.80 4 usually ships 5-15 days
44 242-0053 WASHER-M5 FLAT ZINC (OBSOLETE) $2.03 18 usually ships 5-15 days
