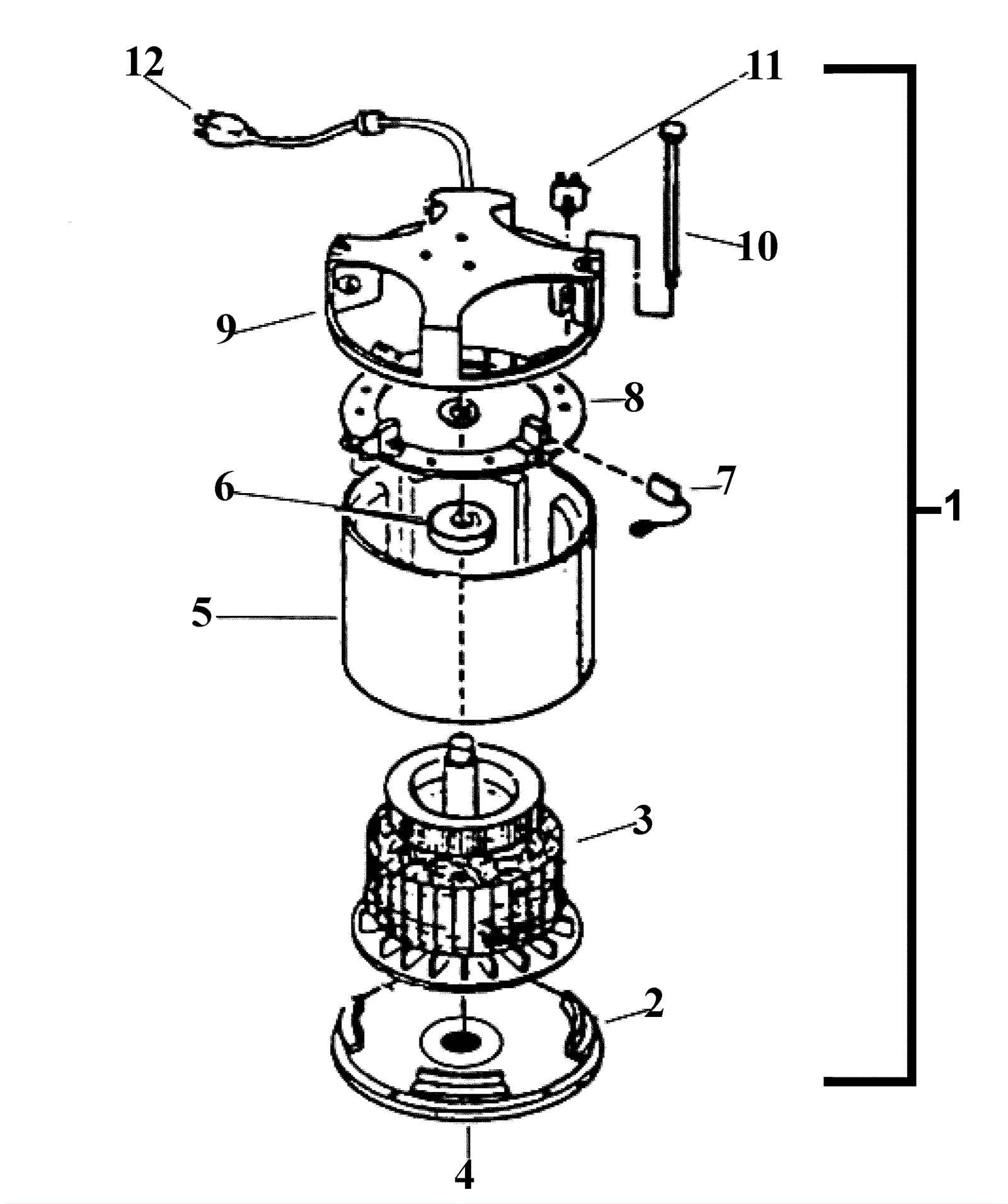

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
206-5008
|
DC motor 115v |
1 |
|
|
1b |
206-2000
|
220V 1.5HP motor |
1 |
|
|
2 |
206-0428
|
End bell motor lower |
1 |
|
|
3a |
206-0426
|
Armature 115v |
1 |
|
|
3b |
206-2001
|
220V armature with bearings |
1 |
|
|
4 |
206-0427
|
Lower motor bearing |
1 |
|
|
5 |
206-0240
|
Field and shell assembly (OBSOLETE) |
1 |
|
|
6 |
206-0462
|
Motor top bearing |
1 |
|
|
7a |
206-0242
|
Carbon brush (sold individually) (OBSOLETE) |
4 |
|
|
7b |
206-2002
|
220V carbon brush |
4 |
|
|
8a |
206-0425
|
Brush ring assembly complete |
1 |
|
|
8b |
206-2003
|
Brush ring assembly complete |
1 |
|
|
9 |
206-0422
|
End bell motor top (OBSOLETE) |
1 |
|
|
10 |
206-0248
|
Bolt motor thru |
4 |
|
|
11a |
206-0247
|
Rectifier 115v 50/60C |
1 |
|
|
11b |
206-2004
|
220V rectifier |
1 |
|
|
12 |
206-0244
|
Cord assembly motor |
1 |
|
|
