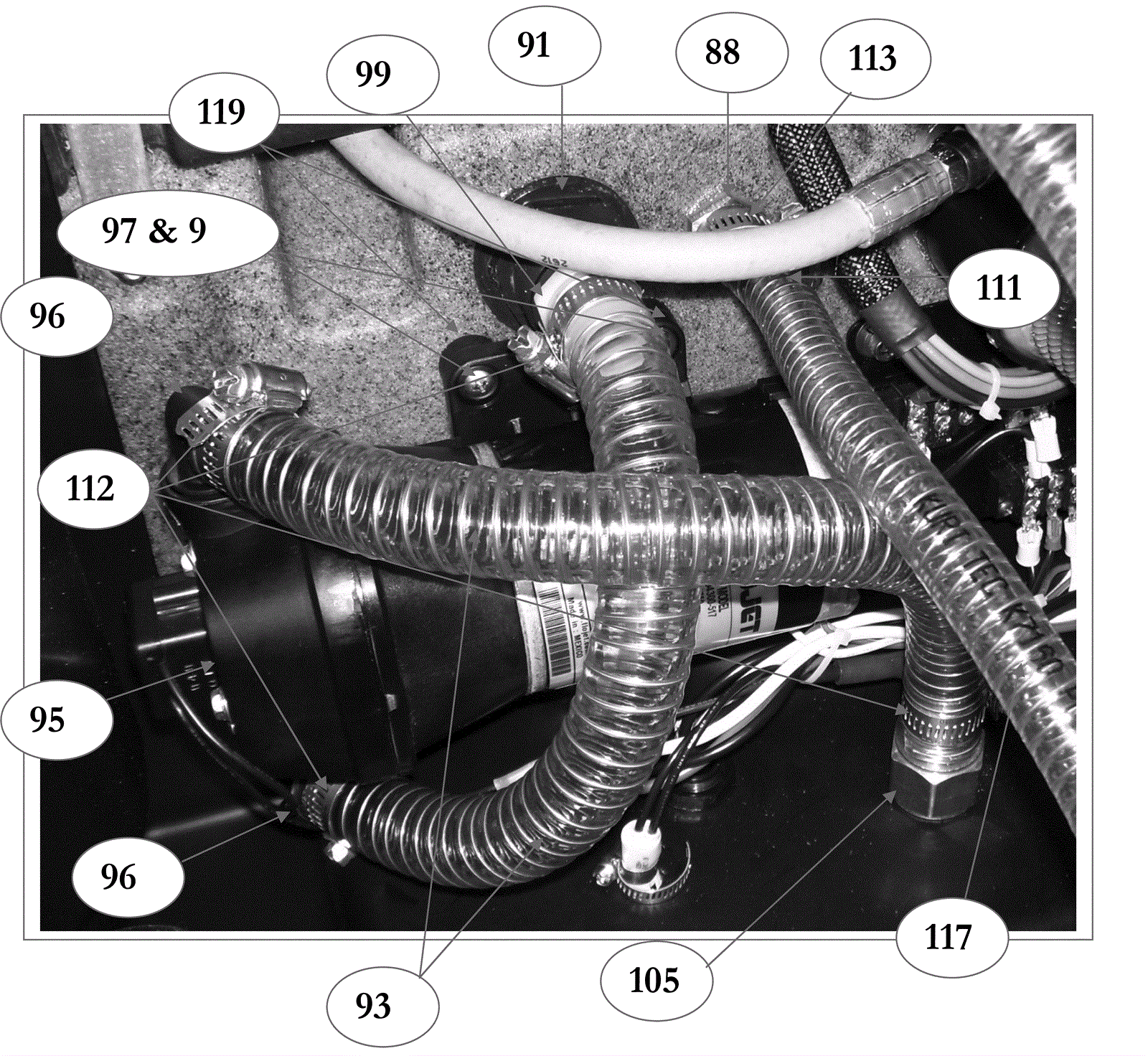

| # | Part | Description |
Req | Notes | Availability |
|---|
88 |
241-4088
|
Bulkhead fitting |
1 |
|
|
91 |
241-5208
|
Bulkhead fitting |
1 |
|
|
93 |
241-5213
|
Hose |
2 |
|
|
95 |
241-5214
|
Pump-out pump |
1 |
|
|
96 |
241-5215
|
90 degree elbow barb |
2 |
|
|
97 |
999-0570
|
Screw 10-24 x 1 1/4 pan head phillips stainless steel |
2 |
|
|
99 |
241-5216
|
Nylon barb |
1 |
|
|
105 |
241-5217
|
Barb |
1 |
|
|
111 |
241-4084
|
Barb |
1 |
|
|
112 |
241-4104
|
Clamp |
4 |
|
|
113 |
241-5218
|
Hose clamp |
1 |
|
|
117 |
241-5028
|
Clear coil hose (sold by the foot) |
1 |
|
|
118 |
241-5219
|
Hose clamp with thumb screw |
1 |
|
|
119 |
241-5204
|
Moisture barrier |
2 |
|
|
