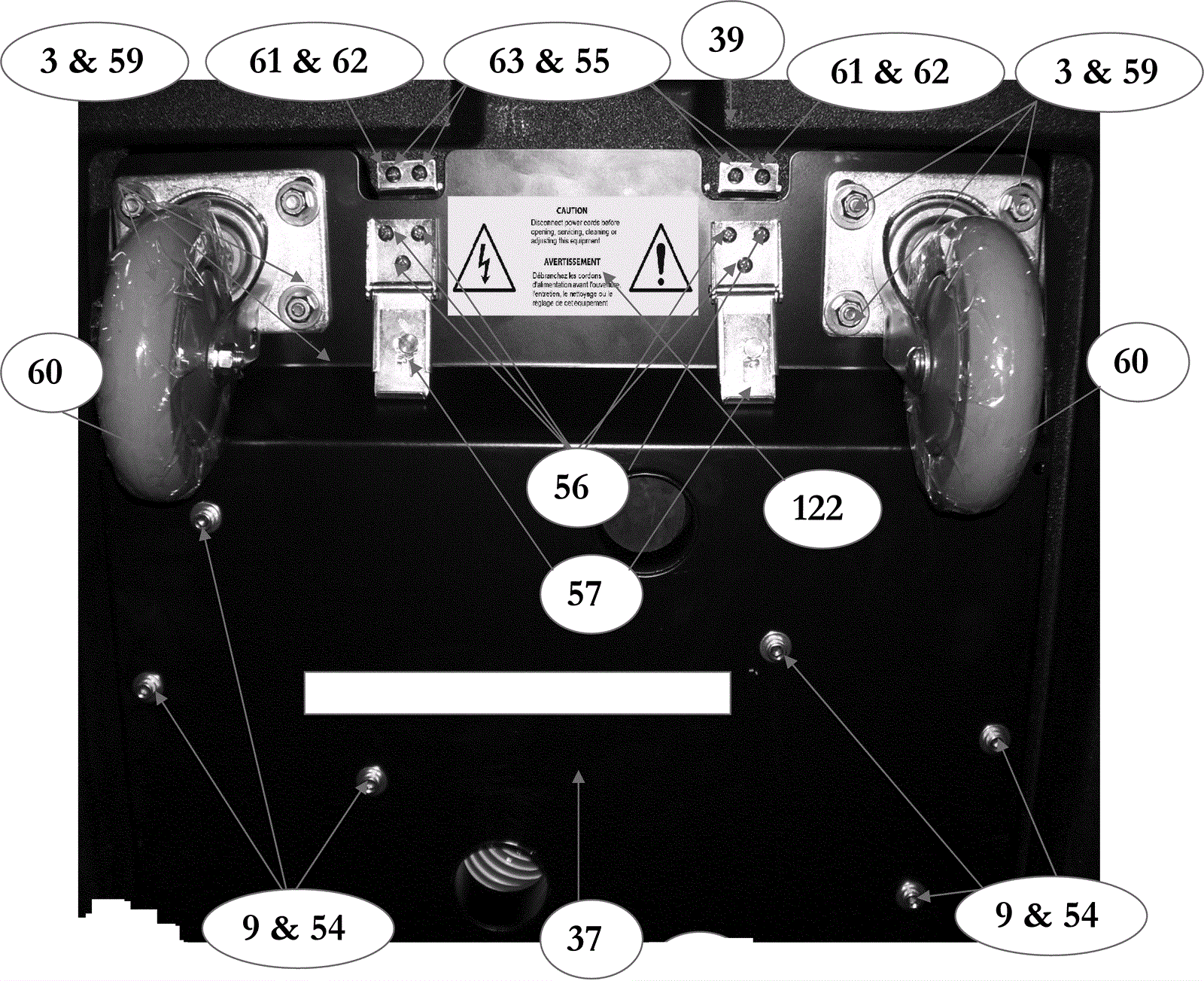

Nautilus MX3-1200 Base Bottom View Assembly

#PartDescriptionPriceReqNotesAvailability
3 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
9 999-6684 Washer 1/4 flat stainless steel $0.99 6 ships same day
37 241-5173 Base plate assembly Call for price 1 (comes with lift handle and hinges) usually ships 19-39 days
39 241-5166 Base skirt Call for price 1 usually ships 19-39 days
54 999-0641 Screw 5/16-18 x 3/4 socket head stainless steel $1.19 6 ships same day
55 999-0357 Nut 8-32 nylon insert lock stainless steel $0.99 6 ships same day
56 999-1206 Screw 8-32 x 1/2 socket head stainless steel $0.99 6 ships same day
57 241-5194 Slide latch Call for price 2 usually ships 19-39 days
59 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 2 ships same day
60 241-5192 5 inch caster Call for price 2 usually ships 19-39 days
61 241-5195 Latch hook keeper Call for price 1 usually ships 19-39 days
62 241-5196 Latch hook spacer Call for price 1 usually ships 19-39 days
63 999-0697 Screw 8-32 x 3/4 pan head phillips stainless steel $0.99 4 ships same day
122 241-5197 CSA warning decal Call for price 1 usually ships 19-39 days
