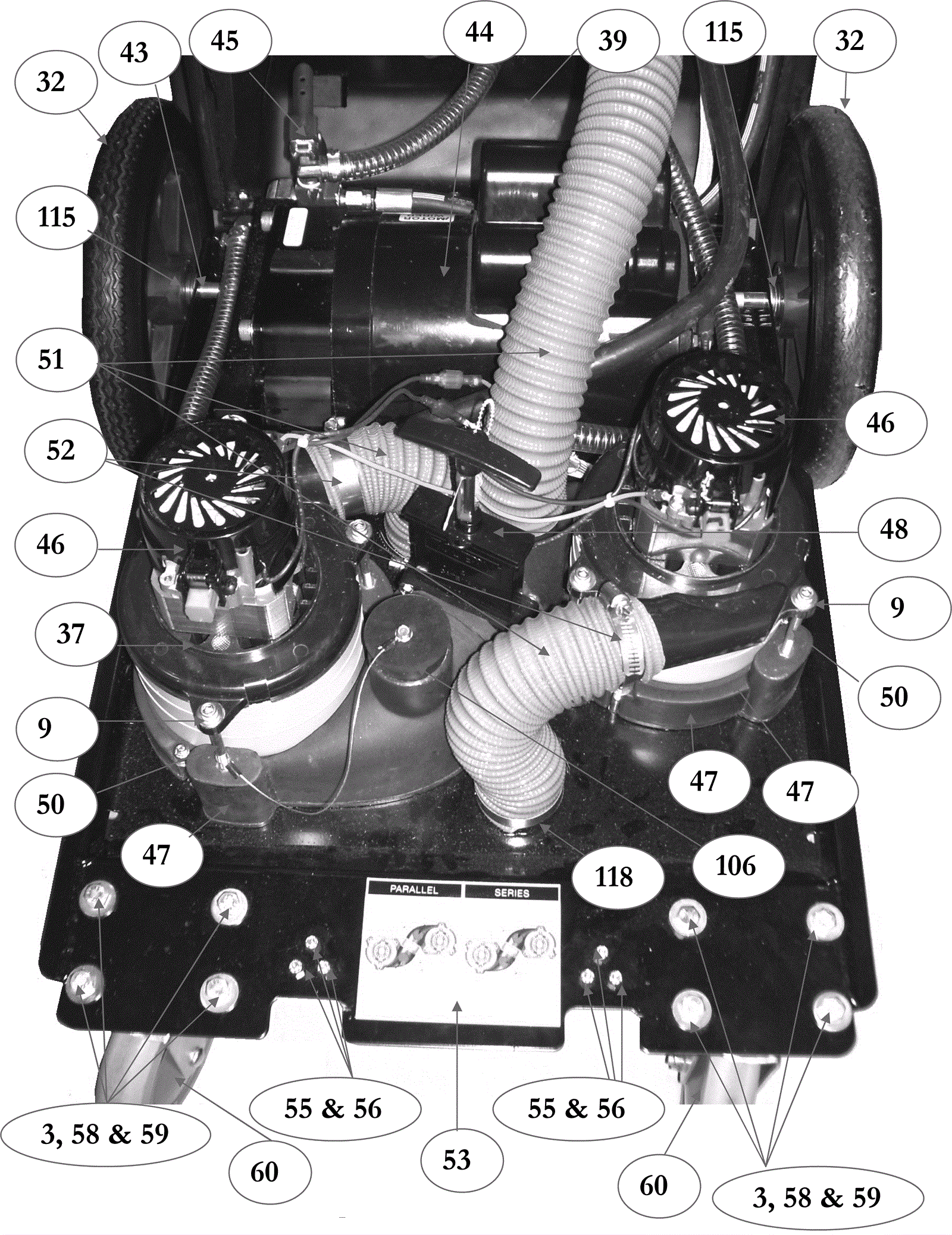

| # | Part | Description |
Req | Notes | Availability |
|---|
3 |
999-0024
|
Washer 5/16 flat stainless steel |
2 |
|
|
9 |
999-6684
|
Washer 1/4 flat stainless steel |
6 |
|
|
32 |
241-5012
|
12 inch wheel with hub |
2 |
|
|
37 |
241-5173
|
Base plate assembly |
1 |
|
|
39 |
241-5166
|
Base skirt |
1 |
(comes with lift handle and hinges) |
|
43 |
241-5185
|
Rear wheel axle (OBSOLETE) |
1 |
|
|
44 |
241-5017
|
1200PSI pump with motor |
1 |
|
|
45 |
241-4149
|
Pump priming valve (OBSOLETE) |
1 |
|
|
46 |
241-5018
|
Vacuum motor |
2 |
|
|
47a |
241-5186
|
Vacuum manifold (OBSOLETE) |
2 |
|
|
47b |
241-4118
|
Vacuum motor gasket |
2 |
|
|
48 |
241-5187
|
Gate valve with keeper |
2 |
|
|
50 |
241-5188
|
Screw 1/4-20 x 3 1/4 socket head stainless steel |
6 |
|
|
51 |
241-5189
|
2 inch vacuum hose |
3 |
|
|
52 |
241-5190
|
Hose clamp |
2 |
|
|
53 |
241-5191
|
Vac connection decal |
1 |
|
|
55 |
999-0357
|
Nut 8-32 nylon insert lock stainless steel |
6 |
|
|
56 |
999-1206
|
Screw 8-32 x 1/2 socket head stainless steel |
6 |
|
|
58 |
999-1232
|
Screw 5/16-18 x 3/4 hex head stainless steel |
2 |
|
|
59 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
2 |
|
|
60 |
241-5192
|
5 inch caster |
2 |
|
|
106 |
241-5180
|
Rubber vacuum plug |
1 |
|
|
115 |
999-0187
|
Washer 1/2 flat plain finish |
2 |
|
|
