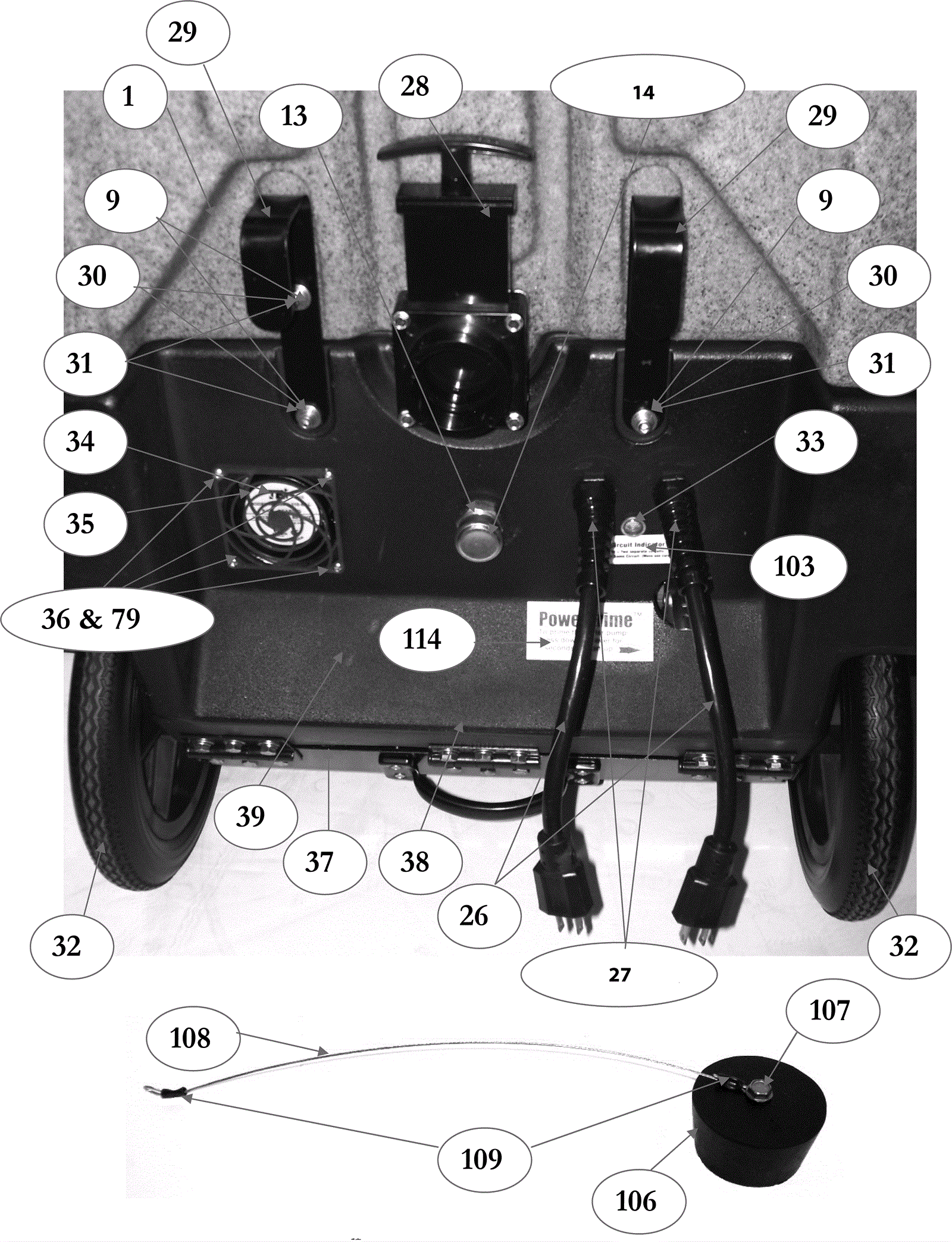

Nautilus MX3-1200 Base, Base Skirt and Recovery Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 241-5159 Recovery tank Call for price 1 usually ships 19-39 days
9 999-6684 Washer 1/4 flat stainless steel $0.99 6 ships same day
13 241-4094 Adapter Call for price 1 usually ships 19-39 days
14a 241-4096 Cap $3.74 1 usually ships 19-39 days
14b 241-4095 Gasket $0.99 1 usually ships 19-39 days
26 992-3018 26 inch power cord $28.51 2 usually ships 19-39 days
27a 992-3019 Strain relief $7.87 1 ships same day
27b 241-4123 Strain relief nut Call for price 1 usually ships 19-39 days
28 992-1137 1 1/2 inch valve $20.70 1 ships same day
29 241-5176 Cord wrap bracket Call for price 2 usually ships 19-39 days
30 241-4112 Lock washer Call for price 2 usually ships 19-39 days
31 999-6743 Screw 1/4-20 x 3/4 socket cap hex head stainless steel $0.99 2 usually ships 12-18 days
32 241-5012 12 inch wheel with hub $34.68 2 usually ships 19-39 days
33 241-5177 120V green neon light Call for price 1 usually ships 19-39 days
34 241-5178 Cooling fan Call for price 1 usually ships 19-39 days
35 241-5179 Plastic fan cover Call for price 1 usually ships 19-39 days
36 999-1109 Screw 6-32 x 3/4 pan head phillips stainless steel $0.99 4 ships same day
37 241-5173 Base plate assembly Call for price 1 usually ships 19-39 days
38 241-5174 Handle Call for price 1 usually ships 19-39 days
39 241-5166 Base skirt Call for price 1 usually ships 19-39 days
79 999-0337 Nut 6-32 nylon insert lock stainless steel $0.99 4 ships same day
103 241-5167 Dual circuit light decal Call for price 1 usually ships 19-39 days
106 241-5180 Rubber vacuum plug Call for price 1 usually ships 19-39 days
107 241-5181 Screw tek #10 x 5/8 stainless steel Call for price 1 usually ships 19-39 days
108 241-5182 Cable Call for price 1 usually ships 19-39 days
109 241-5183 Cable clamp sleeve Call for price 2 usually ships 19-39 days
110 N/A Not available Call for price 1 (tee) usually ships 3-26 days
114 241-5184 Power prime valve decal Call for price 1 usually ships 19-39 days
