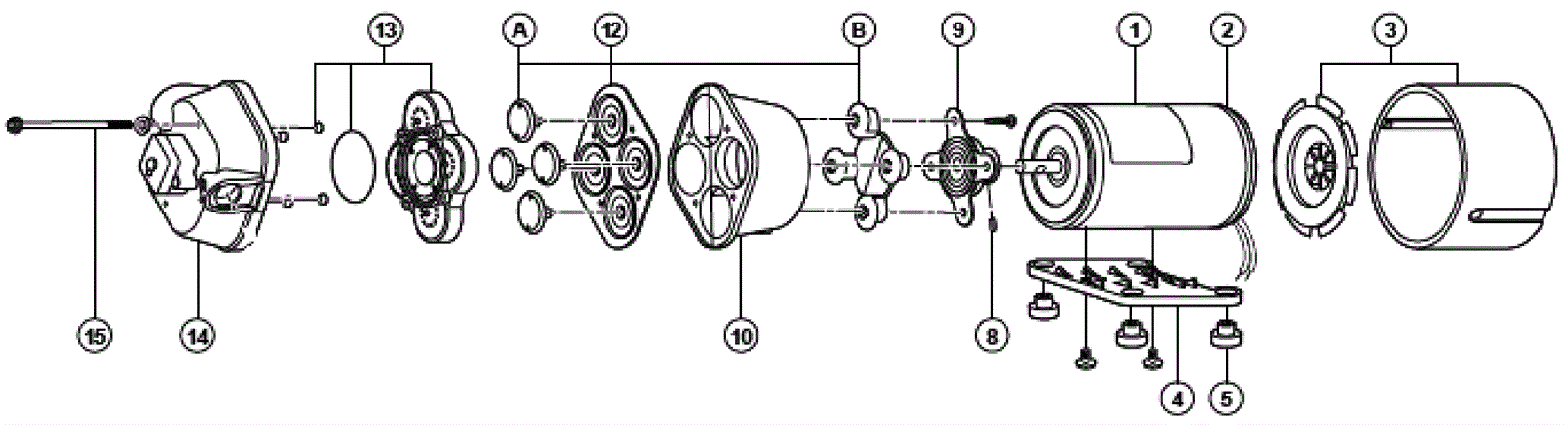

Nautilus MX3-1200 Pump-Out Pump Assembly

#PartDescriptionPriceReqNotesAvailability
1 241-5146 15V motor Call for price 1 usually ships 19-39 days
2 241-5147 Brush endbell assembly with bearing Call for price 1 usually ships 19-39 days
3 241-5148 Fan shroud kit Call for price 1 usually ships 19-39 days
4 241-5149 Plastic baseplate assembly Call for price 1 usually ships 19-39 days
5 241-5150 Grommet kit (set of 4) Call for price 1 (set of 4) usually ships 19-39 days
8 241-5151 Set screw Call for price 1 usually ships 19-39 days
9 241-5152 Cam bearing kit Call for price 1 usually ships 19-39 days
10 241-5153 Bearing cover Call for price 1 usually ships 19-39 days
12 241-5154 Diaphragm kit Call for price 1 usually ships 19-39 days
13 241-5155 Check valve kit Call for price 1 usually ships 19-39 days
14 241-5156 Upper housing assembly kit Call for price 1 usually ships 19-39 days
15 241-5157 Pump screw kit Call for price 1 usually ships 19-39 days
N/S 241-5158 3/4 inch port kit Call for price 2 usually ships 19-39 days
