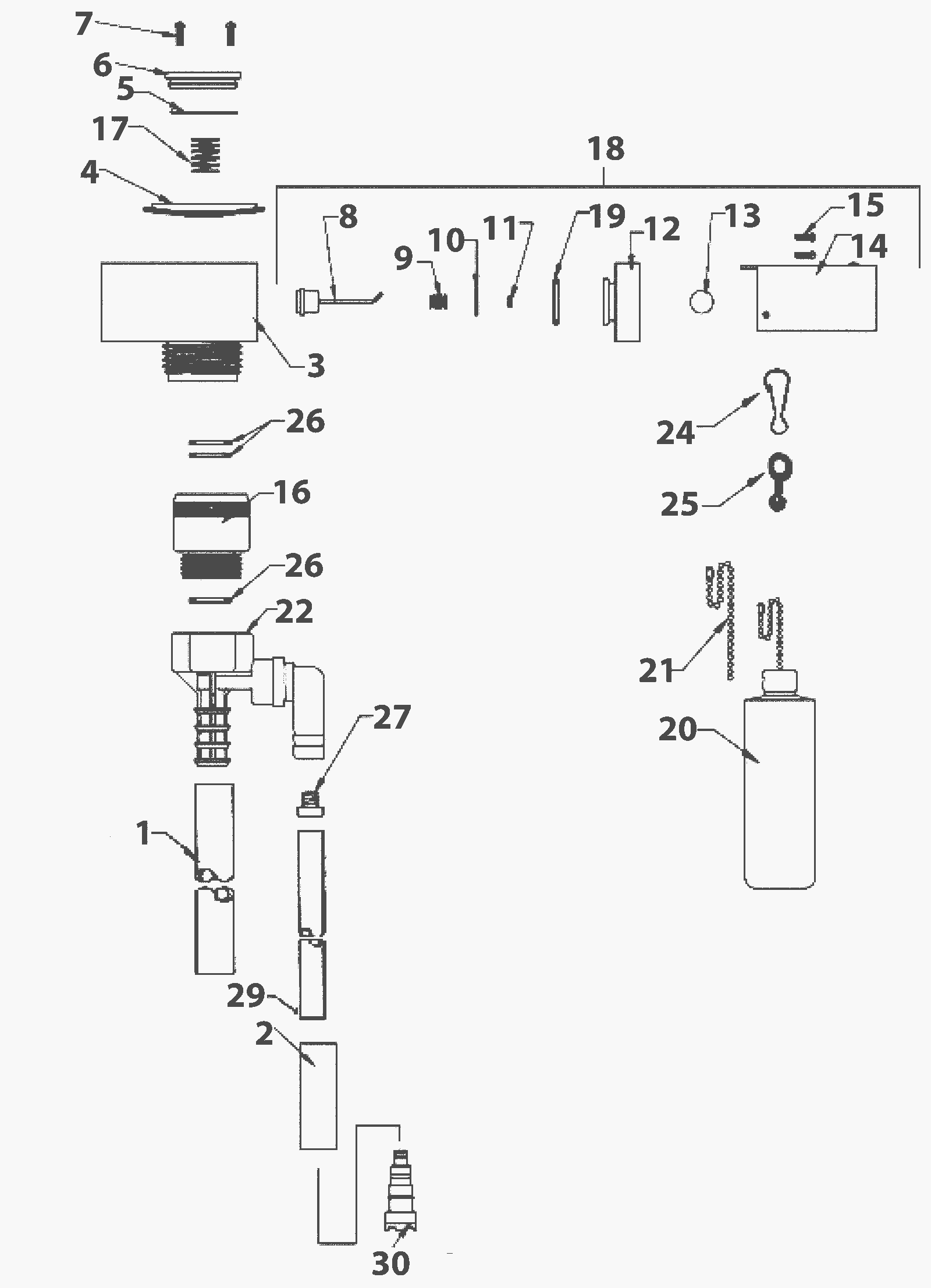

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
241-4054
|
3 inch discharge tubing |
1 |
|
|
2 |
241-5122
|
Inlet hose adapter |
1 |
|
|
3 |
241-5123
|
Body assembly |
1 |
|
|
4 |
241-5124
|
Diaphragm assembly |
1 |
|
|
5 |
241-5125
|
Valve cover o-ring |
1 |
|
|
6 |
241-5126
|
Valve cover |
1 |
|
|
7 |
241-5127
|
Valve cover screws |
2 |
|
|
8 |
241-5128
|
Pilot valve disc and stem assembly |
1 |
|
|
9 |
241-5129
|
Pilot valve spring |
1 |
|
|
10 |
241-5130
|
Pilot valve plate |
1 |
|
|
11 |
241-5131
|
Pilot valve stem o-ring |
1 |
|
|
12 |
241-5132
|
Pilot valve cover |
1 |
|
|
13 |
241-5133
|
Stem nut with set screw |
1 |
|
|
14 |
241-5134
|
Lever assembly |
1 |
|
|
15 |
241-5135
|
Lever assembly screws |
2 |
|
|
16 |
241-5136
|
Backflow preventer |
1 |
|
|
17 |
241-5137
|
Closing spring |
1 |
|
|
18 |
241-5138
|
Pilot valve assembly |
1 |
(includes 9-15, 19) |
|
19 |
241-5139
|
Pilot valve cover o-ring |
1 |
|
|
20 |
241-5140
|
Float assembly |
1 |
|
|
21 |
241-4056
|
16 inch chain with connector |
1 |
|
|
22 |
241-4073
|
Proportioner |
1 |
|
|
23 |
241-4072
|
Ceramic weight |
1 |
|
|
24 |
241-4059
|
Snap clip |
1 |
|
|
25 |
241-5141
|
Connector |
1 |
|
|
26 |
241-4095
|
Gasket |
3 |
|
|
27a |
241-0176
|
Metering tip kit |
1 |
|
|
27b |
241-4082
|
Metering tip (turquoise) |
1 |
(specify size) |
|
29 |
241-4081
|
8 foot plastic tubing |
1 |
|
|
30 |
241-4080
|
Foot valve filter |
1 |
|
|
N/S |
241-5021
|
Male quick connect |
1 |
|
|
N/S |
241-5142
|
Elbow |
1 |
|
|
N/S |
999-6684
|
Washer 1/4 flat stainless steel |
2 |
|
|
N/S |
241-5143
|
Nipple |
1 |
|
|
N/S |
241-5144
|
Elbow |
1 |
|
|
N/S |
241-5145
|
Nautilus auto fill kit |
1 |
|
|
