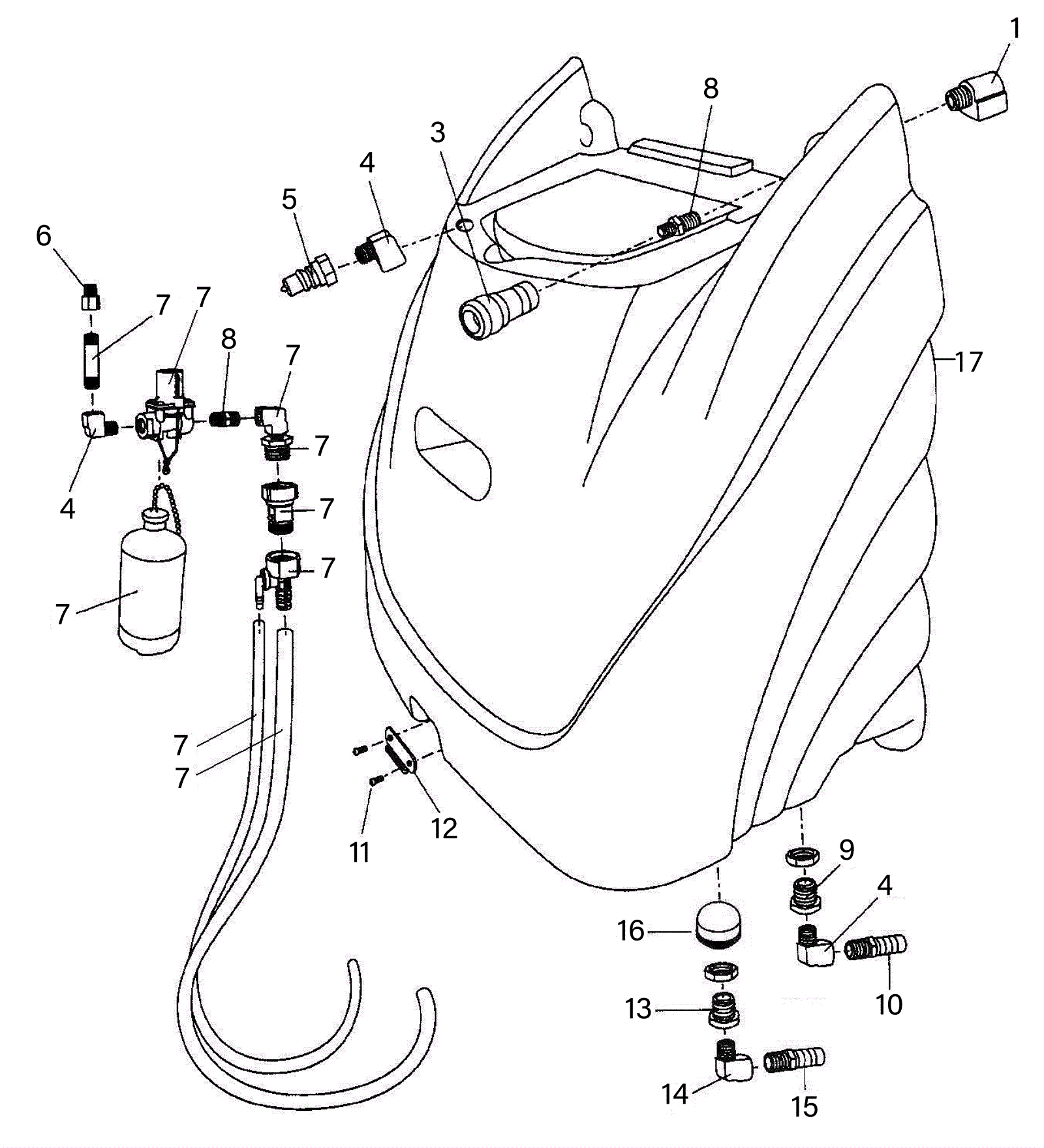

Solution Tank Assembly

#PartDescription ReqNotesAvailability
1 241-4085 90 degree elbow 1
3 241-5020 Female quick connect 1
4 241-4085 90 degree elbow 4
5 241-5021 Male quick connect 1
6 241-4086 Adapter 1
8 241-4087 Nipple 2
9 241-4088 Bulkhead fitting 1
10 241-4084 Barb 1
11 241-4090 Screw 2
12 241-4091 Latch hook 1
13 241-4131 Bulkhead fitting 1
14 241-4132 Elbow 1
15 241-4133 Barb 1
16 241-4134 Acorn strainer 1
17 241-5100 Solution tank 1
