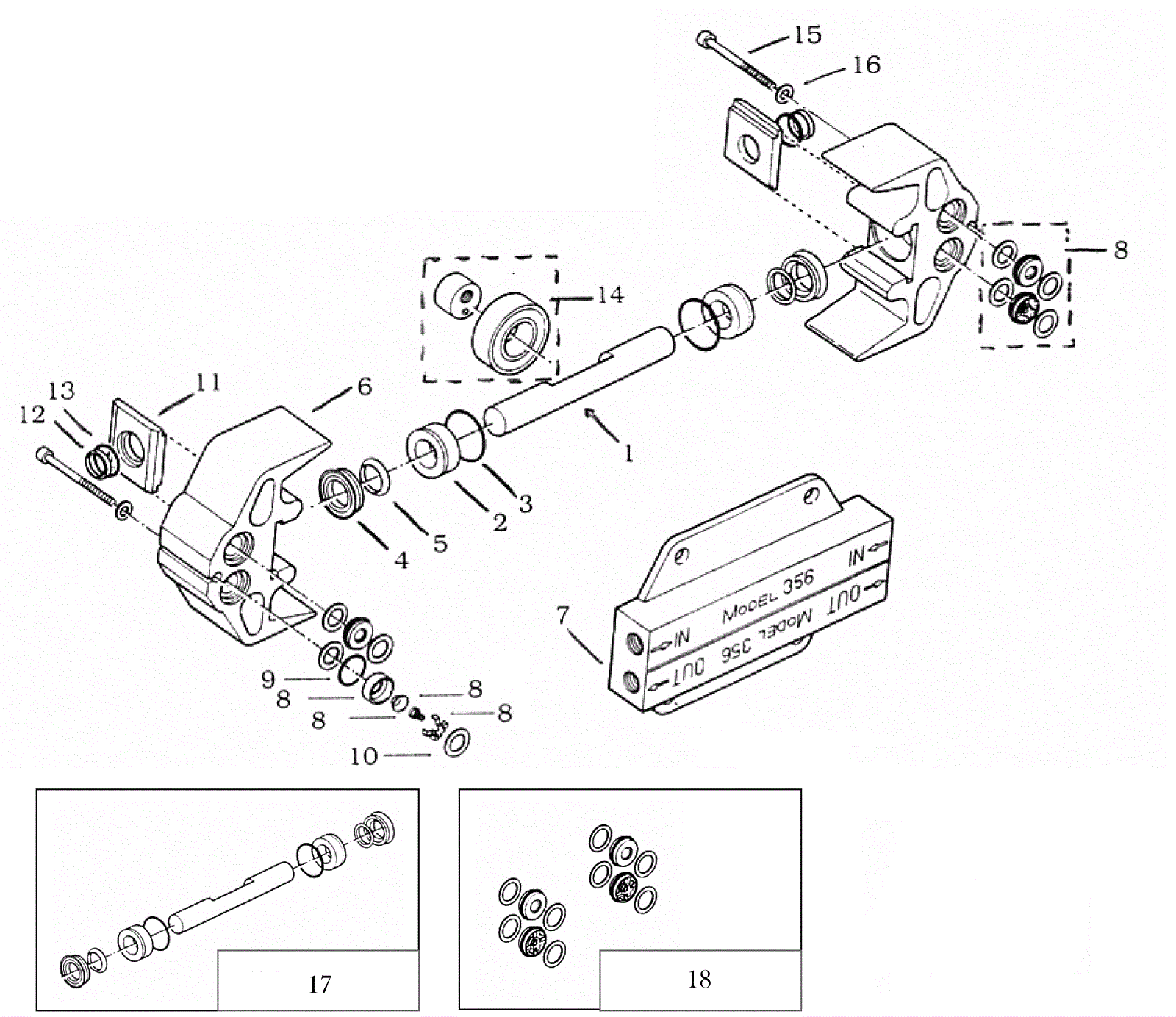

OLYMPUS M1200 Pump Assembly

#PartDescriptionPriceReqNotesAvailability
1 241-5047 Plunger Call for price 1 usually ships 1-5 days
2 241-5048 Plunger guide Call for price 2 usually ships 1-5 days
3 241-5049 O-ring Call for price 2 usually ships 1-5 days
4 241-5050 U-cup Call for price 2 usually ships 1-5 days
5 241-5051 U-cup backing ring Call for price 2 usually ships 1-5 days
6 241-5052 Pump head Call for price 2 usually ships 1-5 days
7 241-5053 Pump manifold Call for price 1 usually ships 1-5 days
8a 241-5054 Valve assembly $89.09 4 (includes 8b-8e) usually ships 10-26 days
8b 241-5055 Valve seat Call for price 4 usually ships 1-5 days
8c 241-5056 Valve poppet Call for price 4 usually ships 1-5 days
8d 241-5057 Valve spring Call for price 4 usually ships 1-5 days
8e 241-5058 Spring retainer Call for price 4 usually ships 1-5 days
9 241-5059 O-ring Call for price 4 usually ships 1-5 days
10 241-5060 Spacer ring (plastic) Call for price 8 usually ships 1-5 days
11 241-5061 Guide and vacuum seal retainer Call for price 2 usually ships 1-5 days
12 241-5062 Vacuum seal Call for price 2 usually ships 1-5 days
13 241-5063 O-ring Call for price 2 usually ships 1-5 days
14a 241-5064 Bearing assembly Call for price 1 (includes eccentric insert and bearing) usually ships 1-5 days
14b 241-5065 Eccentric insert Call for price 1 usually ships 1-5 days
14c 241-5066 Bearing Call for price 1 usually ships 1-5 days
15 241-5067 Screw socket head cap Call for price 2 usually ships 1-5 days
16 241-5068 Washer Call for price 2 usually ships 1-5 days
