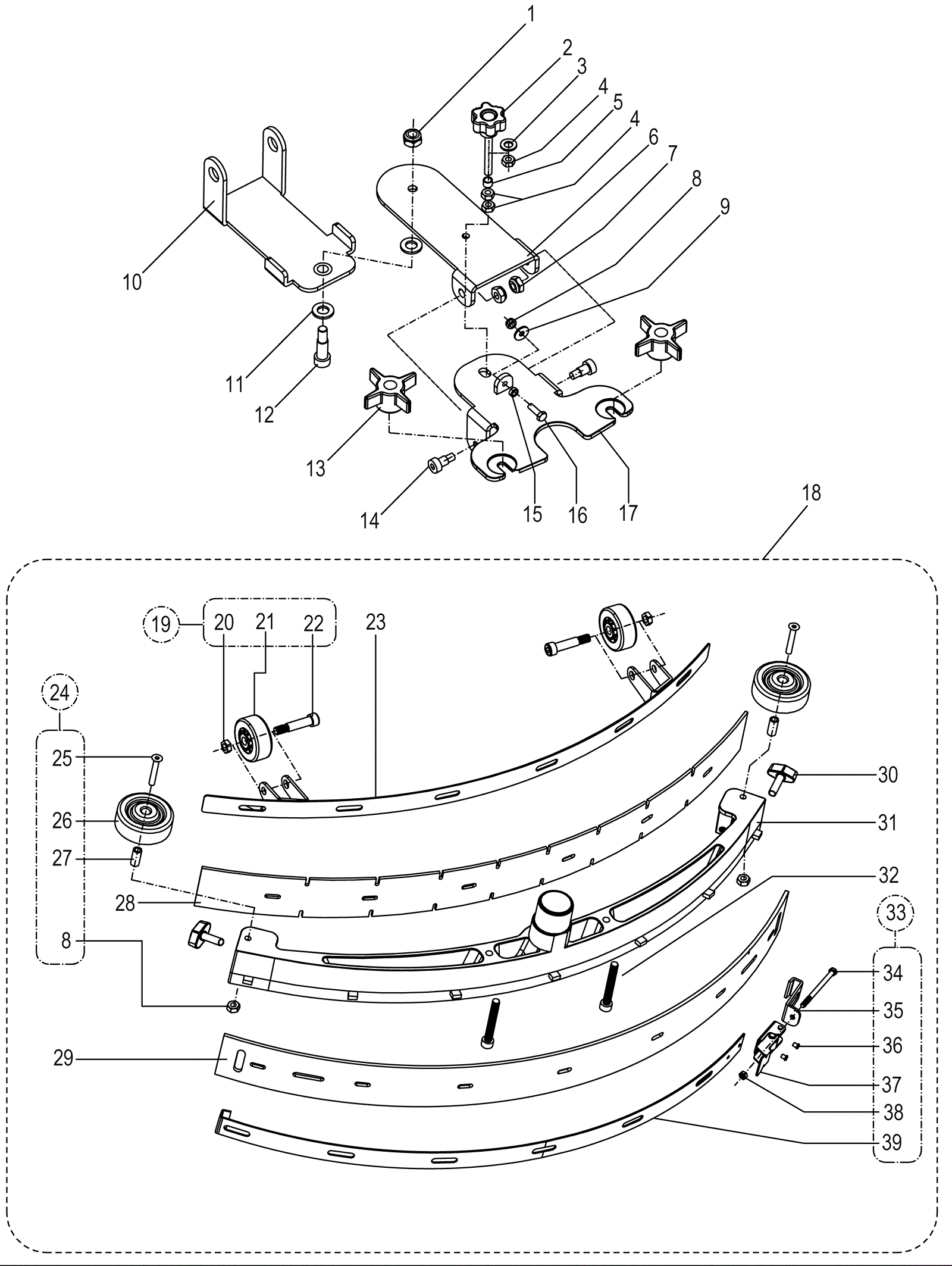

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
240-2125
|
Nut M10 lock |
1 |
|
|
2 |
240-2115
|
Knob M8 x 55mm |
1 |
|
|
3 |
240-5375
|
WASHER 8.4X 18X 2 |
1 |
|
|
4 |
240-2118
|
Nut M8 |
3 |
|
|
5 |
240-6074
|
SPACER |
1 |
|
|
6 |
240-6063
|
BACK-SQUEEGEE-SUPPORT |
1 |
|
|
7 |
240-2120
|
Nut M8 lock |
2 |
|
|
8 |
999-9131
|
Nut M6 x 1 nylon lock stainless steel |
3 |
|
|
9 |
999-1261
|
Washer M6 flat stainless steel |
1 |
|
|
10 |
240-6064
|
FRONT-SQUEEGEE-SUPPORT |
1 |
|
|
11 |
240-2114
|
Washer |
2 |
|
|
12 |
240-6073
|
SCREW SHOULDER |
1 |
|
|
13 |
240-0532
|
Knob M8 |
2 |
|
|
14 |
240-2121
|
Screw M8 x 10 x 11.5mm shoulder |
2 |
|
|
15 |
240-0513
|
Bushing |
1 |
|
|
16 |
240-0357
|
Screw M6 x 20mm |
1 |
|
|
17 |
240-6062
|
SQUEEGEE-SUPPORT |
1 |
|
|
18 |
240-6075
|
17 IN SQUEEGEE KIT |
1 |
(includes 8, 19-39) |
|
19 |
240-1148
|
Squeegee Roll Wheel Kit |
2 |
(includes 20-22) |
|
20 |
240-0348
|
Nut 5/16 locking |
2 |
|
|
21 |
240-0524
|
2 inch wheel |
2 |
|
|
22 |
240-0523
|
Bolt M9.5 x 31.5mm shoulder |
2 |
|
|
23 |
240-6057
|
17 IN STRAP-SQUEEGEE FRONT |
1 |
|
|
24 |
240-2279
|
Bumper roller wheel kit |
2 |
(includes 8, 25-27) |
|
25 |
240-5430
|
SCREW-SHOULDER M6X40 |
2 |
|
|
26 |
240-5922
|
BUMPER ROLLER |
2 |
|
|
27 |
240-5923
|
SPACER |
2 |
|
|
28 |
240-6058
|
17 inch front blade |
1 |
|
|
29 |
240-6059
|
17 inch rear blade |
1 |
|
|
30 |
240-2143
|
Thumb screw |
2 |
|
|
31 |
240-6056
|
SQUEEGEE 17 IN |
1 |
|
|
32 |
240-6070
|
SQUEEGEE SCREW |
2 |
|
|
33 |
240-6077
|
17 IN STRAP-SQUEEGEE BACK KIT |
1 |
(includes 34-39) |
|
34 |
240-2119
|
Screw M5 x 60mm |
1 |
|
|
35 |
240-6069
|
HOOK |
1 |
|
|
36 |
240-0521
|
Rivet M4 x 5mm |
2 |
|
|
37 |
240-5786
|
LATCH HOOD |
1 |
|
|
38 |
240-0522
|
Nut M5 lock |
1 |
|
|
39 |
240-6060
|
17 IN STRAP-SQUEEGEE BACK |
1 |
|
|
