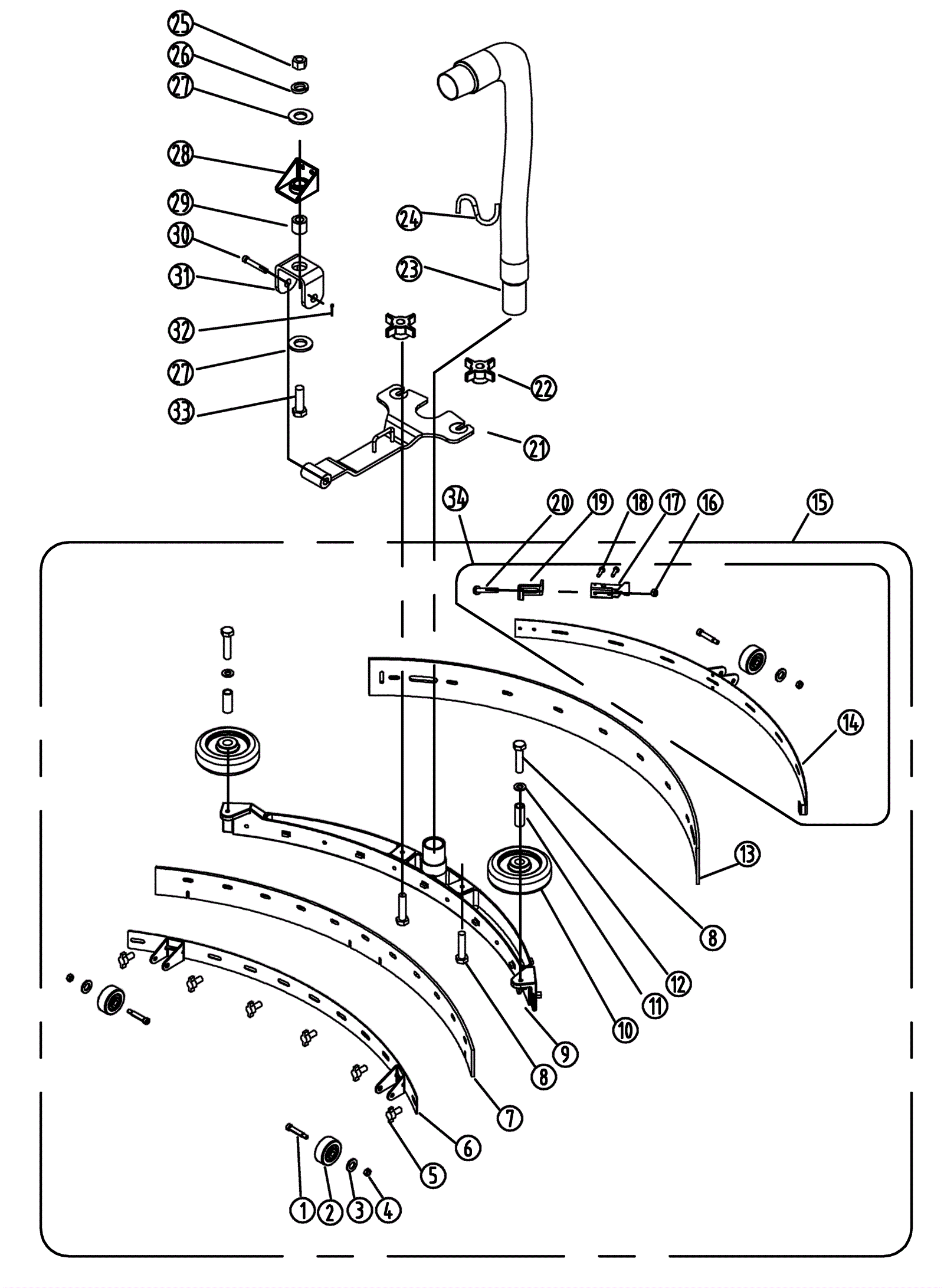

FANG 18C Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
1 240-0523 Bolt M9.5 x 31.5mm shoulder $14.91 3 usually ships 17-28 days
2 240-0524 2 inch wheel $13.17 3 ships same day
3 240-0329 Washer M8 plain finish $9.98 3 usually ships 17-28 days
4 240-0348 Nut 5/16 locking $9.98 3 usually ships 17-28 days
5 240-0528 Knob M6 $9.98 6 ships same day
6 240-0527 Front squeegee backup strip $29.52 1 usually ships 17-28 days
7 240-0323 Squeegee blade urethane front $45.11 1 ships same day
8 240-0361 Bolt M8 x 40mm $9.98 4 usually ships 17-28 days
9 240-0517 Squeegee weldment $189.09 1 usually ships 17-28 days
10 240-0468 Wheel $19.67 2 ships same day
11 240-0469 Bushing $9.98 2 usually ships 17-28 days
12 240-0394 Washer M8 plain finish $9.98 2 usually ships 17-28 days
13 240-0324 Squeegee blade urethane rear $43.70 1 ships same day
14 240-0525 Rear squeegee backup strip $29.52 1 usually ships 17-28 days
15 240-0533 Squeegee assembly $336.69 1 (includes 1-14, 16-20, and 34) ships same day
16 240-0522 Nut M5 lock $8.53 1 ships same day
17 240-0518 Hood latch $19.67 1 usually ships 17-28 days
18 240-0521 Rivet M4 x 5mm $9.98 2 usually ships 17-28 days
19 240-5848 TUBING 172 MM $8.53 1 usually ships 17-28 days
20 240-2119 Screw M5 x 60mm $9.98 1 usually ships 17-28 days
21 240-5771 BRACKET SQ. MOUNT $69.01 1 usually ships 17-28 days
22 240-0532 Knob M8 $14.91 2 ships same day
23 240-5772 Hose $21.42 1 ships same day
24 240-0514 U hose holder $13.17 1 usually ships 17-28 days
25 240-0766 Nut M12 $9.98 1 usually ships 17-28 days
26 240-0511 Washer M12 lock $9.98 1 usually ships 17-28 days
27 240-6398 WASHER PLAIN 13 X 3 X 3 $9.98 2 usually ships 17-28 days
28 240-5685 CONNECTOR $16.79 1 usually ships 17-28 days
29 240-5774 BUSHING $21.42 1 usually ships 17-28 days
30 240-5396 PIN 12 X 70 $9.98 4 usually ships 17-28 days
31 240-5773 FRAME U SHAPE $14.09 1 usually ships 17-28 days
32 240-5397 PIN 4 $9.98 1 usually ships 17-28 days
33 240-5077 BOLT M12 X 40 $9.98 1 usually ships 17-28 days
34 240-0526 Backup strip assembly $71.18 1 usually ships 17-28 days
