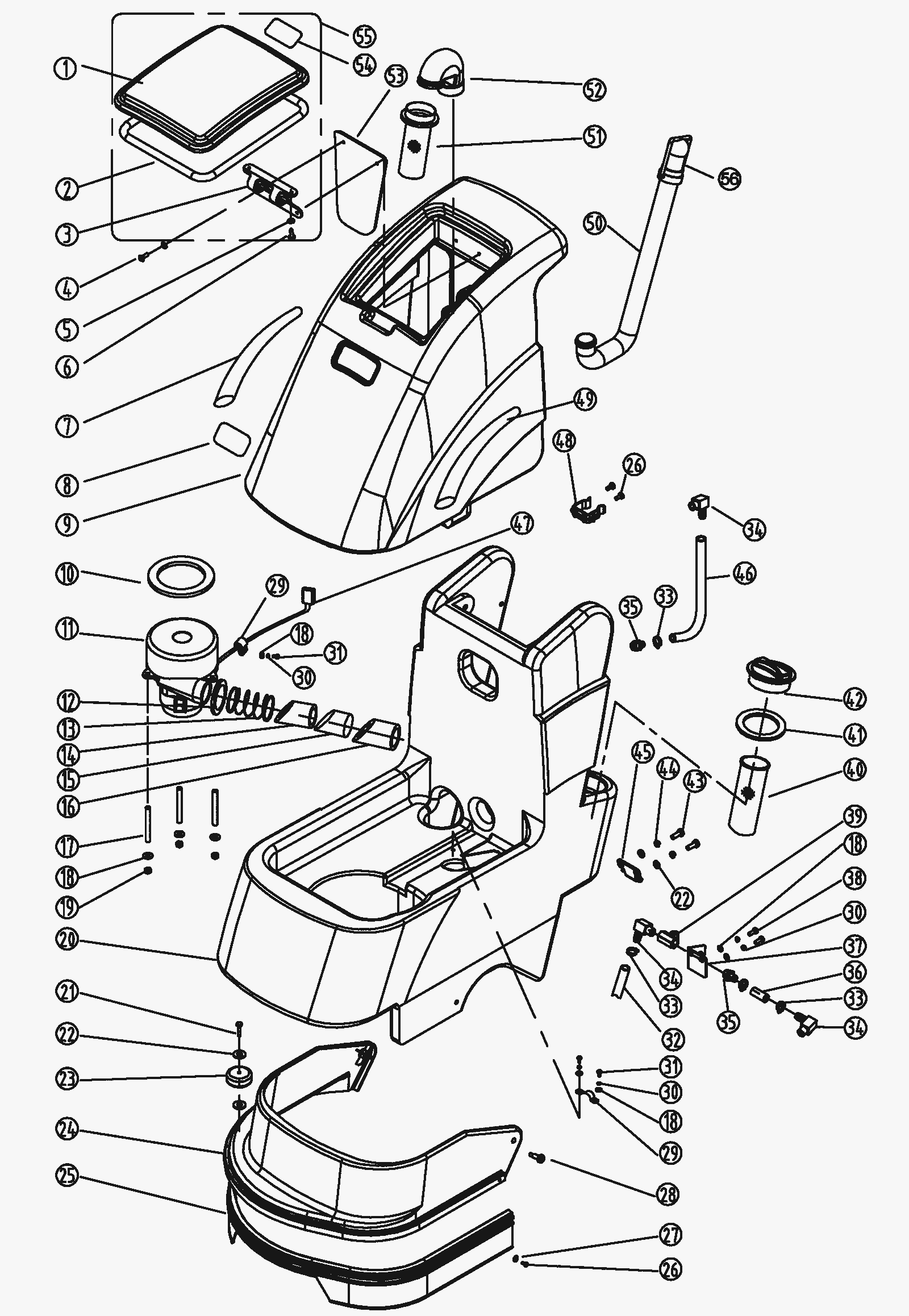

FANG 18C Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 240-0753 Recovery tank lid kit $60.76 1 ships same day
2 240-1012 Recovery lid gasket $11.57 1 ships same day
3 240-0464 Rubber hinge $18.08 1 ships same day
4 240-0393 Screw M4 x 12mm $6.36 2 ships same day
5 999-9089 Washer M4 flat stainless steel $0.99 4 ships same day
6 240-0462 Screw M4 x 16mm self-tapping $9.98 2 ships same day
7 240-5753 MODEL DECAL RIGHT $18.29 1 usually ships 16-41 days
8 240-5744 VIPER LOGO FANG18C $9.98 1 usually ships 16-41 days
9 240-5727 RECOVERY TANK -FANG 18C- $327.71 1 usually ships 16-41 days
10 240-0459 Vacuum motor gasket $11.57 1 ships same day
11 240-1125 Vacuum motor $319.59 1 usually ships 16-41 days
12 240-6385 CABLE TIES 4MM X 20MM $9.98 3 usually ships 16-41 days
13 240-5757 SPRING $9.98 1 usually ships 16-41 days
14 240-5762 SPONGE EXHAUST $9.98 1 usually ships 16-41 days
15 240-5764 COVER PLASTIC $9.98 1 usually ships 16-41 days
16 240-5763 COVER HEAT RESISTANT $8.53 1 usually ships 16-41 days
17 240-0457 Stud $9.98 3 usually ships 16-41 days
18 999-1261 Washer M6 flat stainless steel $0.99 7 ships same day
19 240-0038 Nut M6 $9.98 3 usually ships 16-41 days
20 240-5726 SOLUTION TANK FANG 18C $705.19 1 usually ships 16-41 days
21 240-0361 Bolt M8 x 40mm $9.98 1 usually ships 16-41 days
22 240-0394 Washer M8 plain finish $9.98 4 usually ships 16-41 days
23 240-0468 Wheel $19.67 1 ships same day
24 240-5733 SKIRT $26.20 1 usually ships 16-41 days
25 240-5740 BUMPER $26.20 1 usually ships 16-41 days
26 999-1986 Screw M5-.8 x 14mm pan head phillips $0.99 8 ships same day
27 240-6392 WASHER PLAIN 05 X 9.5 X .8 $9.98 6 usually ships 16-41 days
28 240-5761 SCREW SHOULDER .010 X 16 XM8 (OBSOLETE) $8.53 2 usually ships 16-41 days
29 240-2008 P clamp $8.53 1 usually ships 1-5 days
30 240-0411 Washer M6 locking $9.98 4 usually ships 16-41 days
31 240-0377 Screw M6 x 16mm $9.98 4 usually ships 16-41 days
32 240-5760 HOSE INLET FILTER $9.98 1 usually ships 16-41 days
33 240-0987 Clamp $9.98 4 usually ships 1-5 days
34 240-0487 Solution tank elbow $23.01 3 usually ships 16-41 days
35 240-5735 HOSE BARB $11.57 3 usually ships 16-41 days
36 240-5759 HOSE $9.98 1 usually ships 16-41 days
37 240-5741 MOUNTING PLATE BALL VALVE $11.25 1 usually ships 16-41 days
38 999-1383 Screw M6-1 x 16mm hex head stainless steel $3.96 2 ships same day
39 240-5766 BALL VALVE $21.42 1 ships same day
40 240-0799 Intake filter $21.42 1 usually ships 16-41 days
41 240-5731 SEAL $9.98 1 usually ships 16-41 days
42 240-5729 FILL $16.50 1 usually ships 16-41 days
43 240-0349 Screw M8 x 20mm $9.98 2 usually ships 16-41 days
45 240-5765 SQUEEGEE CLAMP $9.42 1 usually ships 16-41 days
46 240-5758 SOLUTION HOSE $9.98 1 usually ships 16-41 days
47 240-5487 CORD HANDLE SJT 14/3C FOR 120V $16.50 1 usually ships 16-41 days
48 240-0616 Drain hose clamp $9.98 1 ships same day
49 240-5749 MODEL LABEL LEFT $16.28 1 usually ships 16-41 days
50 240-0188 Drain hose $20.34 1 ships same day
51 240-0445 Float $29.52 1 usually ships 16-41 days
52 240-2034 Bend (OBSOLETE) $16.81 1 usually ships 16-41 days
53 240-5756 SCREEN (OBSOLETE) $8.73 1 usually ships 16-41 days
54 240-2039 Warning decal $11.25 1 usually ships 1-5 days
55 240-0753 Recovery tank lid kit $60.76 1 (includes 1-3, and 54) ships same day
56 240-0551 Drain hose plug $9.98 1 ships same day
57 240-5796 UNION ELBOW $5.50 2 ships same day
