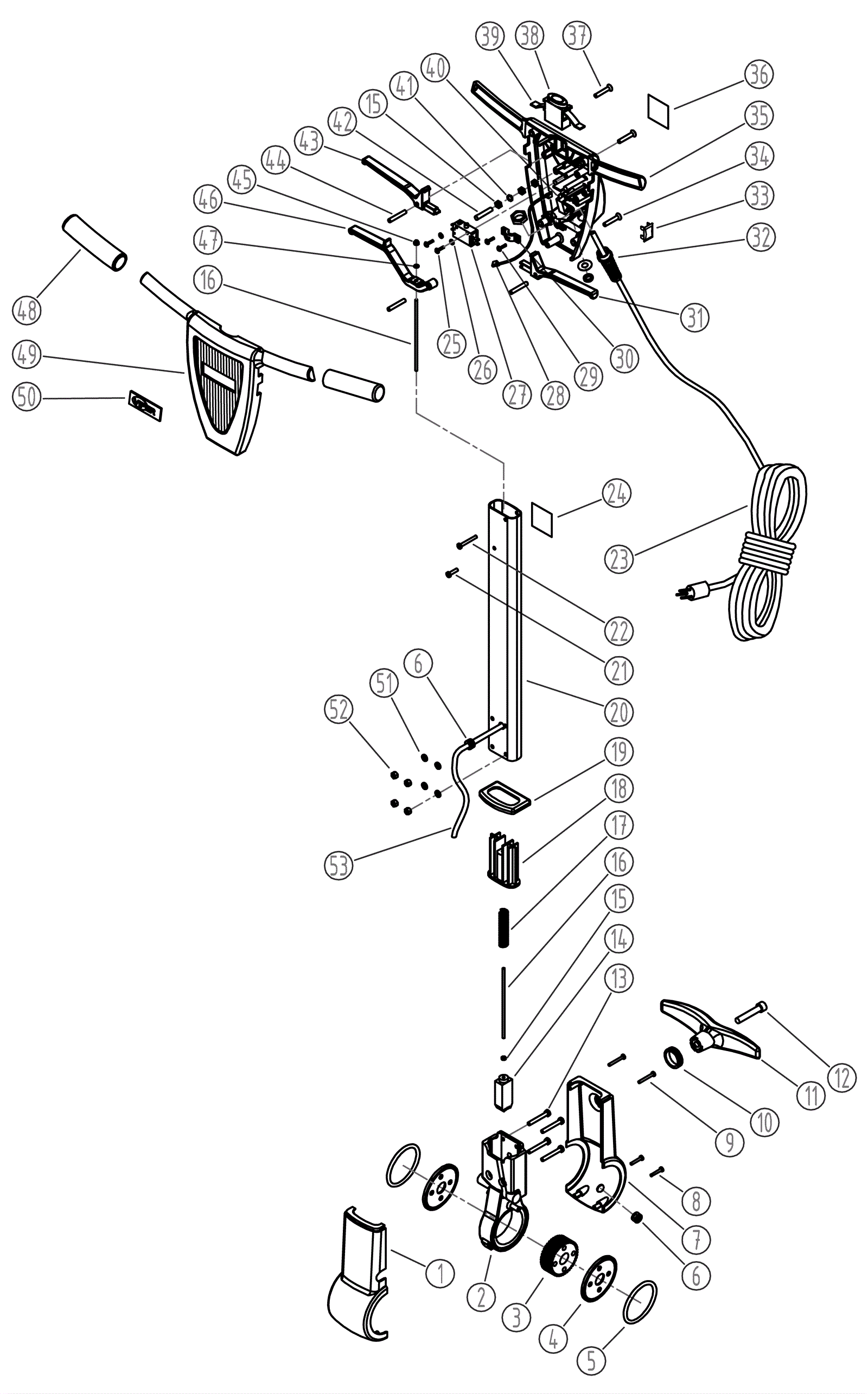

UHS 2000DC Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1 240-0014 Gear seat front cover $14.51 1 usually ships 1-5 days
2 240-5659 GEAR SEAT $56.35 1 usually ships 16-41 days
3 240-0016 Gear kit (includes gear and leveling insert) $74.24 1 usually ships 1-5 days
4 240-0017 Nylon washer $9.71 2 usually ships 16-41 days
5 240-0018 Gear seat o-ring $12.83 2 usually ships 1-5 days
6 240-5605 Grommet $9.71 2 usually ships 16-41 days
7 240-0020 Rear seat cover $14.51 1 usually ships 1-5 days
8 240-0021 Screw M4 x 25mm self tapping $9.71 2 usually ships 1-5 days
9 240-0022 Screw M4 x 30mm self tapping $7.37 2 usually ships 1-5 days
10 240-0023 Hook seal $9.71 1 usually ships 1-5 days
11 240-5541 HOOK CABLE $14.51 1 usually ships 16-41 days
12 240-0025 Screw M10 x 55mm hex head $9.71 1 usually ships 1-5 days
13 240-0092 Screw M6 x 45mm $9.71 4 usually ships 1-5 days
14 240-0016 Gear kit (includes gear and leveling insert) $74.24 1 usually ships 1-5 days
15 240-0028 Nut M4 $9.71 4 usually ships 1-5 days
16 240-0029 Leveling rod $9.71 1 usually ships 1-5 days
17 170-8423 Compression spring $9.71 1 usually ships 16-41 days
18 272-7568 Retainer $9.71 1 usually ships 1-5 days
19 240-0032 Tube seal $9.71 1 usually ships 1-5 days
20 240-0094 Tube $44.79 1 usually ships 16-41 days
21 240-0067 Screw M5 x 16mm $9.71 1 usually ships 16-41 days
22 240-0095 Screw M5 x 40mm $9.71 1 usually ships 1-5 days
23 240-0105 14/3 power cord $94.53 1 ships same day
24 240-5662 SERIAL TAG FOR DR2000DC $8.12 1 usually ships 16-41 days
26 240-0100 Internal tooth lock washer $9.71 2 usually ships 16-41 days
27 240-0008 On/Off switch $35.37 1 usually ships 16-41 days
28 240-5490 Jump wire $9.71 1 usually ships 16-41 days
29 240-6391 SCREW M4X10 $9.71 2 usually ships 16-41 days
30 240-0103 Handle cable block $9.71 1 usually ships 16-41 days
31 240-0107 Left switch trigger $16.07 1 usually ships 16-41 days
32 240-0106 Strain relief $20.86 1 ships same day
33 240-5626 COVER SOLUTION LEVER $12.83 1 usually ships 16-41 days
34 240-0108 Screw M6 x 35mm $9.71 2 usually ships 1-5 days
35 240-0109 Rear cover switch housing $132.86 1 usually ships 16-41 days
36 240-5656 Dry burnish decal $12.83 1 usually ships 16-41 days
37 240-0111 Screw M6 x 40mm $9.71 2 ships same day
38 240-0112 Safety block $9.71 1 usually ships 16-41 days
39 240-0183 Safety block spring $9.71 1 usually ships 16-41 days
40 240-0115 Circuit breaker $16.50 1 ships same day
41 240-0116 Washer M4 external tooth $9.71 1 usually ships 1-5 days
42 240-0117 Screw M4 x 30mm hex socket $9.71 1 usually ships 1-5 days
43 240-0010 Right switch lever $16.07 1 usually ships 16-41 days
44 240-0118 Lever pin $9.71 3 usually ships 16-41 days
45 240-0119 Nut M4 Nylon insert $9.71 1 usually ships 16-41 days
46 240-0009 Leverling handle $23.95 1 usually ships 16-41 days
47 240-0120 Washer M4 x 16mm large plain $9.71 1 usually ships 1-5 days
48 240-0121 Handle grip $16.07 2 usually ships 16-41 days
49 240-0122 Front cover switch housing $89.61 1 usually ships 16-41 days
50 240-0123 Viper logo decal $9.71 1 usually ships 16-41 days
51 240-0037 Washer $9.71 4 ships same day
52 240-0038 Nut M6 $9.71 4 usually ships 16-41 days
53 240-0039 Handle cable $9.71 1 usually ships 16-41 days
